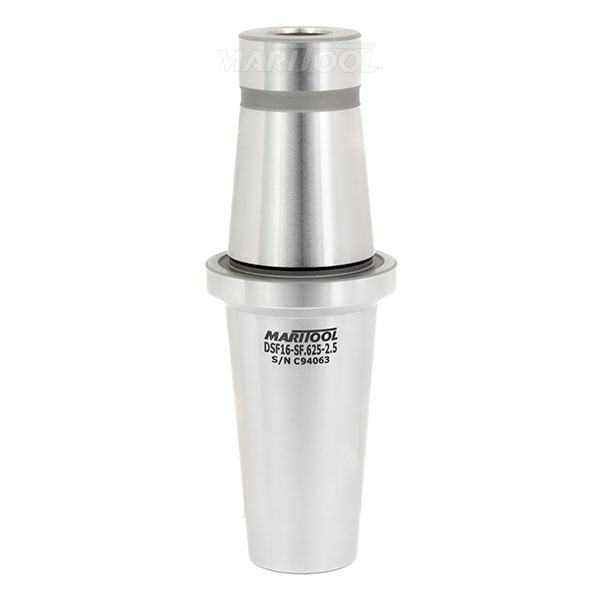

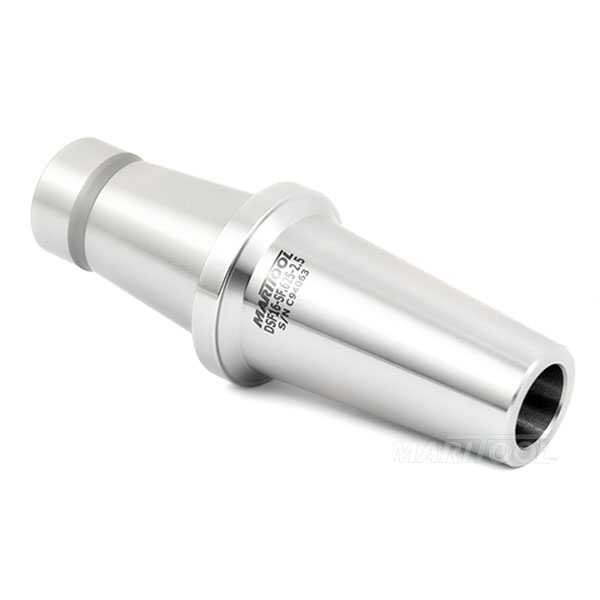

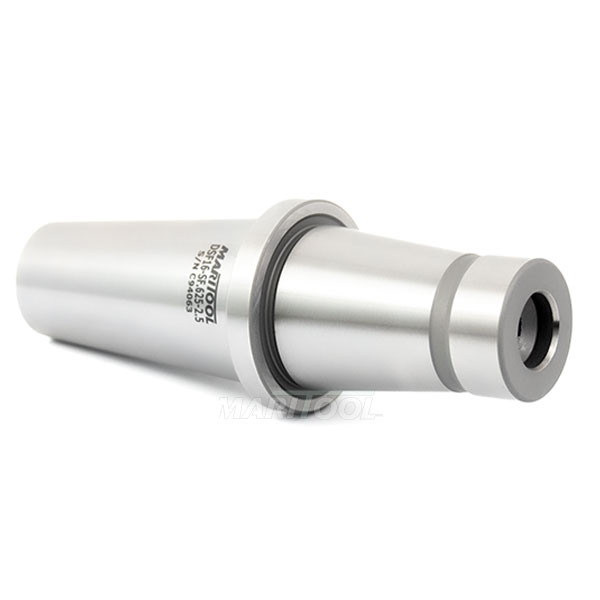

DSF16 5/8 Dual Contact Collet Extension Modular Type .625-2.5 $135.95
DSF16 5/8 Dual Contact Collet Extension Modular Type .625-2.5
Click to enlarge

DSF16 5/8 Dual Contact Collet Extension Modular Type .625-2.5
Click to enlarge 		DSF16 5/8 Dual Contact Collet Extension Modular Type .625-2.5
Click to enlarge
DSF16 5/8 Dual Contact Collet Extension Modular Type .625-2.5
Click to enlarge
Item No. DSF16-SF.625-2.5
Price: $135.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for DSF16-SF.625-2.5
DXF file  PDF file  DWG file
Product Info

View complete catalog page

  • This Shrink Fit Tool Holder accepts all .625 shank tooling
  • Works on all DSF16 master tool holders
  • Click Here to view all DSF16 master tool holders
  • Dual contact type interface, superior than other modular tool holder interfaces
  • All critical tool holder surfaces precision ground
  • Made from hardened H-13 alloy steel
  • Gage length is 2.5 inches
  • Gage length of this collet must be added to gage length of master tool holder for final gage length of your assembly
  • Concentricity is less than .0001
  • Rear thread for M10 x 1.5 drawbolt (included with master tool holder)
  • Coolant thru capable, collet and drawbolt have a hole thru
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is DSF16-SF.625-2.5
Product Specifications
Concentricity:  .0001
Gage Length:  2.5
Material:  Hardened H-13 Alloy Steel
Shank Size:  .625
Taper:  DSF16
