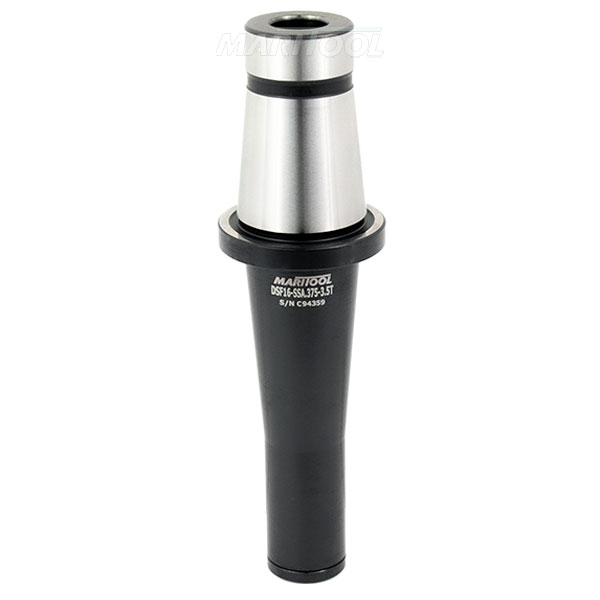

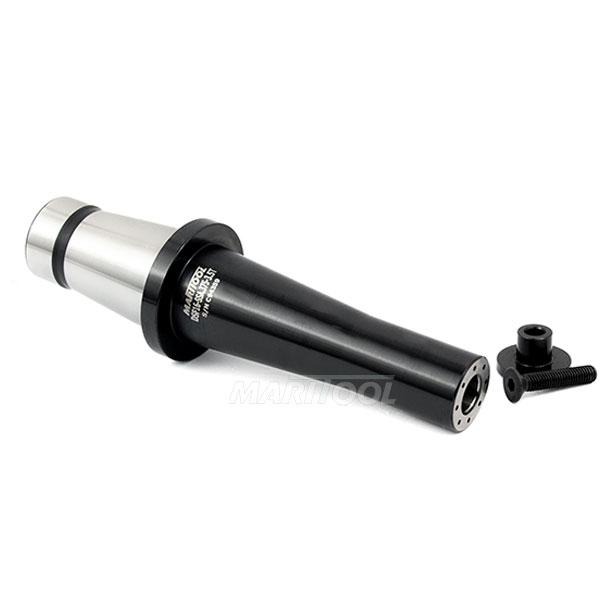

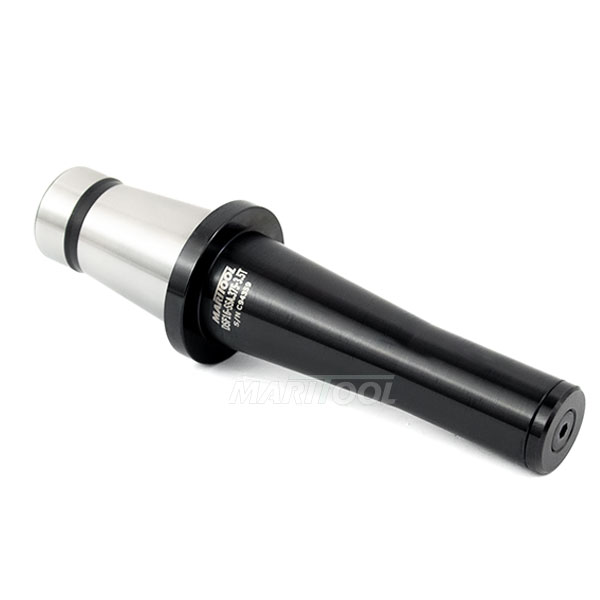

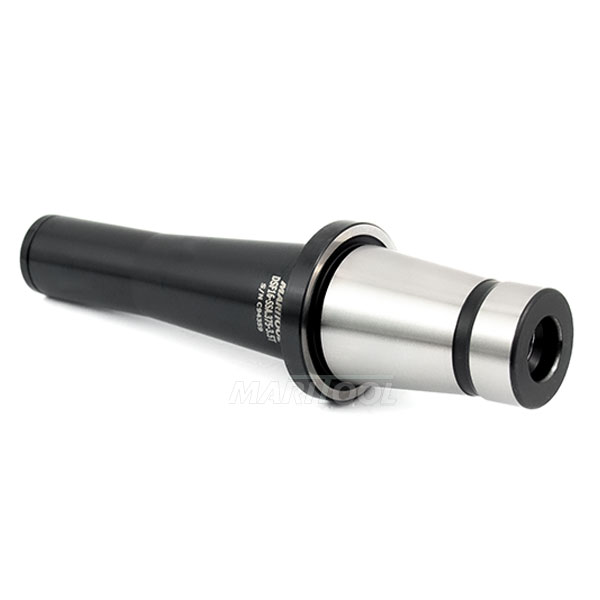

• Keyless slitting saw holder, for saws with .375" arbor hole
• Works on all DSF16 master tool holders
• Click Here to view all DSF16 master tool holders
• Dual contact type interface, superior than other modular tool holder interfaces
• All critical surfaces precision ground
• Made from hardened alloy steel
• Gage length is 3.5 inches
• Concentricity is less than .0001 at arbor hole
• End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
• Screw for cap is 10-32 X 1-1/4 long
• Saw cap is .140 thick and .3749 diameter boss is .325 long
• Replacement cap is available SSA.375-cap
• Nose dia and saw cap is .790 Inches diameter
• Rear thread for M10 x 1.5 drawbolt (included with master tool holder)
• Coolant thru capable, collet and drawbolt have a hole thru
• MariTool Part# is DSF16-SSA.375-3.5T
