CAT50 Dual Contact DSF16 Modular Type Tool Holder 3.0 Inch Gage $270.20

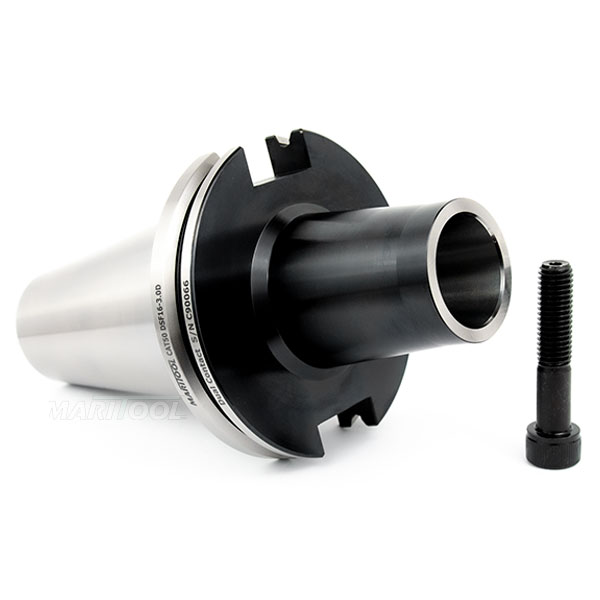

CAT50 Dual Contact DSF16 Modular Type Tool Holder 3.0 Inch Gage
Click to enlarge

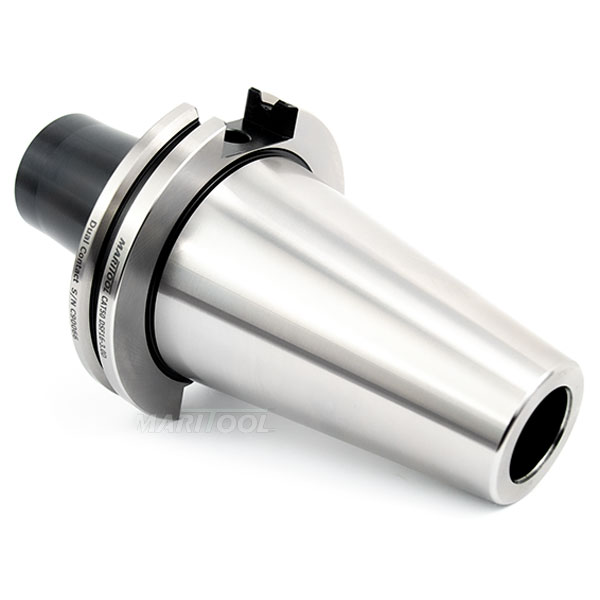

CAT50 Dual Contact DSF16 Modular Type Tool Holder 3.0 Inch Gage

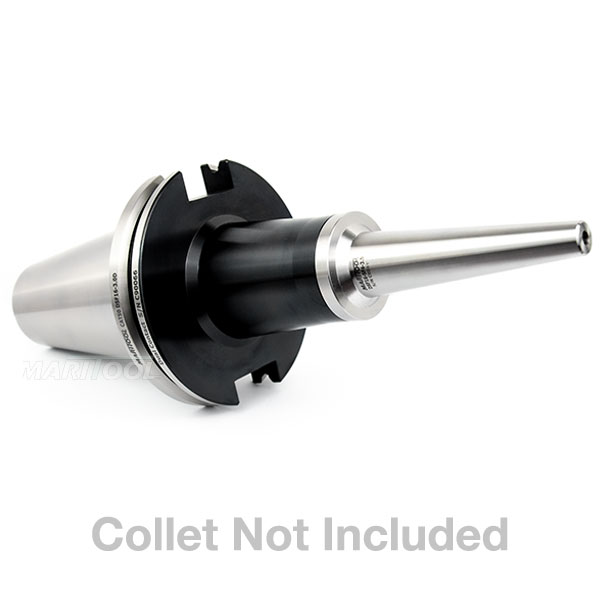

Click to enlarge 		CAT50 Dual Contact DSF16 Modular Type Tool Holder 3.0 Inch Gage
Click to enlarge

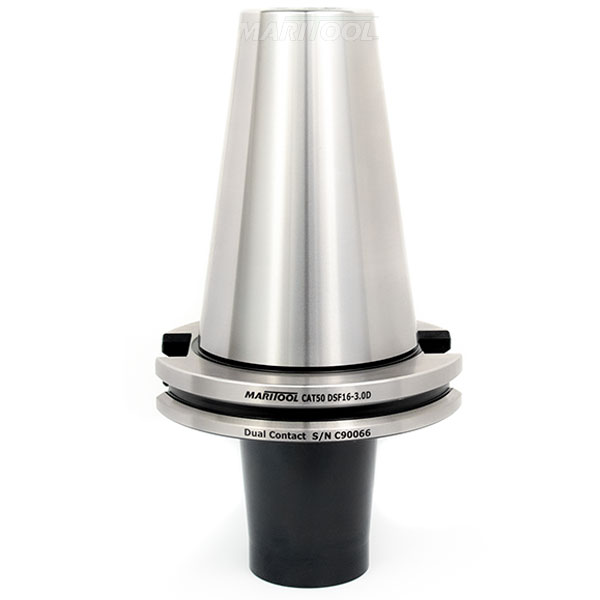

CAT50 Dual Contact DSF16 Modular Type Tool Holder 3.0 Inch Gage
Click to enlarge
Item No. CAT50-DSF16-3.0D
Price: $270.20
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT50-DSF16-3.0D
PDF file  DXF file  DWG file
Product Info

View complete catalog page

  • Works on all CAT50 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • All critical surfaces precision ground
  • Made from hardened alloy steel
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.0 inches
  • Concentricity .0001 inches or less
  • Will accept all DSF16 modular tool holders
  • DSF16 collets are available here
  • Rear clamping screw for tightening the DSF16 collets is included
  • Tool holder and DSF16 collets are coolant thru compatible
  • Rear thread for pull stud is 1" X 8
  • MariTool Part# is CAT50-DSF16-3.0D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp. and is used only for identification purposes.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Size:  DSF16
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Rear Thread:  1" X 8
Taper:  CAT50 Dual Contact
