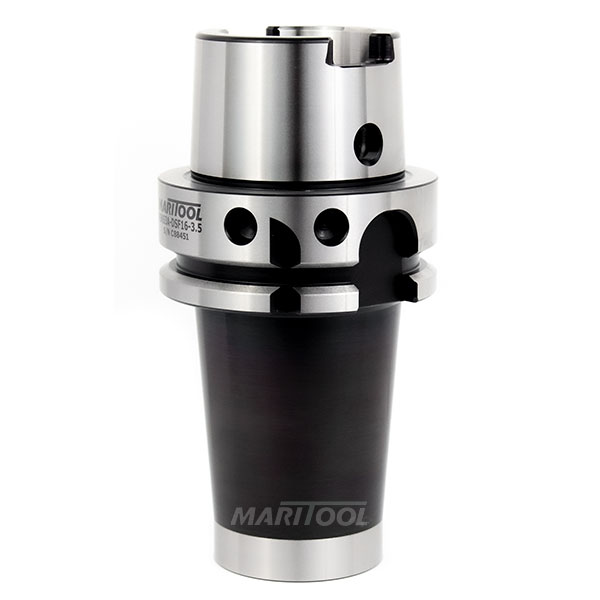

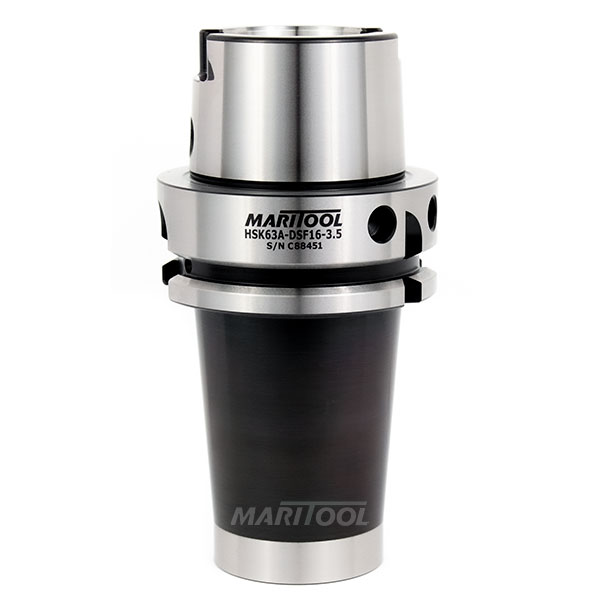

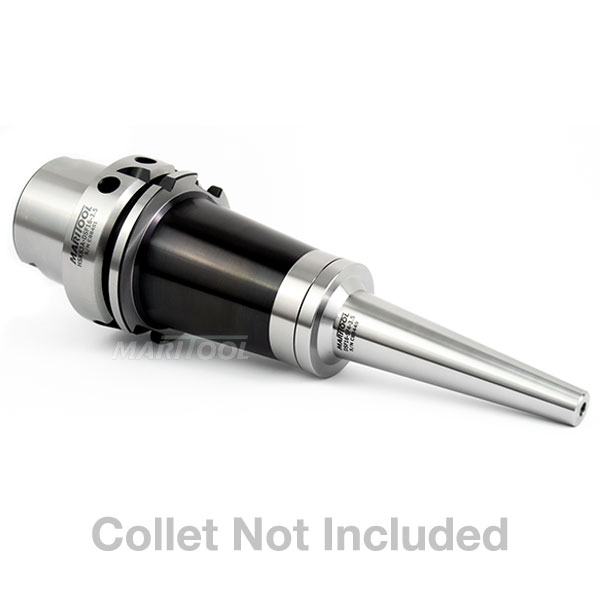

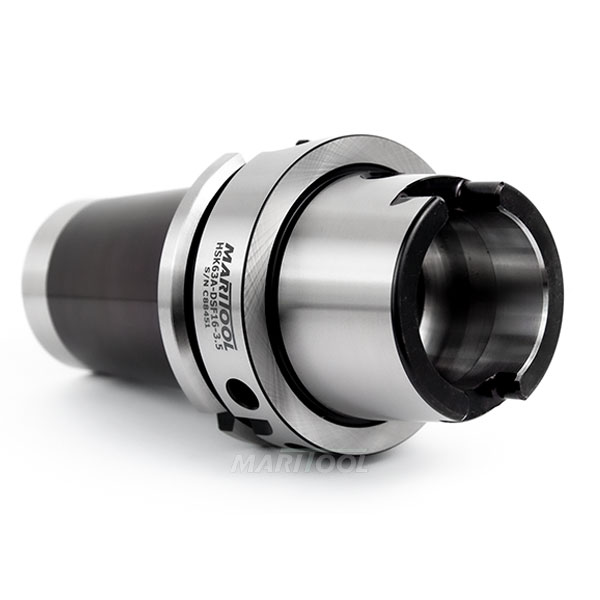

HSK63A DSF16 Modular Type Tool Holder 3.5 Inch Gage $256.20
HSK63A DSF16 Modular Type Tool Holder 3.5 Inch Gage
Click to enlarge

HSK63A DSF16 Modular Type Tool Holder 3.5 Inch Gage
Click to enlarge 		HSK63A DSF16 Modular Type Tool Holder 3.5 Inch Gage
Click to enlarge
HSK63A DSF16 Modular Type Tool Holder 3.5 Inch Gage
Click to enlarge 		HSK63A DSF16 Modular Type Tool Holder 3.5 Inch Gage
Click to enlarge
Item No. HSK63A-DSF16-3.5
Price: $256.20
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK63A-DSF16-3.5
PDF file  DXF file  DWG file
Product Info

View complete catalog page

  • Works on all HSK63A machines
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Balanced to G2.5 at 25,000 rpms
  • Gage length is 3.5 inches
  • Concentricity .0001 inches or less
  • Will accept all DSF16 modular tool holders
  • DSF16 collets are available here

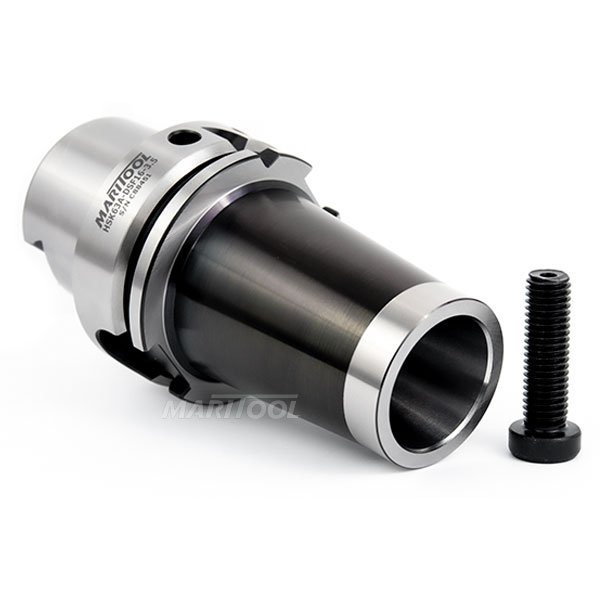

  • Rear clamping screw for tightening the DSF16 collets is included
  • Tool holder and DSF16 collets are coolant thru compatible
  • Coolant tube not included but available here
  • Coolant tube wrench not included but available here
  • MariTool Part# is HSK63A-DSF16-3.5
Product Specifications
Balance Spec:  G2.5 @ 25,000 rpms
Collet Size:  DSF16
Concentricity:  < .0001
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.5
Material:  Hardened Alloy Steel
Taper:  HSK63A
