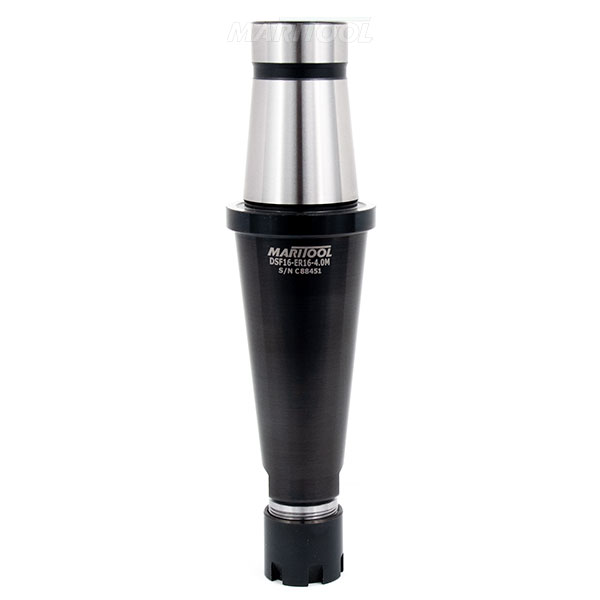

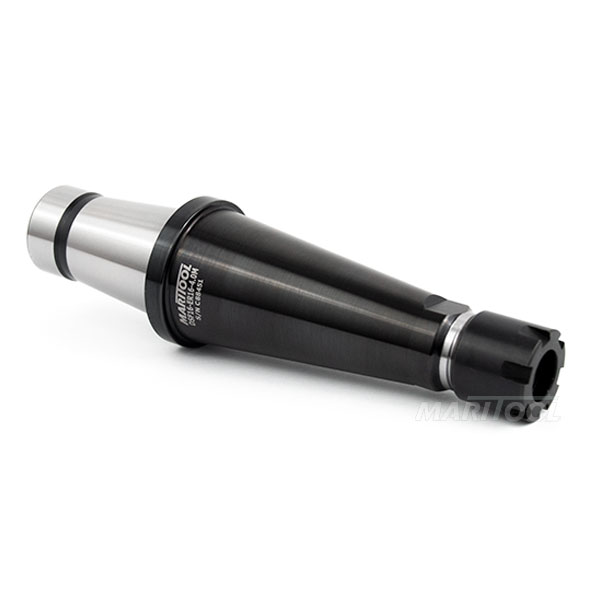

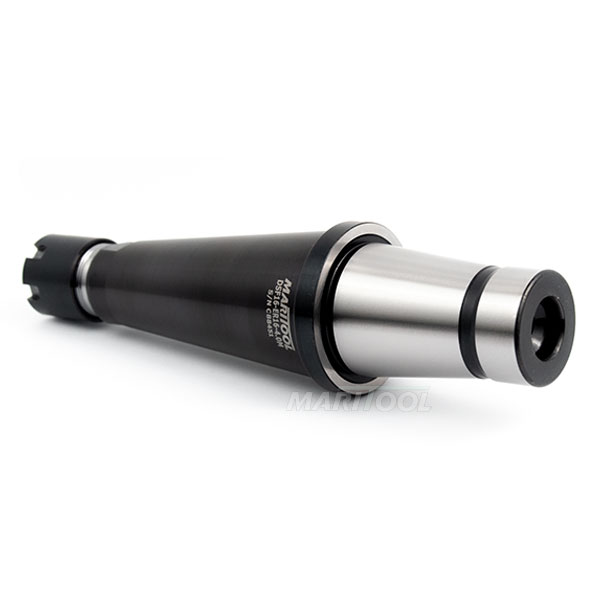

DSF16 ER16 4.0 Mini Nut Dual Contact Collet Chuck Modular Type MariTool

Item No.	DSF16-ER16-4.0M
Price:	$116.90
Shipping:	In Stock - Ships Same Day *
Quantity:
* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Collet Chuck accepts all ER16 collets

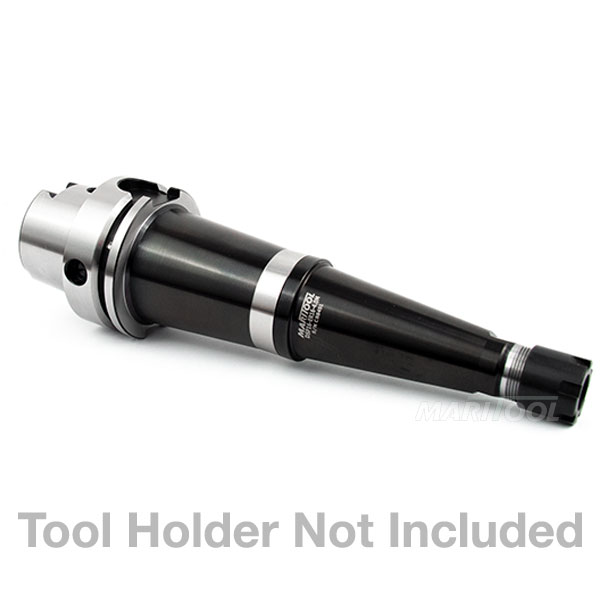

Works on all DSF16 master tool holders
Click Here to view all DSF16 master tool holders
Dual contact type interface, superior than other modular tool holder interfaces
Threaded for stop screw type 1 (not included)
All critical surfaces precision ground
Made from hardened alloy steel
Gage length is 4.0 inches
Gage length of this collet must be added to gage length of master tool holder for final gage length of your assembly
Concentricity is less than .0001 at collet face
Rear thread for M10 x 1.5 drawbolt (included with master tool holder)
Coolant thru capable, collet and drawbolt have a hole thru

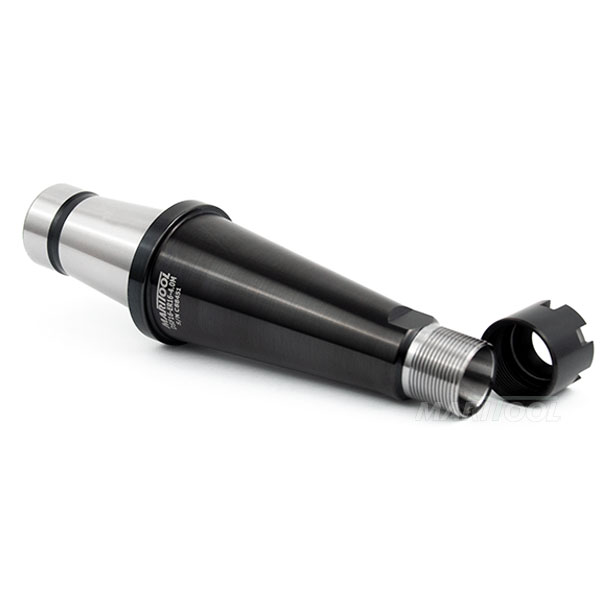

Collet nut is included
Mini Collet Nut is slimmer than standard collet nut
ER16 Mini Nut has an id thread of 19mm X 1.0 pitch. Outside diameter is .866 inches (22mm)
Must use ER16M collet wrench
MariTool Part# is DSF16-ER16-4.0M
