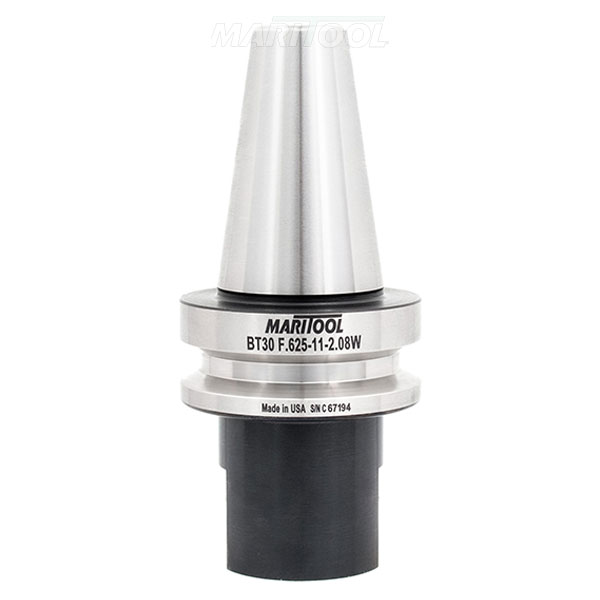

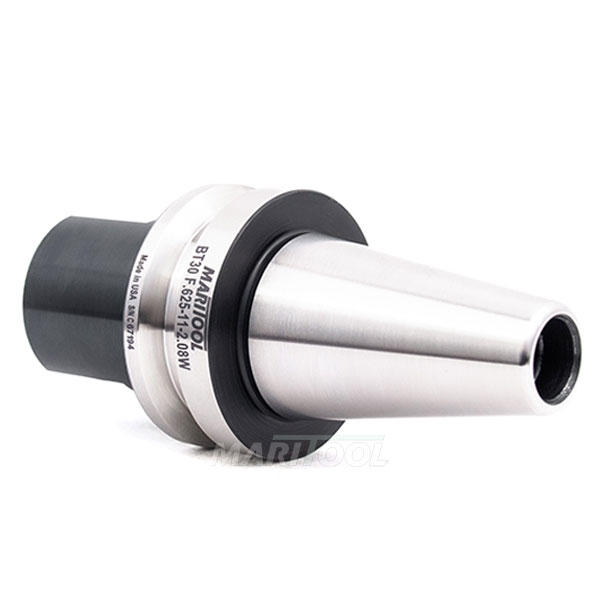

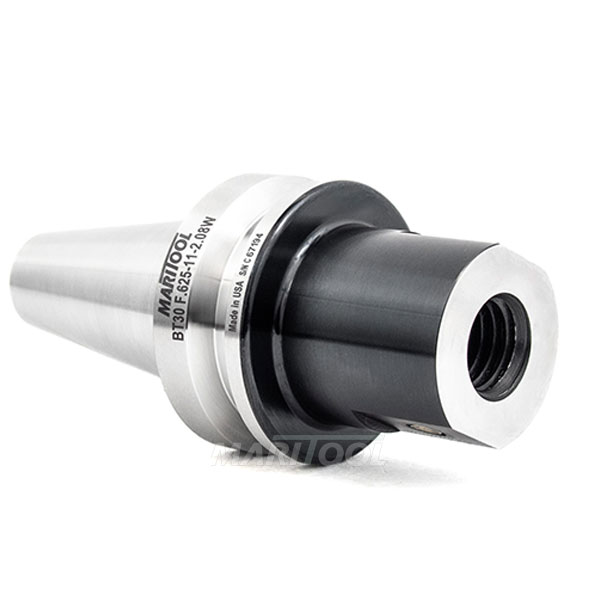

BT30 F.625-11-2.08 Collet Chuck Tool Holder W/O Drive Slots $147.35
BT30 F.625-11-2.08 Collet Chuck Tool Holder W/O Drive Slots
Click to enlarge

BT30 F.625-11-2.08 Collet Chuck Tool Holder W/O Drive Slots
Click to enlarge 		BT30 F.625-11-2.08 Collet Chuck Tool Holder W/O Drive Slots
Click to enlarge
Item No. BT30-F.625-11-2.08W
Price: $147.35
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for BT30-F.625-11-2.08W
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Ideal for router machines that do not require flange drive slots
  • Threaded for stop screw type 1 (not included)
  • All critical surfaces precision ground
  • Made from hardened alloy steel
  • Balanced to G2.5 at 20,000 rpms
  • Rear thread for pull stud is m12 x 1.75
  • View BT30 Pull Studs
  • MariTool Part# is BT30-F.625-11-2.08W
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Material:  Hardened Alloy Steel
Rear Thread:  M12 x 1.75
Taper:  BT30
