CBN Tipped Boring Bar .250 Shank X 2.0 Long X .007 Radius $58.10

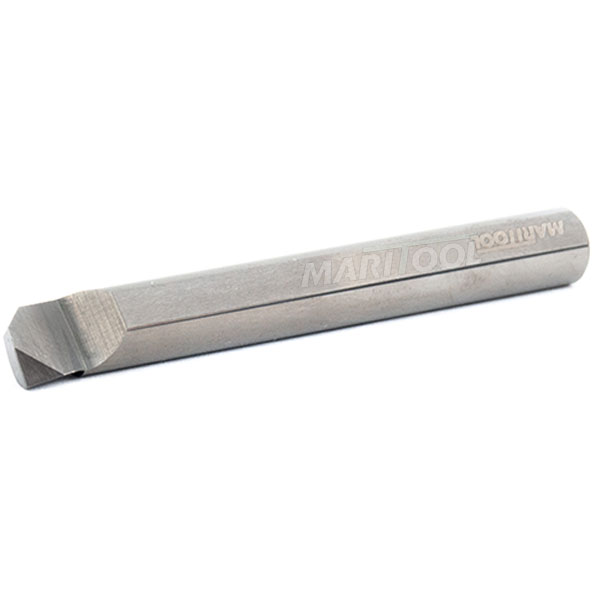

CBN Tipped Boring Bar .250 Shank X 2.0 Long X .007 Radius
Click to enlarge

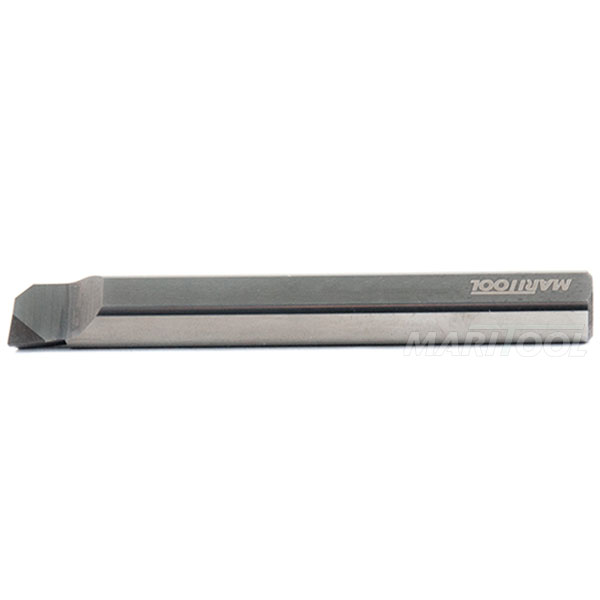

CBN Tipped Boring Bar .250 Shank X 2.0 Long X .007 Radius
Click to enlarge
Item No. MR-CBN250-01
Price: $58.10
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Product Info

View complete catalog page

  • These Carbide Boring Bars have a flat on the top for easy alignment
  • Solid Carbide shank with brazed CBN head
  • For hard boring and hard turing
  • Shank can be held at any length, allowing any extension needed
Product Specifications
Coating:  none
Corner Radius:  .007 Inches
Flat on Shank:  Yes
Lead Angle:  5 deg
Material:  Solid Micrograin Carbide
Minimum Bore Diameter:  .290 Inches
Shank Size:  .250 Inches
Total Length:  2.00 Inches
Trailing Angle:  15 deg
