Premium Alloy Steel Boring Bar .3125 Coolant Thru Shank $65.00

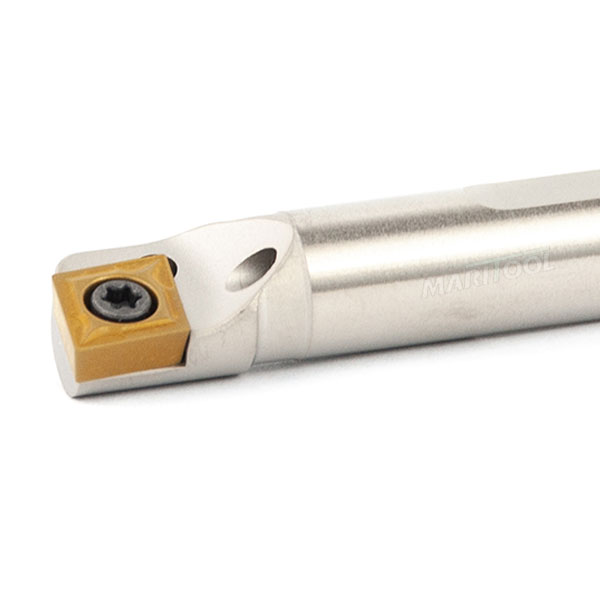

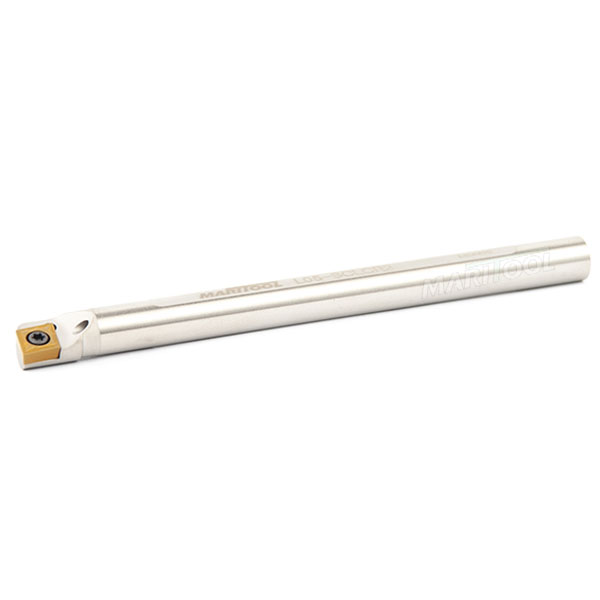

Premium Alloy Steel Boring Bar .3125 Coolant Thru Shank
Click to enlarge

Premium Alloy Steel Boring Bar .3125 Coolant Thru Shank
Click to enlarge
Item No. L05-SCLCR2
Price: $65.00
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Shank diameter is .3125 , Bar length is 4.0 inches
  • Shank is hollow for coolant thru delivery to the cutting edge
  • Minimum bore diameter of .41 inches
  • Bars have a flat on the top and bottom for easy alignment
  • Boring bar includes 2 insert screws (1 spare)
  • Insert is not included
  • Torque insert screw to 12 in/lbs
  • Uses series CCMT 21.5XXXX and CCMT 0602XXXX insert
  • Also uses CCGT and CCET inserts, insert tolerance is the only difference
  • 5 deg lead angle allows you to profile up to a 90 deg shoulder
  • Premium Alloy Steel type steel better than standard steel boring bars and can take more shock than carbide
  • Extension ratios of 5 to 1 are possible compared to 3 to 1 for steel boring bars
  • MariTool Part# is L05-SCLCR2
