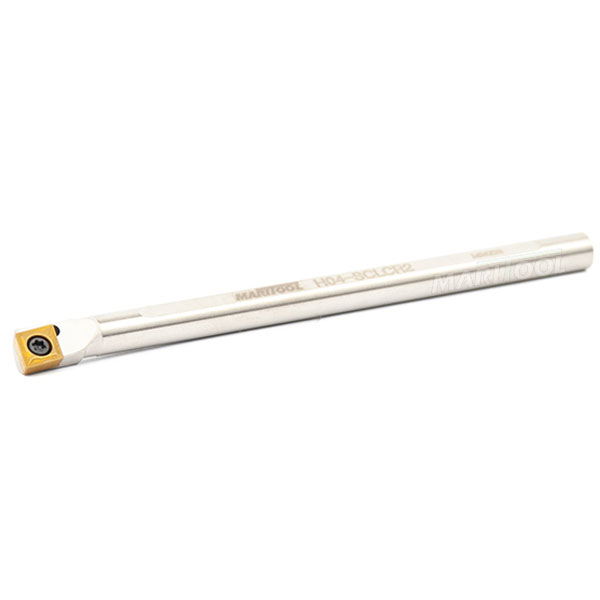

- Shank diameter is .250 , Bar length is 4.0 inches
- Minimum bore diameter of .32 inches
- Bars have a flat on the top and bottom for easy alignment
- Boring bar includes 2 insert screws (1 spare)
- Insert is not included
- This boring bar is not coolant thru
- Torque insert screw to 12 in/lbs

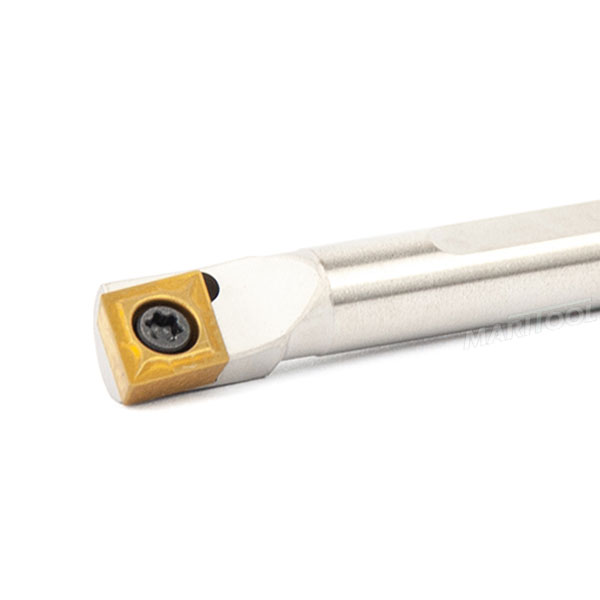

- Uses series CCMT 21.5XXXX and CCMT 0602XXXX insert
- Also uses CCGT and CCET inserts, insert tolerance is the only difference
- Premium Alloy type steel better than steel boring bars and can take more shock than carbide
- Extension ratios of 5 to 1 are possible compared to 3 to 1 for standard steel boring bars
- 5 deg lead angle allows you to profile up to a 90 deg shoulder
- MariTool Part# is H04-SCLCR2
