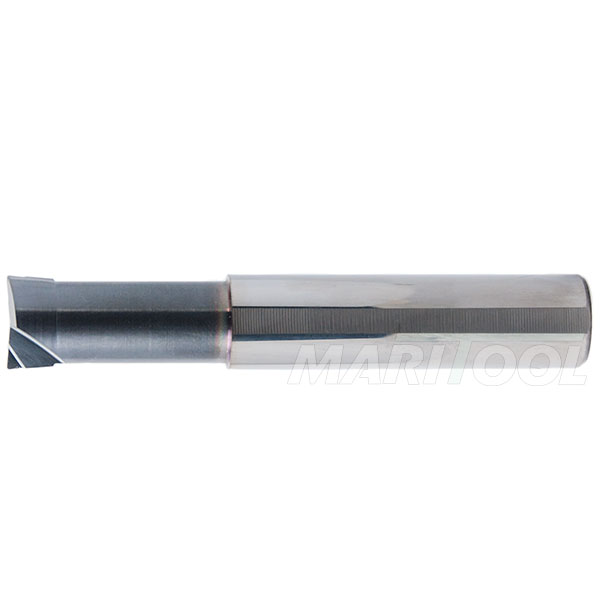

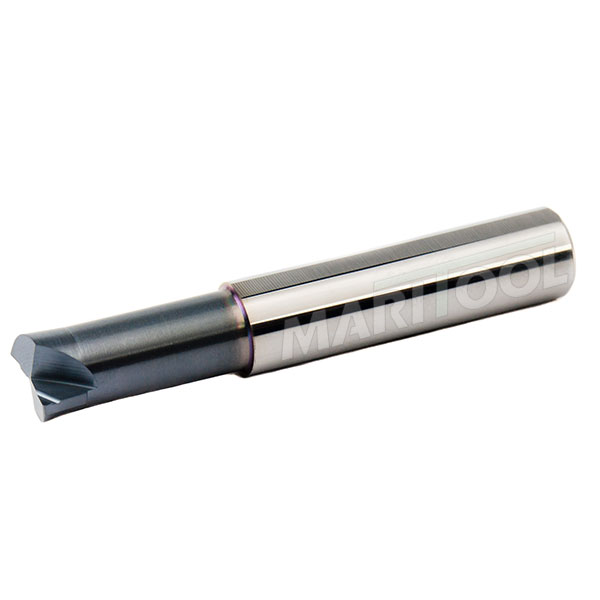

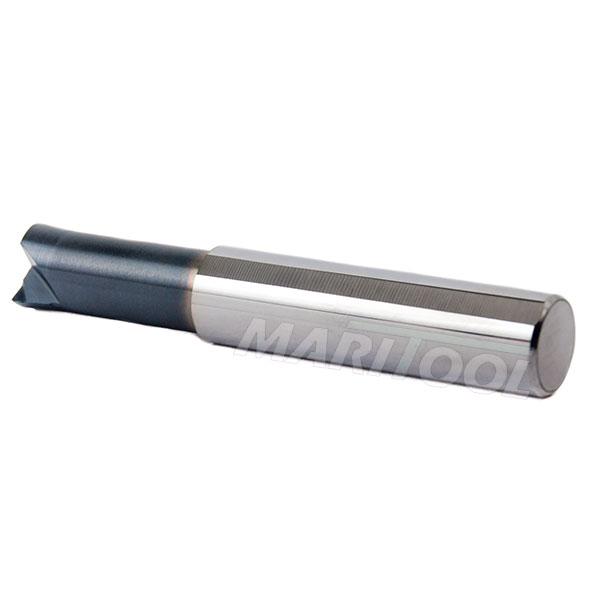

Double Edge Boring Bar .500 Shank X 1.125 Depth X .015 Radius With Chipbreaker $66.15
Double Edge Boring Bar .500 Shank X 1.125 Depth X .015 Radius With Chipbreaker
Click to enlarge

Double Edge Boring Bar .500 Shank X 1.125 Depth X .015 Radius With Chipbreaker
Click to enlarge 		Double Edge Boring Bar .500 Shank X 1.125 Depth X .015 Radius With Chipbreaker
Click to enlarge
Double Edge Boring Bar .500 Shank X 1.125 Depth X .015 Radius With Chipbreaker
Click to enlarge
Item No. DBB-500-01
Price: $66.15
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • These Double Edged Boring Bars have a flat on the top for easy alignment
  • Solid Carbide with 2 cutting edges
  • Both cutting edges have chipbreakers for gummy or stringy material
  • Can be used for I.D boring and also O.D turning
  • Can also be used for I.D roughing and then finishing for increased reliability
  • TiAlN coated for longer tool life
Product Specifications
Coating:  TiAlN
Corner Radius:  .015 Inches
Flat on Shank:  Yes
Lead Angle:  5 deg
Material:  Solid Micrograin Carbide
Max Bore Depth:  1.125 Inches
Minimum Bore Diameter:  .485 Inches
Neck Diameter:  .43 Inches
Shank Size:  .500 Inches
Total Length:  3.00 Inches
