Solid carbide 47 deg profiling boring .157 min bore X .394 deep $28.05
Solid carbide 47 deg profiling boring .157 min bore X .394 deep
Click to enlarge

Solid carbide 47 deg profiling boring .157 min bore X .394 deep
Click to enlarge 		Solid carbide 47 deg profiling boring .157 min bore X .394 deep
Click to enlarge
Item No. CP4R4-10-020
Price: $28.05
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

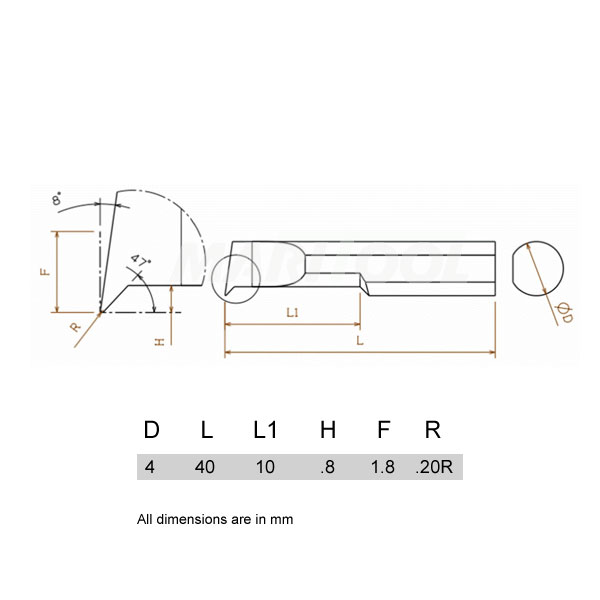

  • Great for internal profiling
  • Minimum bore diameter of .1575 (4mm)
  • Shank diameter is .1575 (4mm)
  • Total length is 1.575 (40mm)
  • Bars have a flat on the top for easy alignment
  • .0078 (.2mm) nose radius
  • Lead angle is 8 deg
  • Back angle is 47deg
  • Max boring depth .394 (10mm)
  • 10% micrograin carbide
  • Tin coated for long life
