Solid carbide boring bar .236 min bore X .866 deep X 6mm shank $35.60
Solid carbide boring bar .236 min bore X .866 deep X 6mm shank
Click to enlarge

Solid carbide boring bar .236 min bore X .866 deep X 6mm shank
Click to enlarge 		Solid carbide boring bar .236 min bore X .866 deep X 6mm shank
Click to enlarge
Item No. CBFR6-22-020
Price: $35.60
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

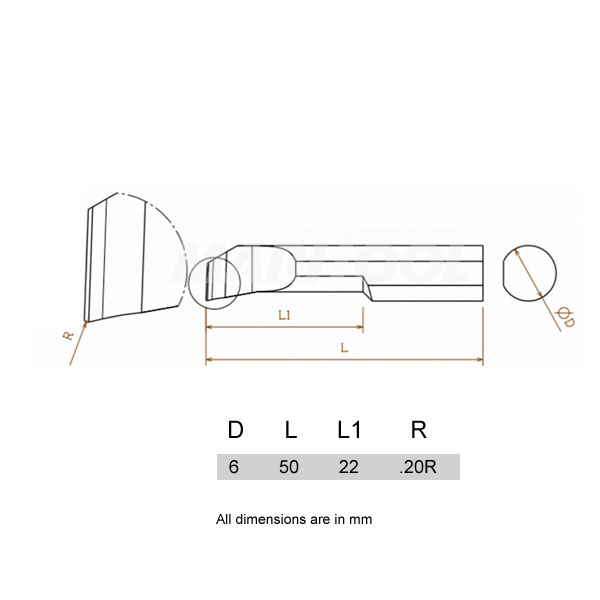

Product Info

View complete catalog page

  • Shank diameter is .2362 (6mm)
  • Minimum bore diameter is .2362 (6mm)
  • Total length is 1.968 (50mm)
  • Bars have a flat on the top for easy alignment
  • .0078 (.2mm) nose radius
  • Lead angle is 7 deg
  • Max boring depth .866 (22mm)
  • 10% micrograin carbide
  • Tin coated for long life
