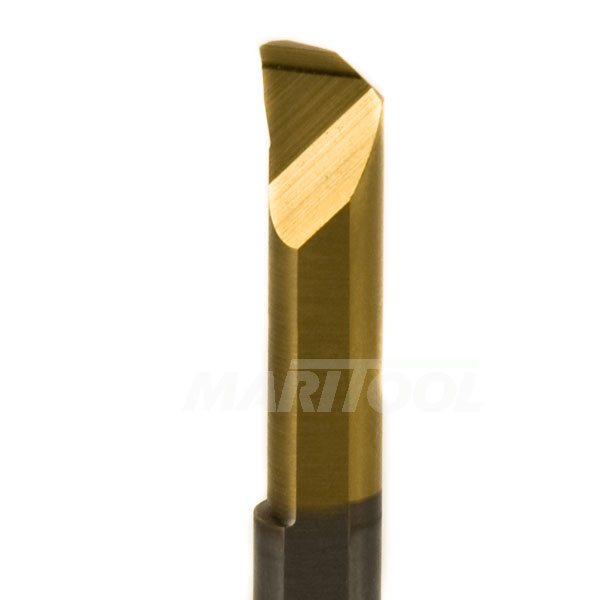

Solid carbide boring bar .157 min bore X .394 deep X 4mm shank $27.10
Solid carbide boring bar .157 min bore X .394 deep X 4mm shank
Click to enlarge

Solid carbide boring bar .157 min bore X .394 deep X 4mm shank
Click to enlarge 		Solid carbide boring bar .157 min bore X .394 deep X 4mm shank
Click to enlarge
Item No. CBFR4-10-020
Price: $27.10
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

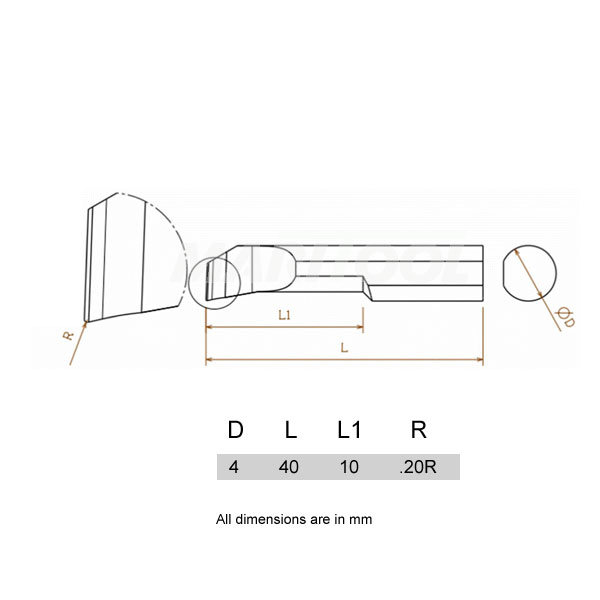

  • Shank diameter is .1574 (4mm)
  • Minimum bore diameter is .1574 (4mm)
  • Total length is 1.575 (40mm)
  • Bars have a flat on the top for easy alignment
  • .0078 (.2mm) nose radius
  • Lead angle is 7 deg
  • Max boring depth .394 (10mm)
  • 10% micrograin carbide
  • Tin coated for long life
