Solid carbide I.D threader .118 min bore X .866 deep $25.95

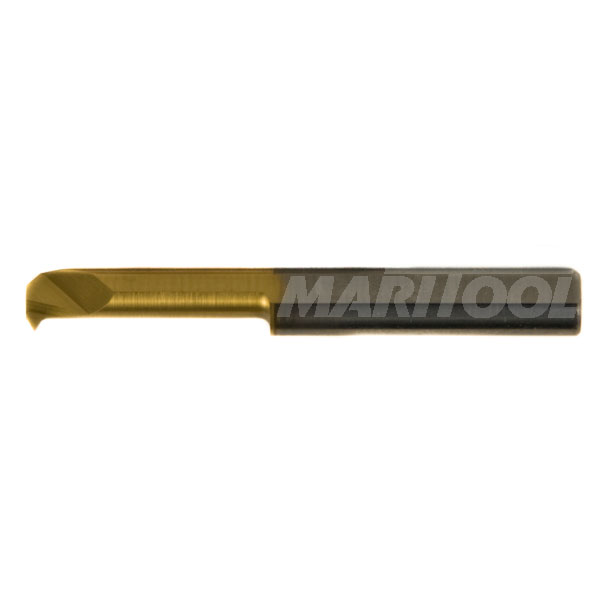

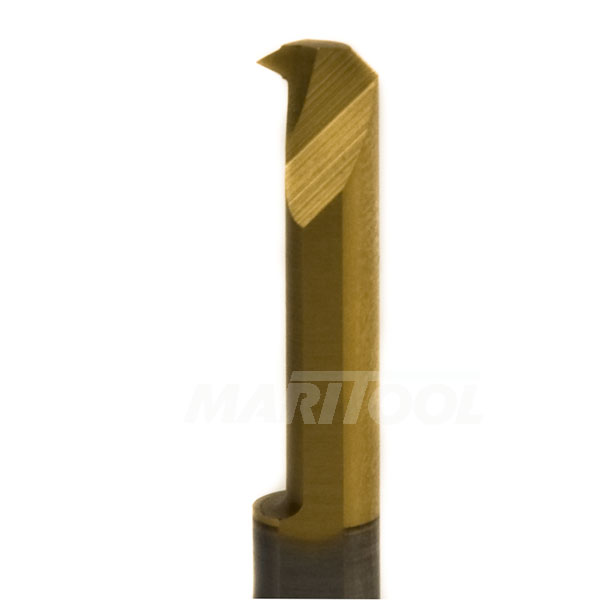

Solid carbide I.D threader .118 min bore X .866 deep
Click to enlarge

Solid carbide I.D threader .118 min bore X .866 deep
Click to enlarge 		Solid carbide I.D threader .118 min bore X .866 deep
Click to enlarge
Item No. CT6R3-22-100
Price: $25.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

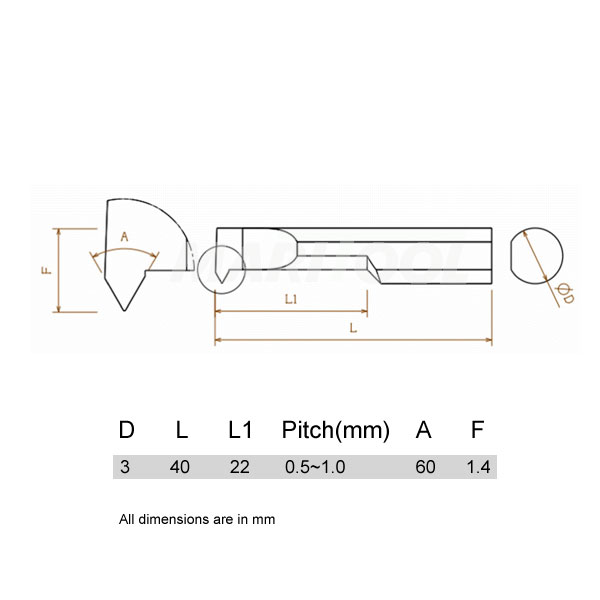

  • Shank diameter is .1181 (3mm)
  • Minimum bore diameter is .1181 (3mm)
  • Total length is 1.575 (40mm)
  • Bars have a flat on the top for easy alignment
  • 60 degree thread profile
  • Can make threads with pitch ranging from 36-24 TPI  (.5-1.0 threads per mm).
  • 10% micrograin carbide
  • Tin coated for long life
