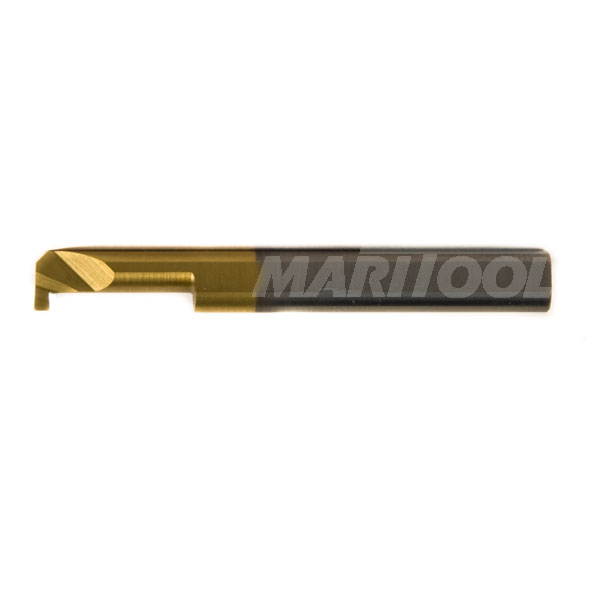

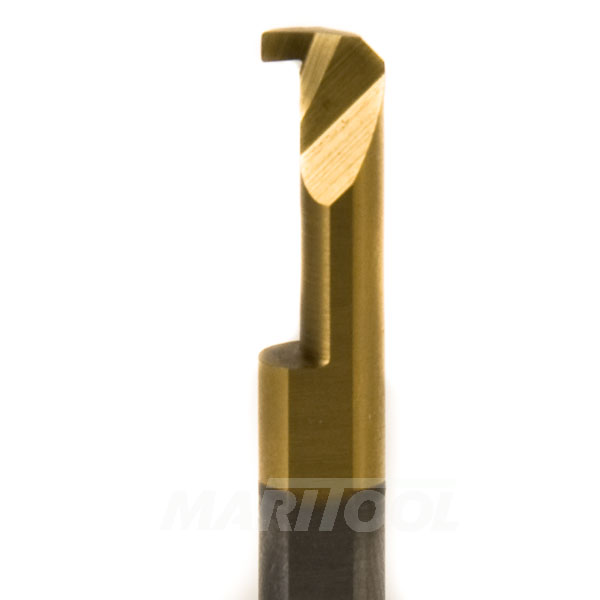

Solid carbide I.D groover .157 min bore X .0394 wide X .393 deep $32.25
Solid carbide I.D groover .157 min bore X .0394 wide X .393 deep
Click to enlarge

Solid carbide I.D groover .157 min bore X .0394 wide X .393 deep
Click to enlarge 		Solid carbide I.D groover .157 min bore X .0394 wide X .393 deep
Click to enlarge
Item No. CGSR4-10-100
Price: $32.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

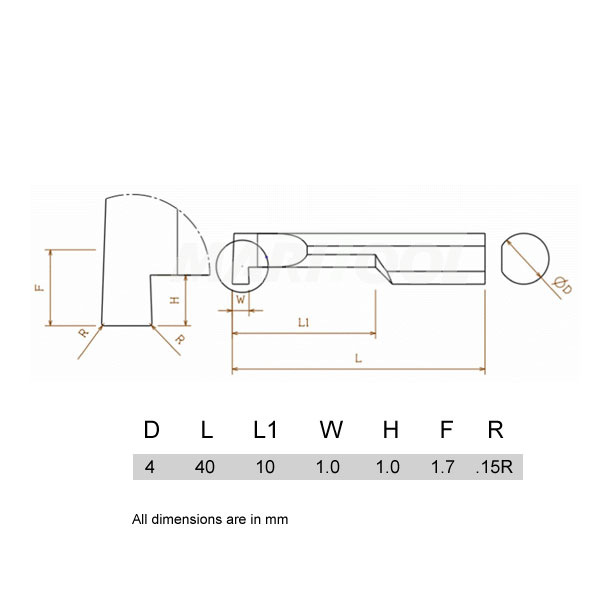

  • Shank diameter is .1574 (4mm)
  • Minimum bore diameter is .1574 (4mm)
  • Total length is 1.574 (40mm)
  • Bars have a flat on the top for easy alignment
  • .0059 (.15mm) corner radius
  • Width of I.D groover is .0394 (1mm)
  • Max hole depth is .393 (10mm)
  • 10% micrograin carbide
  • Tin coated for long life
