Patented design for precision assembly applications.

It can't be used as an anvil, but if your application calls for precision machined jaws form fit to your parts, with the ability to gradually apply pressure without crushing or scratching the part, the Orange Bench Vise is for you.

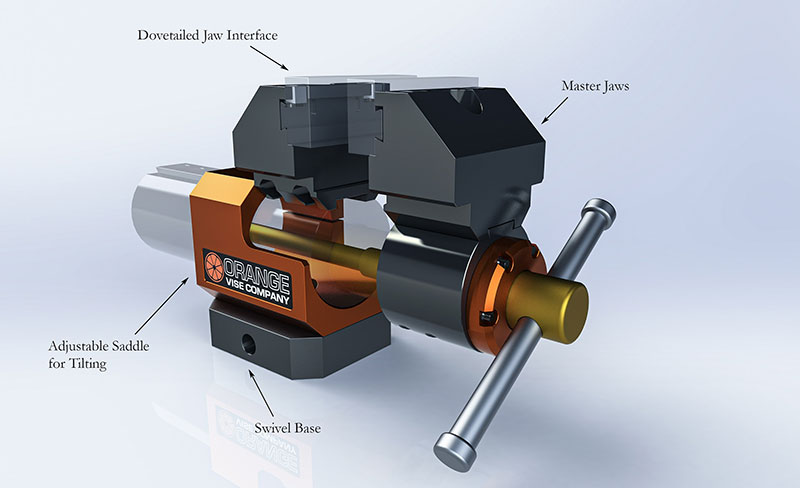

Uses the same dovetailed jaws as our 3-axis CNC machining vises, fully cross compatible with CarveSmart jaws.

Clamping Force

The Orange Bench Vise applies clamping force linearly based on the position of the handle after a workpiece is gripped:

• 1/8 turn: 750 lbs
• 1/4 turn: 1500 lbs
• 3/8 turn: 2250 lbs
• 1/2 turn: 3000 lbs (max)

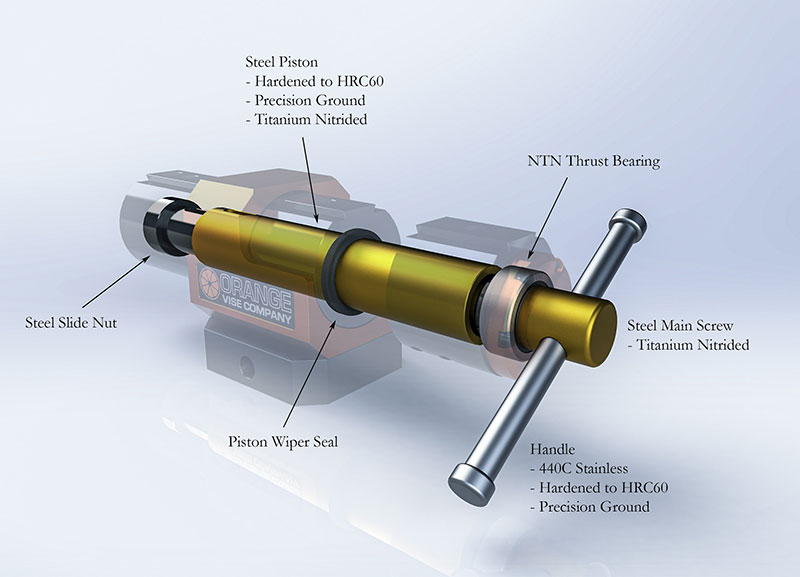

• The maximum force of the vise is limited by the axial load rating of the NTN thrust bearing



Warranty

• LIFETIME WARRANTY against defects in materials and workmanship
• Accidental Damage Replacement Program - Email info@orangevise.com for special reduced pricing on replacement components. The price of shipping is not included.
