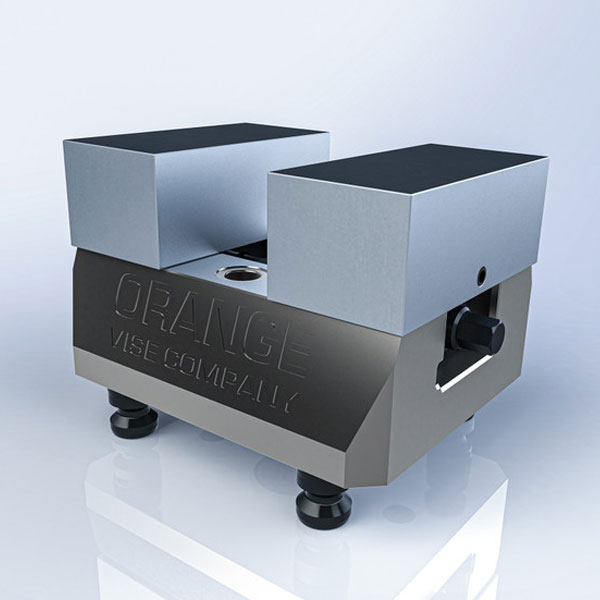

NEW! 3rd Generation Delta IV Self-Centering Vise with 96mm Mounting Pattern
- Now featuring hardened stainless steel construction machined and ground to the tightest tolerances
- 96mm pull studs are NOT INCLUDED
- This unit includes aluminum soft jaws. Gripper jaws sold separately.

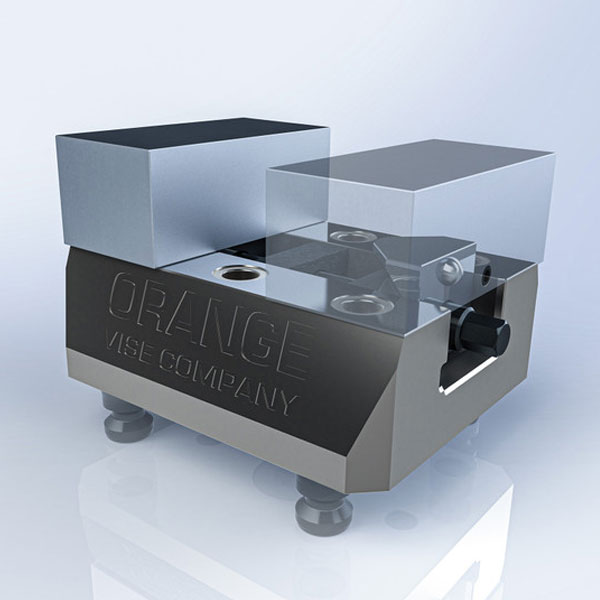

The heart of the vise is our PATENTED Delta jaw-retention system, now improved with a unique self centering anchor.
| Base Material | - Harded stainless steel
- Precision surface ground
|
| Anti-Jaw Lift | - Patented DELTA design
- < 0.0015" for first operations
- < 0.0005" for second operations *
* Soft jaws should be machined such that the bottom of the workpiece sits no higher than 0.875" - 1.000" above the bed of the vise |
| Self-Centering | - Standard
- 60 second conversion from other configurations
- 30 second semi-automatic centerline adjustment
- 0.001" centerline repeatability
|
| Dual Station Conversion | - Optional - Requires sensibly-priced dual-station kit
- 60 second conversion from other configurations
- 0.0005" repeatability
|
| Fixed Single Station Conversion | - Optional - Requires sensibly-priced single-station kit
- 60 second conversion from other configurations
- 0.0005" repeatability
|
| Clamping Force | - 6400 lbs at 80 ft-lbs torque
|
| Manufacturing | |
What's Included?
| Body | Delta IV Compact vise body - 4.875" x 1.93" WxH (length varies)
|
| Carrier Assembly | - PATENTED Delta jaw system.
|
| Included Jaws | - Machinable Aluminum Jaws
- 4" width
- 2" depth
- 1.63" height
|
