Mini Digital Depth Gage with Round Bar 0-1"/0-25mm $167.90

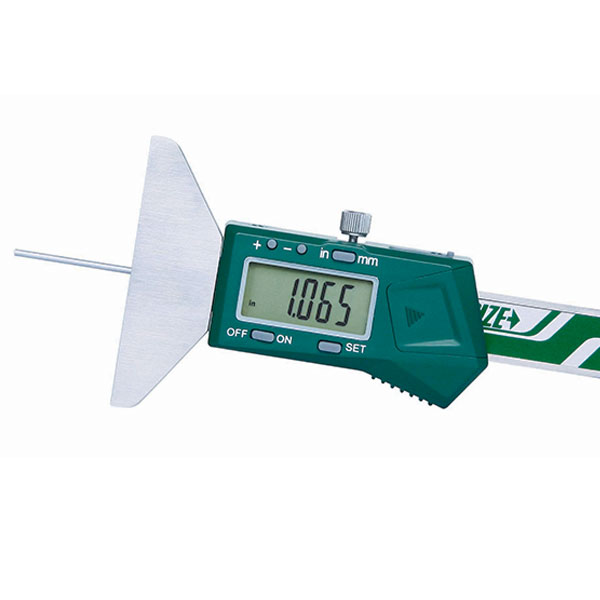

Mini Digital Depth Gage with Round Bar 0-1"/0-25mm
Click to enlarge

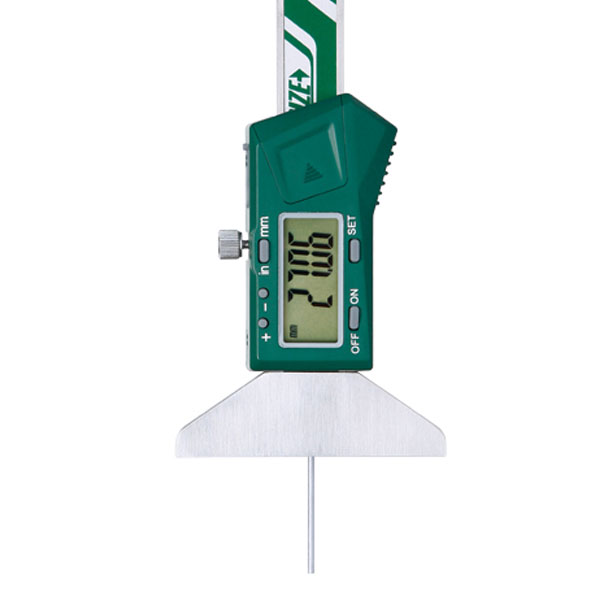

Mini Digital Depth Gage with Round Bar 0-1"/0-25mm
Click to enlarge
Mini Digital Depth Gage with Round Bar 0-1"/0-25mm
Click to enlarge
Item No. MDG-1140-25
Price: $167.90
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for MDG-1140-25
PDF file
Product Info

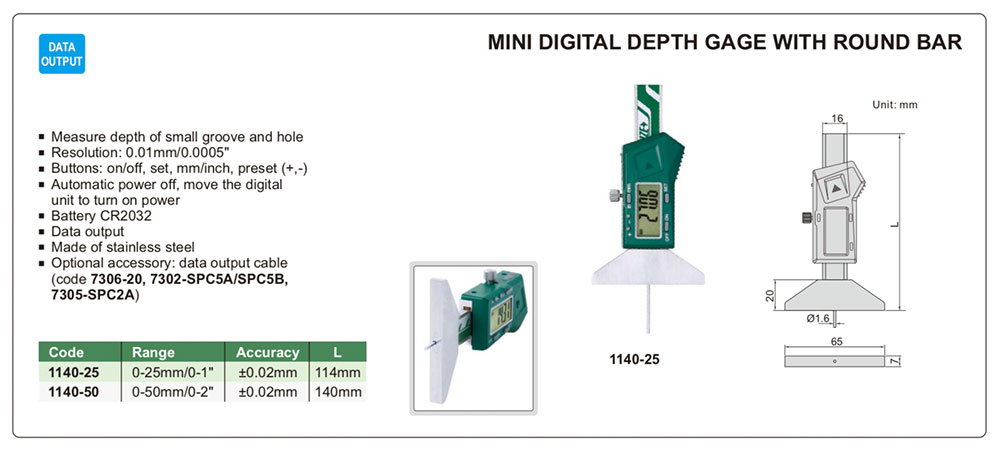

View complete catalog page

Measures depth of small groove and hole

  • Range: 0-1"/0-25mm
  • Resolution: .00005"/0.001mm
  • Buttons: on/off, set, inch/mm, preset(+,-)
  • Automatic power off, move the digital unit to turn on power
  • Battery CR2032
  • Data output
  • Made of stainless steel
  • MariTool Part# is MDG-1140-25
