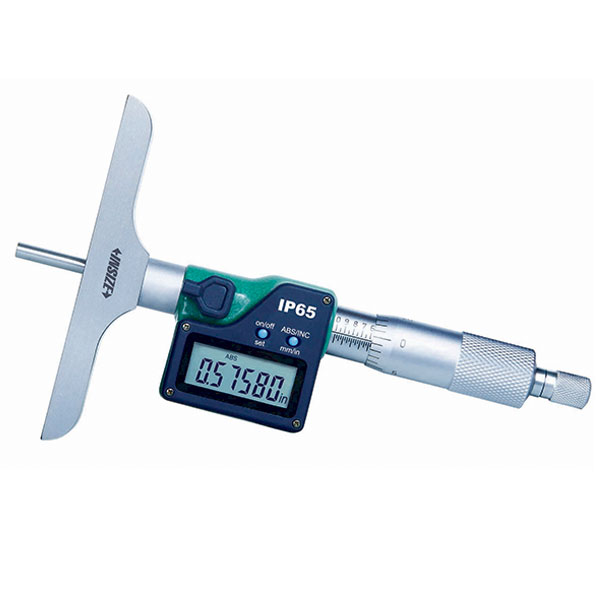

Digital Depth Micrometer 0-2"/0-50mm $553.10
Digital Depth Micrometer 0-2"/0-50mm
Click to enlarge

Digital Depth Micrometer 0-2"/0-50mm
Click to enlarge
Item No. DG-3540-050E
Price: $553.10
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Available Downloads for DG-3540-050E
PDF file
Product Info

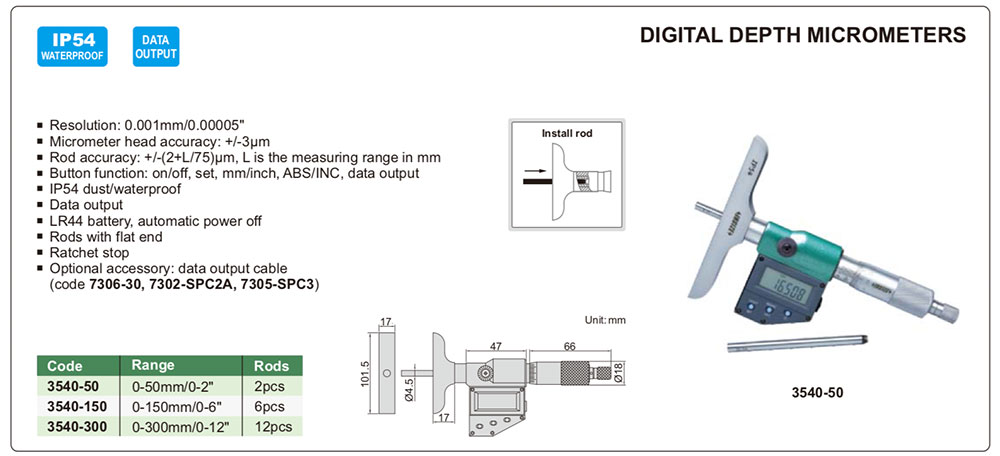

View complete catalog page

  • Range: 0-2"/0-50mm
  • Resolution: .00005"/0.001mm
  • Micrometer head accuracy: +/-3µ
  • Rod accuracy: +/-(2+L/75)µ, L is the measuring range in mm
  • Button function: on/off, set, mm/inch, ABS/INC, data output
  • IP54 dust/waterproof
  • LR44 battery, automatic power off
  • Rods with flat end
  • Ratchet stop
  • Optional accessory: data output cable (7306-30, 7302-SPC2A, 7305-SPC3)
  • MariTool Part# is DG-3540-50E
