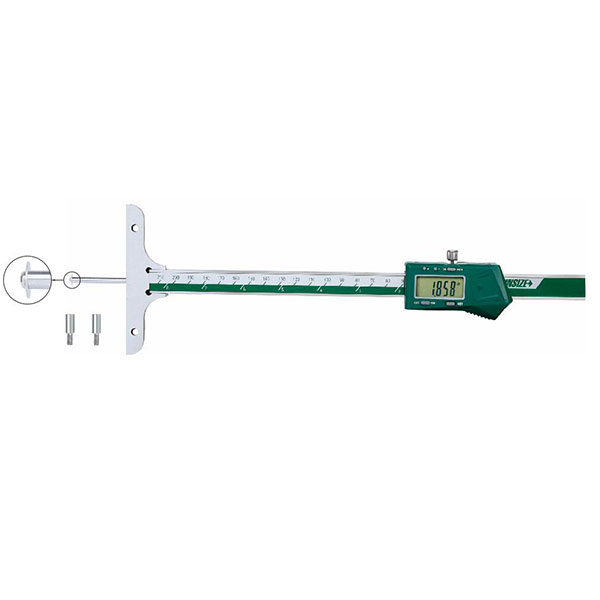

Digital Depth Gage with Round Depth Bar 0-8"/0-200mm, 3.976" Width $428.45
Digital Depth Gage with Round Depth Bar 0-8"/0-200mm, 3.976" Width
Click to enlarge

Digital Depth Gage with Round Depth Bar 0-8"/0-200mm, 3.976" Width
Click to enlarge
Item No. DDG-1148-200E
Price: $428.45
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for DDG-1148-200E
PDF file
Product Info

View complete catalog page

Measures width and depth of grooves inside bore

  • Range: 0-8"/0-200mm
  • Accuracy +-.0015"
  • Length is 11.811"
  • Width is 3.976"
  • Supplied with three interchangeable points (flat, spherical, disk)
  • Resolution: .0005"/0.01mm
  • Buttons: on/off, set, inch/mm, preset(+,-)
  • Automatic power off, move the digital unit to turn on power
  • Battery CR2032
  • Made of stainless steel
  • MariTool Part# is DDG-1148-200E
