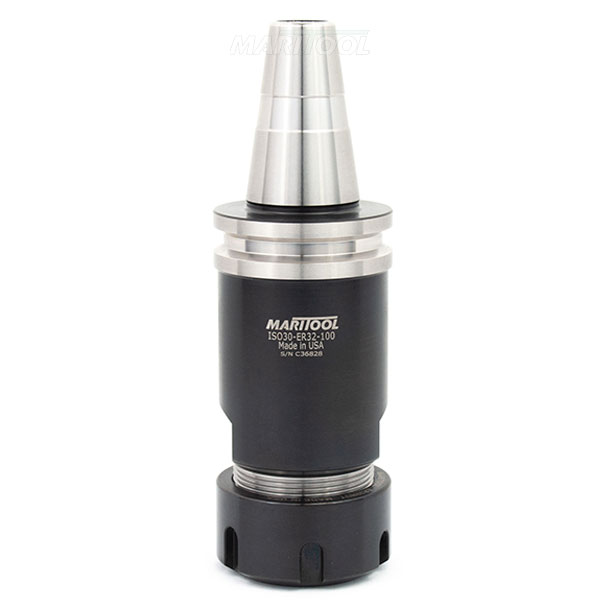

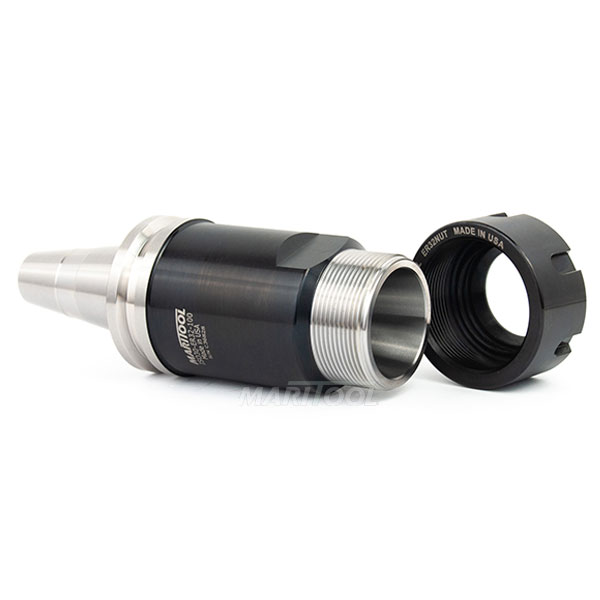

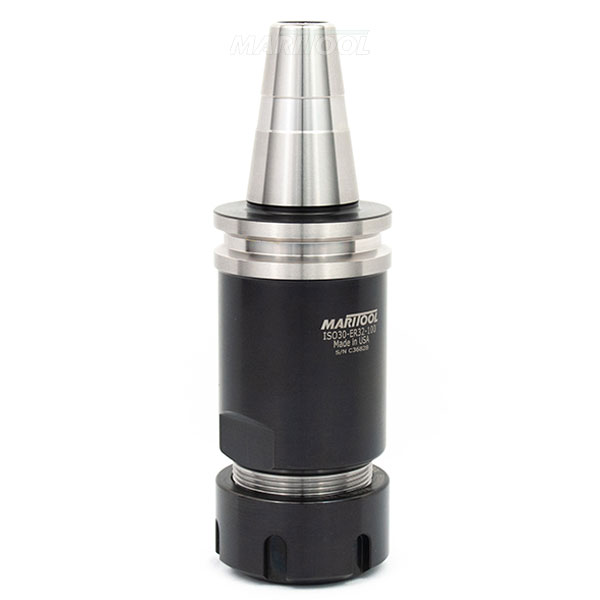

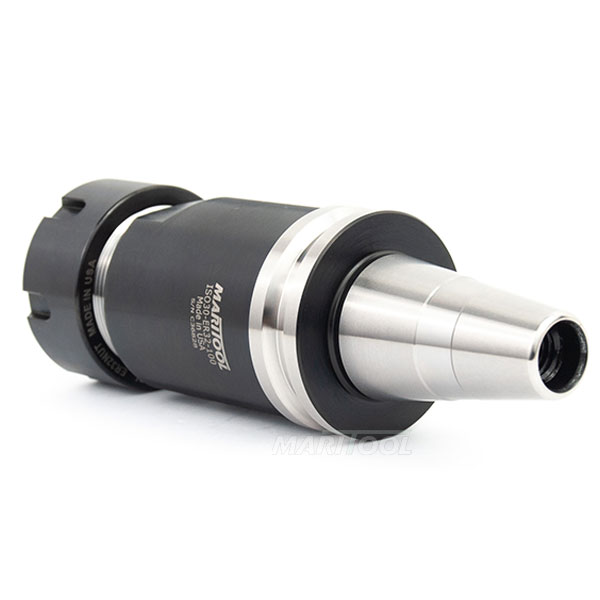

ISO30 ER32-100 COLLET CHUCK TOOL HOLDER $148.60
ISO30 ER32-100 COLLET CHUCK TOOL HOLDER
Click to enlarge

ISO30 ER32-100 COLLET CHUCK TOOL HOLDER
Click to enlarge 		ISO30 ER32-100 COLLET CHUCK TOOL HOLDER
Click to enlarge
ISO30 ER32-100 COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. ISO30ER32-100
Price: $148.60
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for ISO30ER32-100
DWG file  DXF file  STP file  PDF file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER32 collets
  • Works on all machines that take ISO30 tooling
  • Threaded for stop screw type 2 (not included)
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to 20,000 rpms
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is M12 X 1.75
  • Gage length is 100mm (3.9 inches)
  • MariTool Part# is ISO30ER32-100
