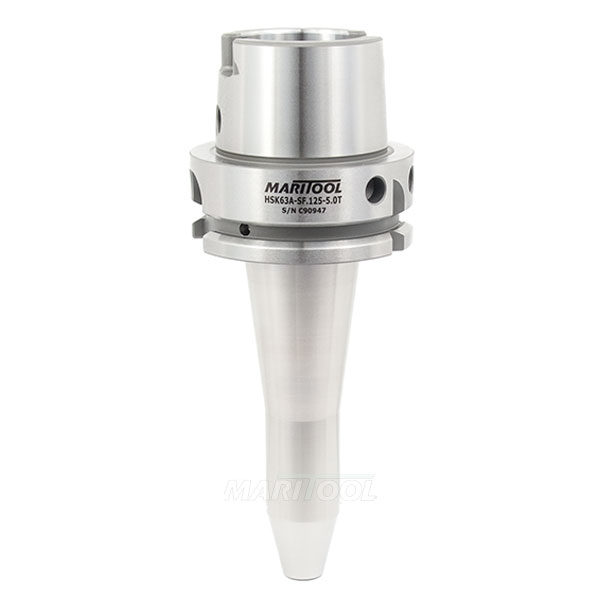

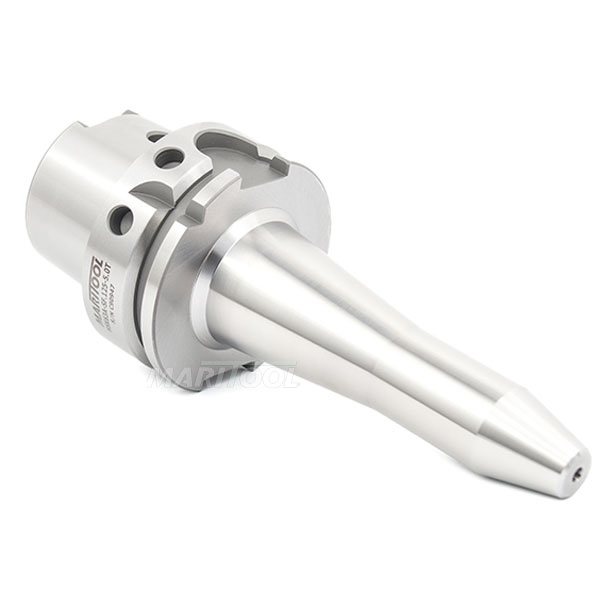

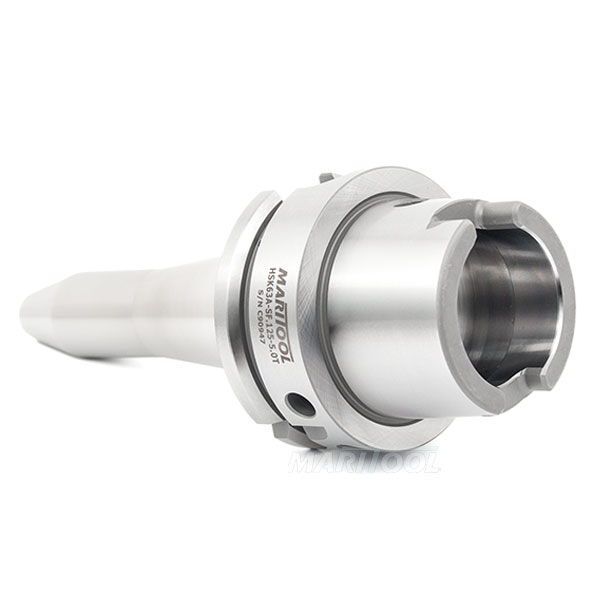

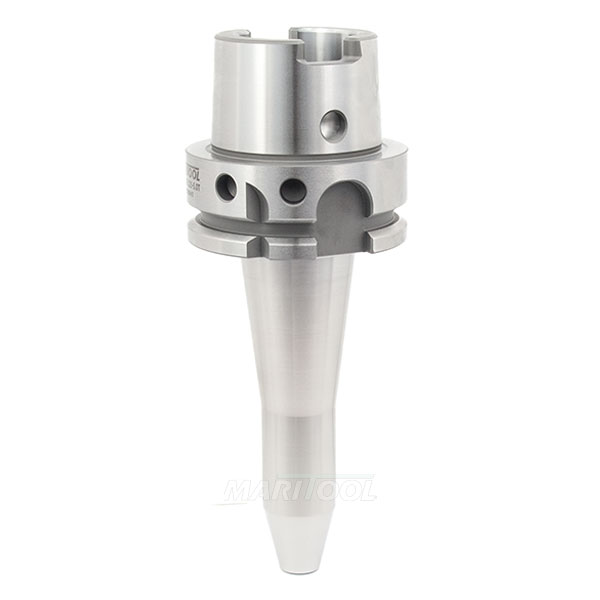

HSK63A Tapered Nose Shrink Fit Tool Holder .125-5.0 $242.95
HSK63A Tapered Nose Shrink Fit Tool Holder .125-5.0
Click to enlarge

HSK63A Tapered Nose Shrink Fit Tool Holder .125-5.0
Click to enlarge 		HSK63A Tapered Nose Shrink Fit Tool Holder .125-5.0
Click to enlarge
HSK63A Tapered Nose Shrink Fit Tool Holder .125-5.0
Click to enlarge 		HSK63A Tapered Nose Shrink Fit Tool Holder .125-5.0
Click to enlarge
Item No. HSK63A-SF.125-5.0T
Price: $242.95
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK63A-SF.125-5.0T
DWG file  DXF file  PDF file
Product Info

View complete catalog page

  • Works on all HSK63A machines
  • All critical tool holder surfaces precision ground
  • This Shrink Fit Tool Holder accepts all .125 shank tooling
  • Made from hardened H-13 alloy steel
  • Tool Holder is Balanced to G2.5 at 25,000 rpms
  • Gage length is 5.0 inches
  • Nose diameter is .870 Inches
  • Concentricity is less than .0002 Inches
  • Tool holder is coolant thru compatible
  • Coolant tube not included but available here
  • Coolant tube wrench not included but available here
  • MariTool Part# is HSK63A-SF.125-5.0T
Product Specifications
Balance Spec:  G2.5 @ 25,000 rpms
Concentricity:  .0002
Coolant Thru:  Yes
Gage Length:  5.0 Tapered
Material:  Hardened H-13 Alloy Steel
Shank Size:  .125
Taper:  HSK63A
Weight:  2.2
