HSK63A Shrink Fit Tool Holder .250-6.5 $324.10

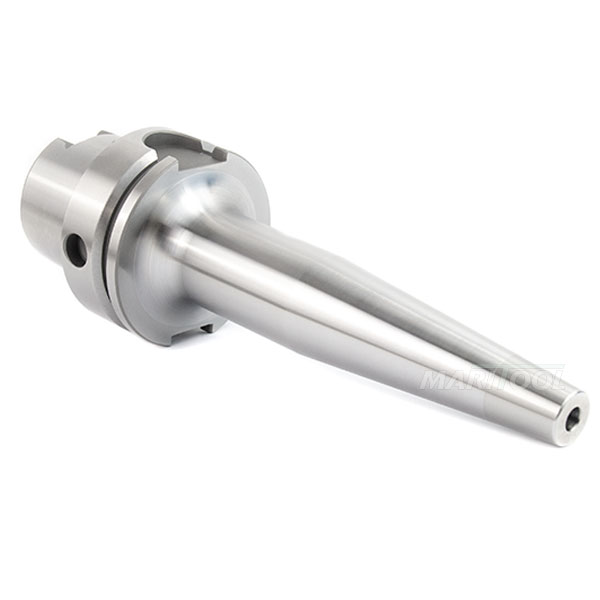

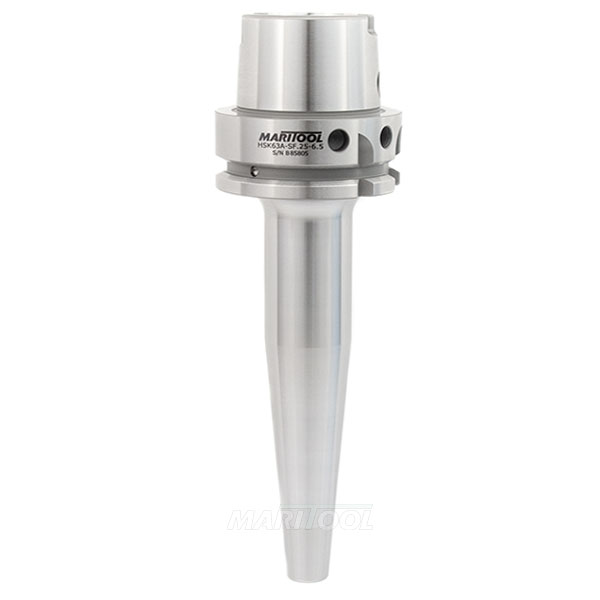

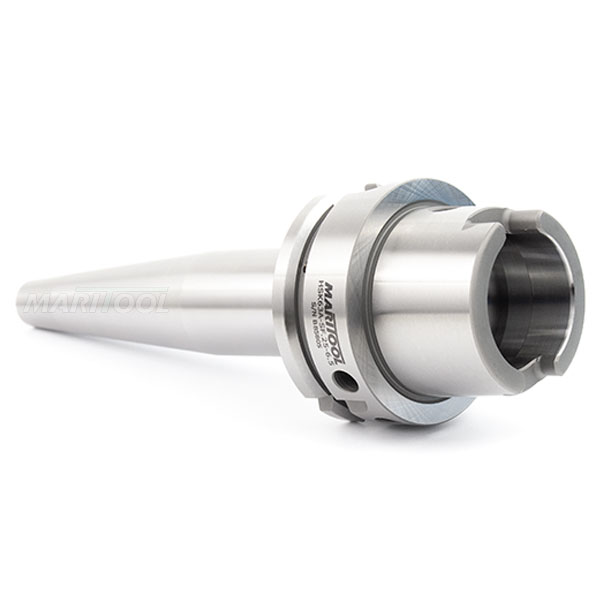

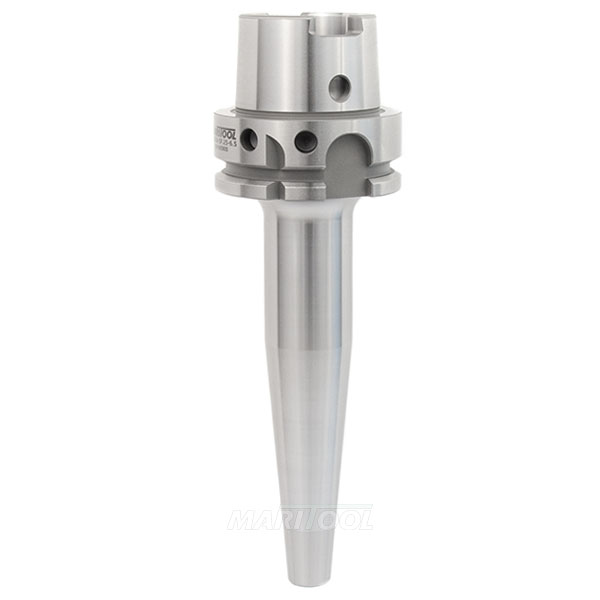

HSK63A Shrink Fit Tool Holder .250-6.5
Click to enlarge

HSK63A Shrink Fit Tool Holder .250-6.5
Click to enlarge 		HSK63A Shrink Fit Tool Holder .250-6.5
Click to enlarge
HSK63A Shrink Fit Tool Holder .250-6.5
Click to enlarge 		HSK63A Shrink Fit Tool Holder .250-6.5
Click to enlarge
Item No. HSK63A-SF.250-6.5
Price: $324.10
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK63A-SF.250-6.5
DWG file  DXF file  PDF file
Product Info

View complete catalog page

  • Works on all HSK63A machines
  • All critical tool holder surfaces precision ground
  • This Shrink Fit Tool Holder accepts all .250 shank tooling
  • Made from H-13 alloy steel hardened to 54 - 56rc
  • Tool Holder is Balanced to G2.5 at 25,000 rpms
  • Gage length is 6.5 inches
  • Nose profile....
  • Nose diameter is 1.19 Inches
  • Tip diameter is .6 Inches
  • Length of angle from tip to nose is 3.4 Inches
  • Concentricity is less than .0002 Inches
  • Tool holder is coolant thru compatible
  • Coolant tube not included but available here
  • Coolant tube wrench not included but available here
  • MariTool Part# is HSK63A-SF.250-6.5
Product Specifications
Balance Spec:  G2.5 @ 25,000 rpms
Concentricity:  .0002
Coolant Thru:  Yes
Gage Length:  6.5
Material:  Hardened H-13 Alloy Steel
Shank Size:  .250
Taper:  HSK63A
