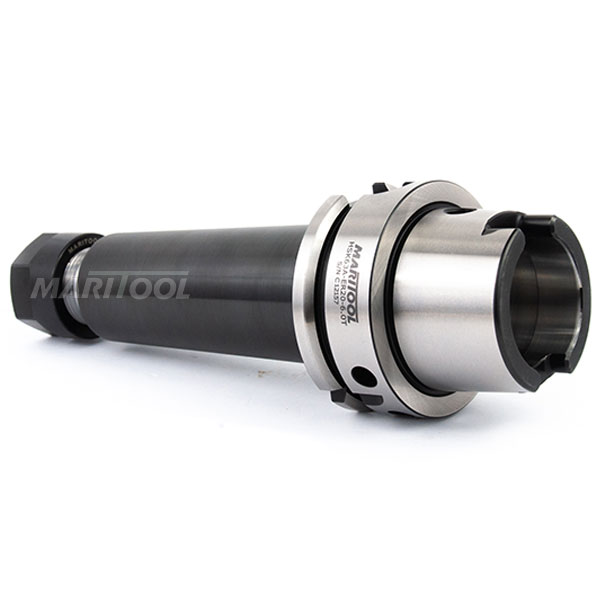

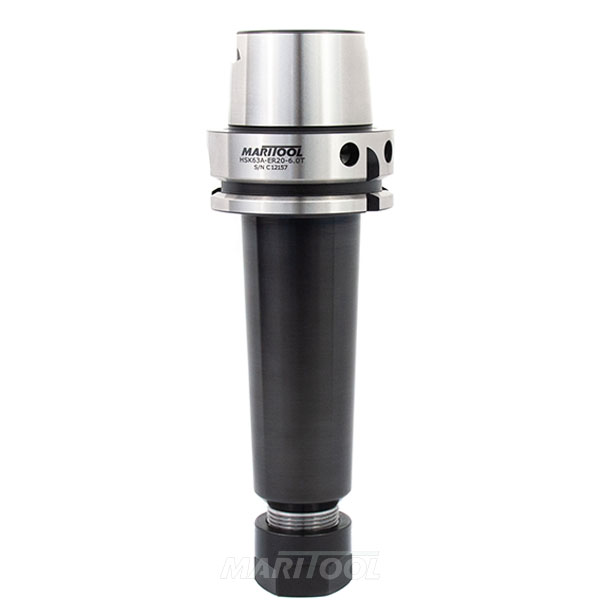

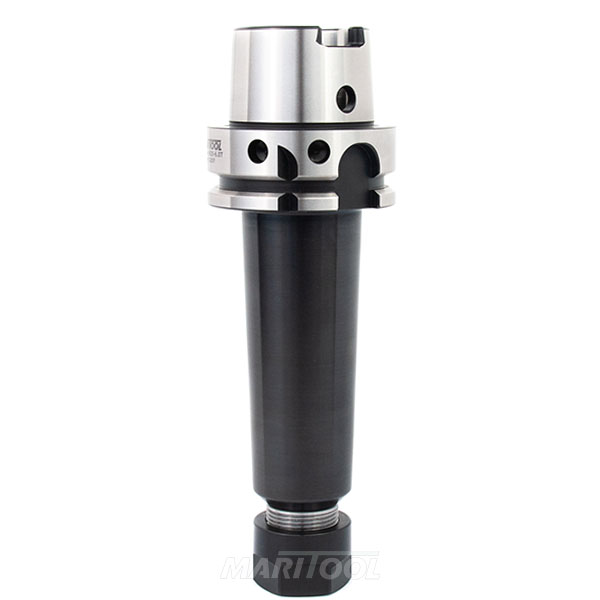

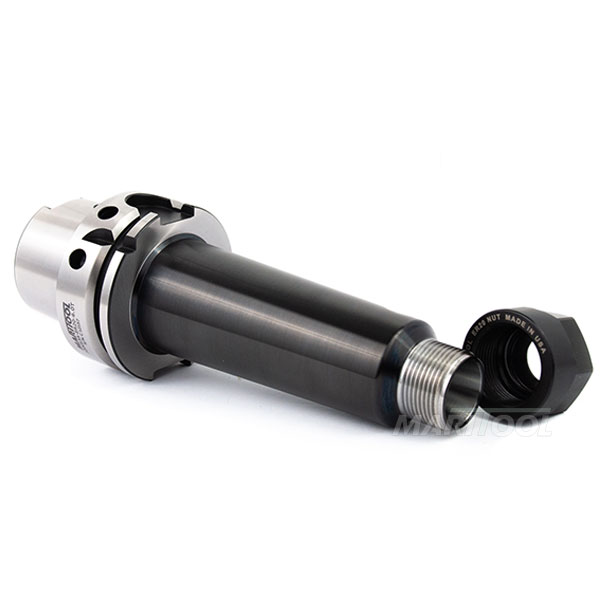

HSK63A ER20 6.0 Tapered Nose Collet Chuck Tool Holder $231.20
HSK63A ER20 6.0 Tapered Nose Collet Chuck Tool Holder
Click to enlarge

HSK63A ER20 6.0 Tapered Nose Collet Chuck Tool Holder
Click to enlarge 		HSK63A ER20 6.0 Tapered Nose Collet Chuck Tool Holder
Click to enlarge
HSK63A ER20 6.0 Tapered Nose Collet Chuck Tool Holder
Click to enlarge
Item No. HSK63A-ER20-6.0T
Price: $231.20
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK63A-ER20-6.0T
DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • Works on all HSK63A machines
  • All critical tool holder surfaces precision ground
  • Made from alloy steel
  • Balanced to G2.5 at 25,000 rpms
  • Gage length is 6.0 inches
  • Concentricity .00015 inches or less
  • Collet nut is included
  • Tool holder is coolant thru compatible
  • Coolant tube not included but available here
  • Coolant tube wrench not included but available here
  • Threaded for stop screw type 1 (not included)
  • MariTool Part# is HSK63A-ER20-6.0T
Product Specifications
Balance Spec:  G2.5 @ 25,000 rpms
Collet Grip Range:  .024-.5625 inches
Collet Size:  ER 20
Concentricity:  < .00015
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  6.0
Material:  Hardened Alloy Steel
Taper:  HSK63A
