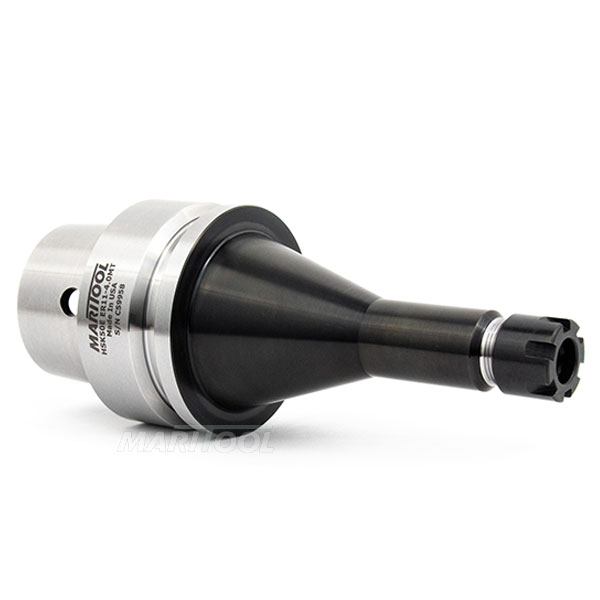

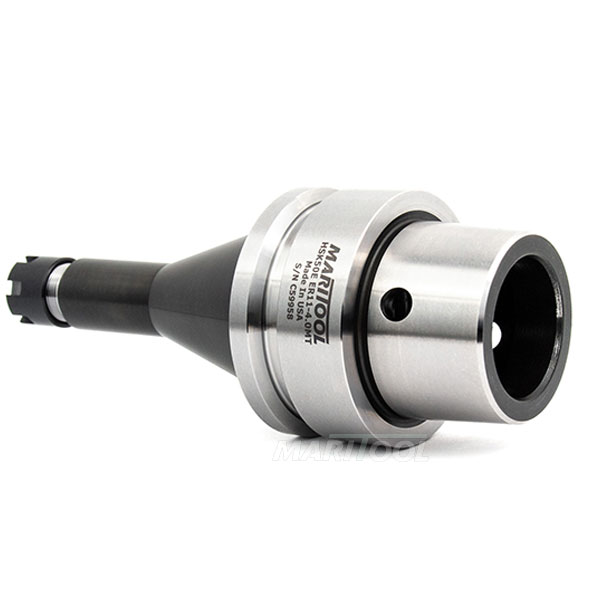

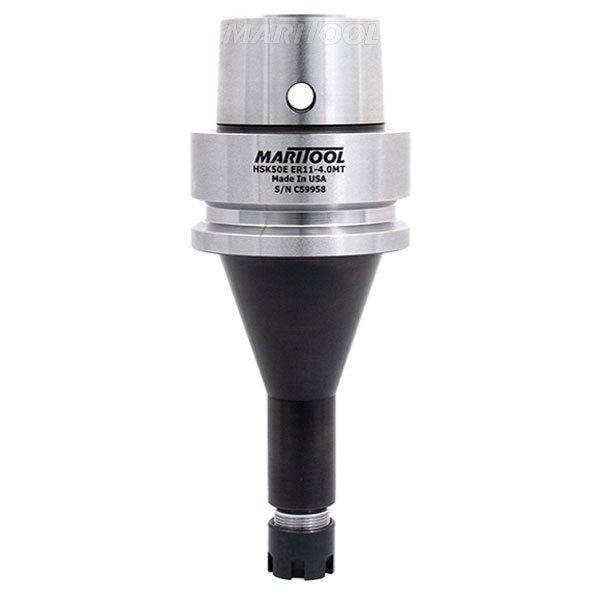

HSK50E ER11 4.0 Tapered Nose Mini Nut Collet Chuck Tool Holder $195.30
HSK50E ER11 4.0 Tapered Nose Mini Nut Collet Chuck Tool Holder
Click to enlarge

HSK50E ER11 4.0 Tapered Nose Mini Nut Collet Chuck Tool Holder
Click to enlarge 		HSK50E ER11 4.0 Tapered Nose Mini Nut Collet Chuck Tool Holder
Click to enlarge
HSK50E ER11 4.0 Tapered Nose Mini Nut Collet Chuck Tool Holder
Click to enlarge
Item No. HSK50E-ER11-4.0MT
Price: $195.30
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK50E-ER11-4.0MT
STP file  DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • Works on all HSK50E machines
  • Collet Chuck accepts all ER11 collets
  • All critical tool holder surfaces precision ground
  • Made from alloy steel
  • Balanced to G2.5 at 30,000 rpms
  • Gage length is 4.0 inches
  • Concentricity .0001 inches or less
  • Tool holder is coolant thru compatible

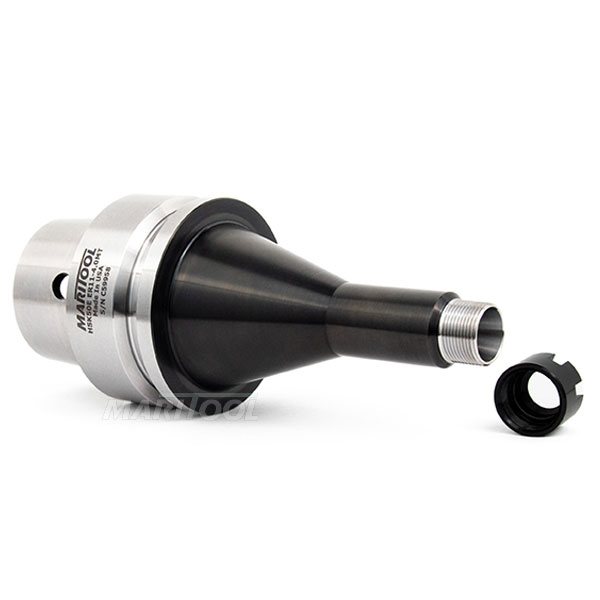

  • Collet nut is included
  • Collet nut is .640 dia. and uses wrench part number ER11M-WRENCH
  • Must use ER11M collet wrench
  • Coolant tube not included but available here
  • Coolant tube wrench not included but available here
  • MariTool Part# is HSK50E-ER11-4.0MT
Product Specifications
Balance Spec:  G2.5 @ 30,000 rpms
Collet Grip Range:  .020-.276 inches
Collet Nut:  ER11M
Collet Size:  ER 11
Concentricity:  < .0001
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  4.0 Tapered
Material:  Hardened Alloy Steel
Taper:  HSK50E
