HSK40E Slitting Saw Arbor Holder .500-2.5 $203.50

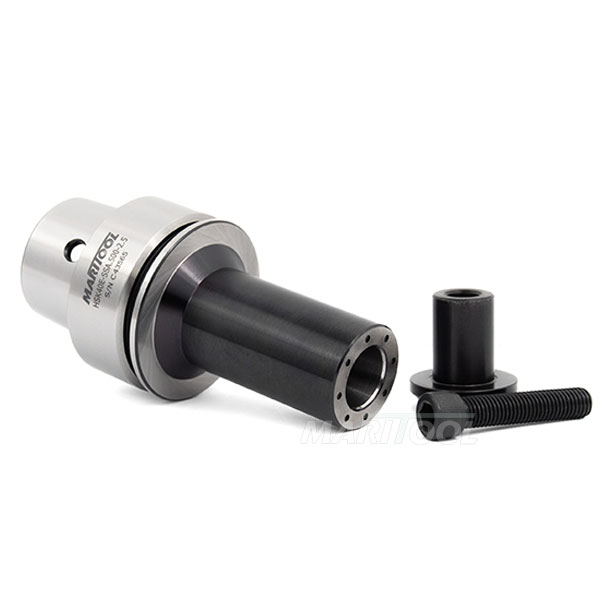

HSK40E Slitting Saw Arbor Holder .500-2.5
Click to enlarge

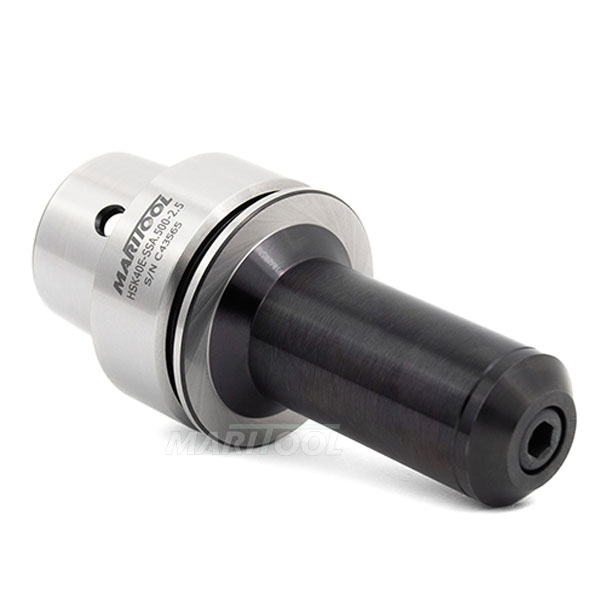

HSK40E Slitting Saw Arbor Holder .500-2.5
Click to enlarge

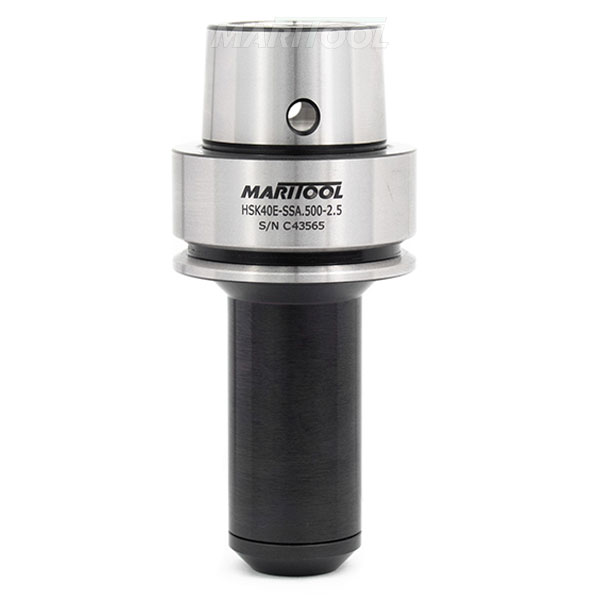

HSK40E Slitting Saw Arbor Holder .500-2.5
Click to enlarge

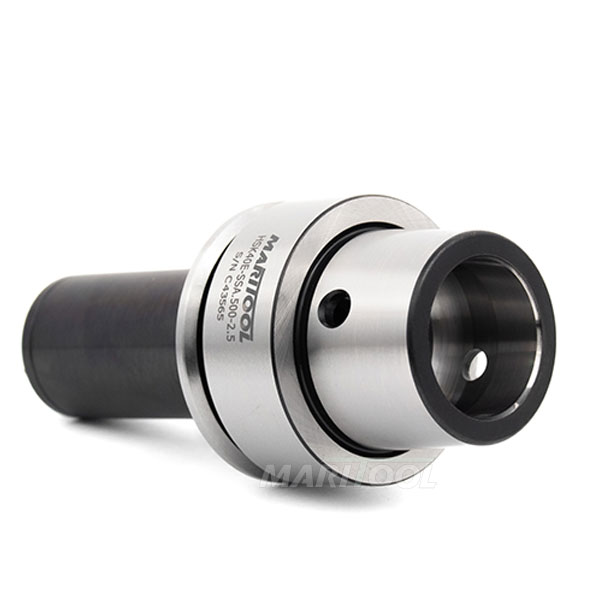

HSK40E Slitting Saw Arbor Holder .500-2.5
Click to enlarge
Item No. HSK40E-SSA.500-2.5
Price: $203.50
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for HSK40E-SSA.500-2.5
DWG file  PDF file  DXF file
Product Info

View complete catalog page

  • Keyless slitting saw holder, for saws with .500" arbor hole
  • Concentricity is less than .0001 at arbor hole
  • Balanced to G2.5 @30,000 rpms
  • Gage length is 2.5 inches
  • End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
  • Screw for cap is 1/4-28 X 1-1/4 long
  • Saw cap is 1/4 thick and .4999 diameter boss is .700 long
  • Nose dia and saw cap is .875 Inches diameter
  • Coolant tube not included but available here
  • Coolant tube wrench not included but available here
  • Replacement cap is available SSA.500-cap
  • MariTool Part# is HSK40E-SSA.500-2.5

Product Specifications
Arbor Diameter:  .500
Balance Spec:  G2.5 @ 30,000 rpms
Concentricity:  < .0001 at Arbor Hole
Finish:  Black Oxide
Gage Length:  2.5
Material:  Hardened Alloy Steel
Nose Diameter:  .875
Taper:  HSK40E
