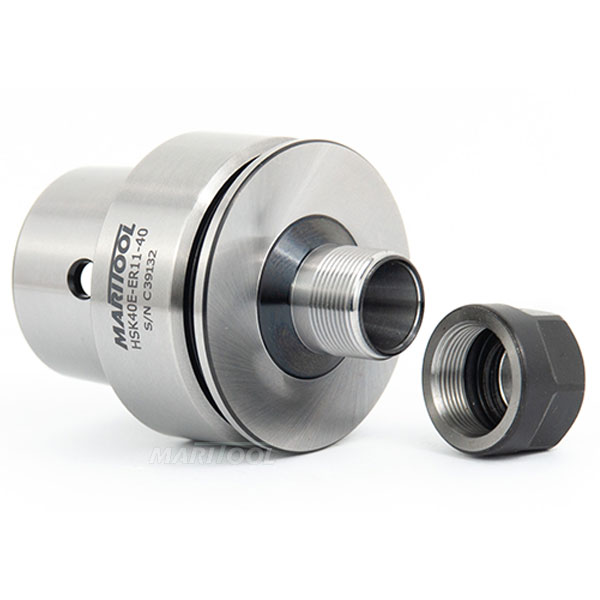

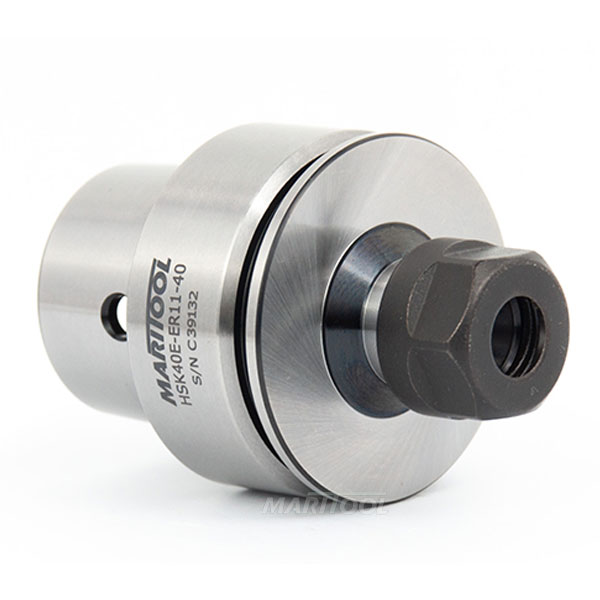

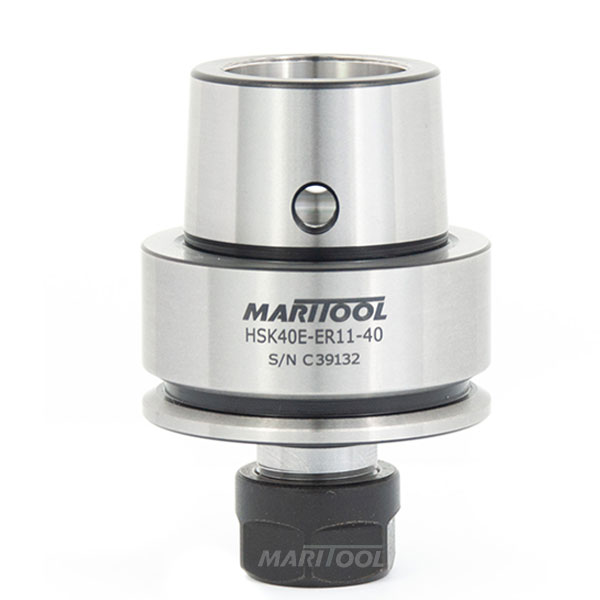

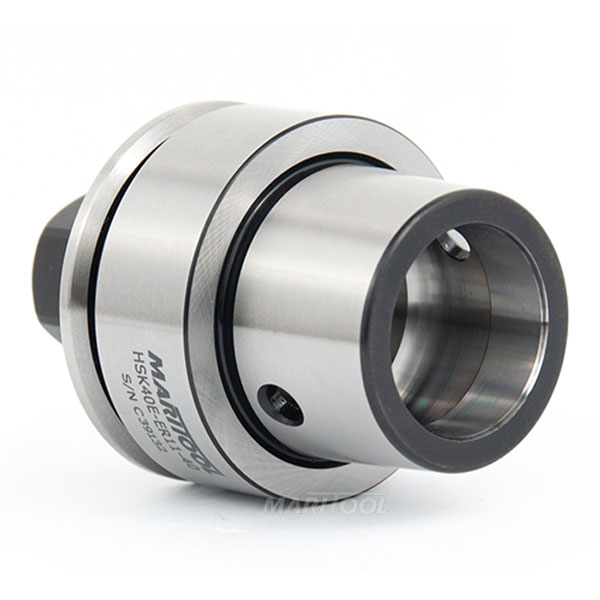

HSK40E ER11 Collet Chuck Tool Holder 40mm $187.45
HSK40E ER11 Collet Chuck Tool Holder 40mm
Click to enlarge

HSK40E ER11 Collet Chuck Tool Holder 40mm
Click to enlarge 		HSK40E ER11 Collet Chuck Tool Holder 40mm
Click to enlarge
HSK40E ER11 Collet Chuck Tool Holder 40mm
Click to enlarge
Item No. HSK40E-ER11-40
Price: $187.45
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for HSK40E-ER11-40
DXF file  PDF file  DWG file
Product Info

View complete catalog page

  • Works on all HSK40E machines
  • All critical tool holder surfaces precision ground
  • Made from hardened alloy steel
  • Tool Holder is Balanced to G2.5 at 40,000 rpms
  • Gage length is 40mm (1.6 inches)
  • Concentricity is less than .00015 Inches
  • Collet nut is included
  • Due to this tool's short gage length, it is not threaded internally for a coolant tube.
  • MariTool Part# is HSK40E-ER11-40
Product Specifications
Balance Spec:  G2.5 @ 40,000 rpms
Collet Grip Range:  .020-.276 inches
Collet Size:  ER11
Concentricity:  < .00015
Coolant Thru:  Yes
Gage Length:  40mm
Material:  Hardened Alloy Steel
Taper:  HSK40E
