CAT50 2.5-3.0 FACE MILL TOOL HOLDER $213.65

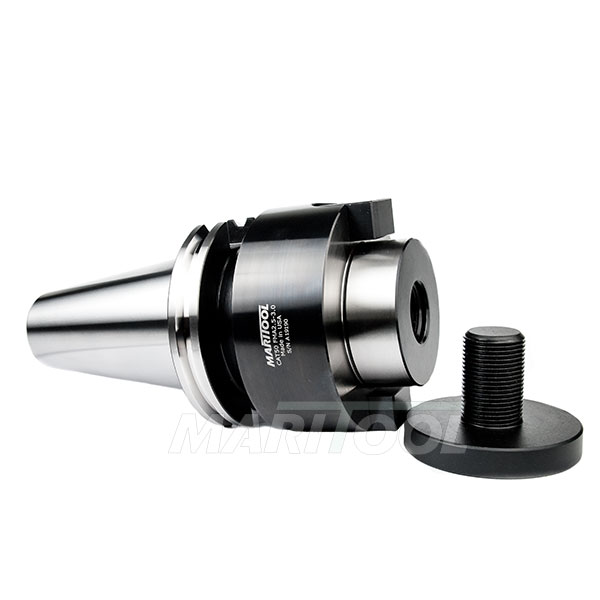

CAT50 2.5-3.0 FACE MILL TOOL HOLDER
Click to enlarge

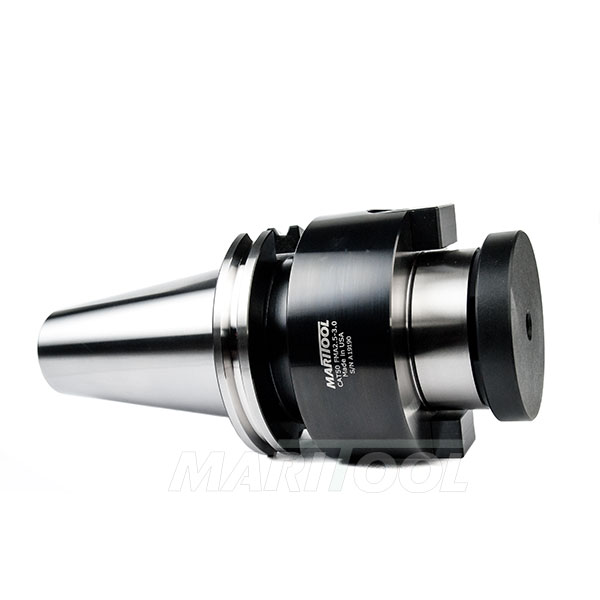

CAT50 2.5-3.0 FACE MILL TOOL HOLDER

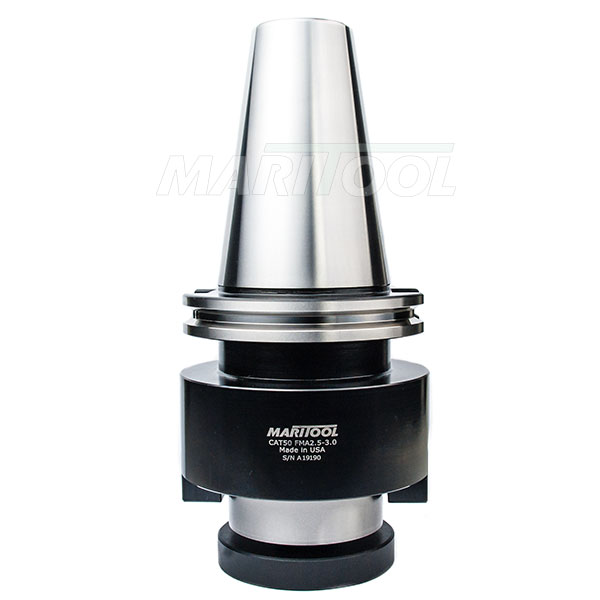

Click to enlarge 		CAT50 2.5-3.0 FACE MILL TOOL HOLDER
Click to enlarge

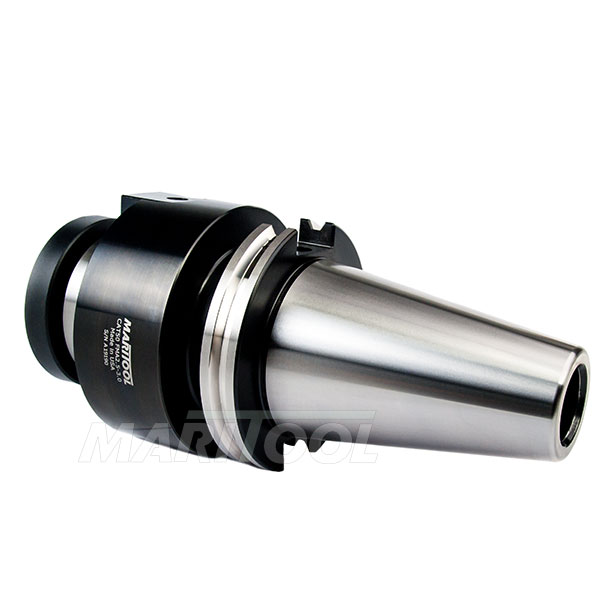

CAT50 2.5-3.0 FACE MILL TOOL HOLDER
Click to enlarge
Item No. CAT50-FMA2.5-3.0
Price: $213.65
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT50-FMA2.5-3.0
STP file  DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • Arbor diameter is 2.5 inches
  • Made from alloy steel hardened to 54 - 56rc
  • Concentricity is less than .0002 at face and arbor
  • All critical tool holder surfaces precision ground
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Gage length is 3.0 inches
  • Lock screw thread is 1"-14
  • Width of removable drive keys are .998 inches
  • Nose dia is 4.0 Inches
  • Rear thread for pull stud is 1"-8
  • MariTool Part# is CAT50-FMA2.5-3.0
Product Specifications
Arbor Diameter:  2.5
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Rear Thread:  1" X 8
Taper:  CAT50
