- Works on all CAT50 machines with Dual Contact spindles
- Compatible with BIG-PLUS® spindles
- This tool holder accepts all 16mm threaded screw-in indexable cutters
- This tool holder is for indexable modular cutters
- Cutters are often called Modular tooling, Screw in, or Threaded Shank Cutters
- Click here for list of cutters and terminology used by different manufacturers
- Ground pilot diameter is 17mm X 10mm deep, internal thread is M16 X 2.0 X 27mm deep
- Nose diameter is 1.22 Inches
- Tool holder works on all CAT50 machines
- All critical tool holder surfaces precision ground
- Made from hardened alloy steel
- Balanced to G2.5 at 20,000 rpms
- Gage length is 3.5 inches
- Concentricity is less than .0001 at pilot bore
- Coolant thru capability
- Rear thread for pull stud is 1" X 8
- View CAT50 Pull Studs

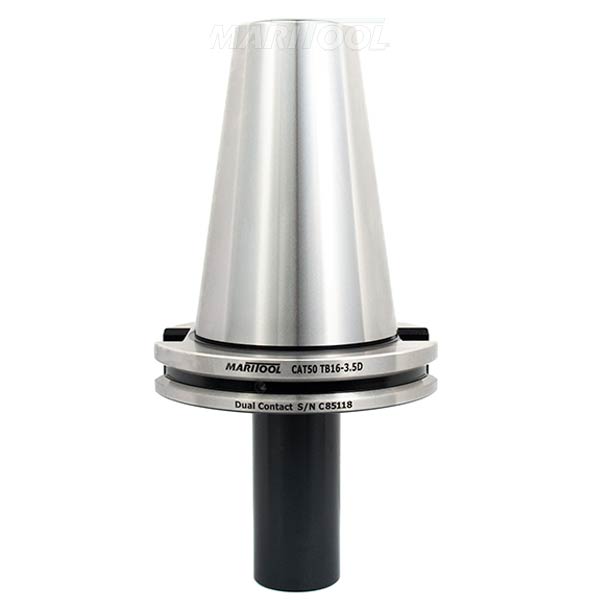

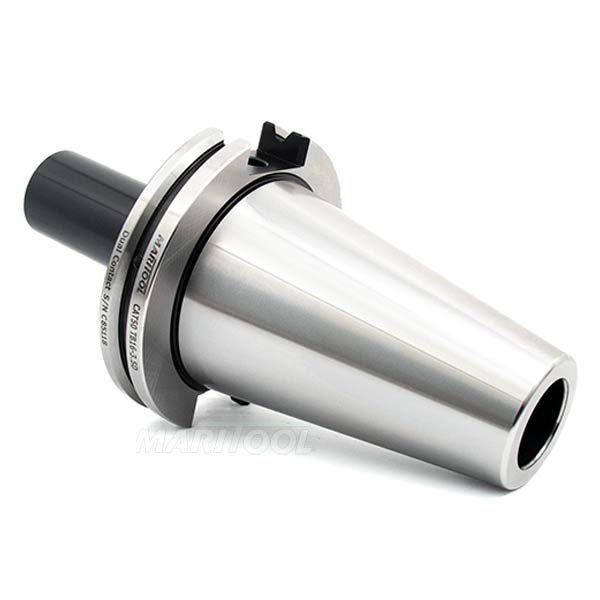

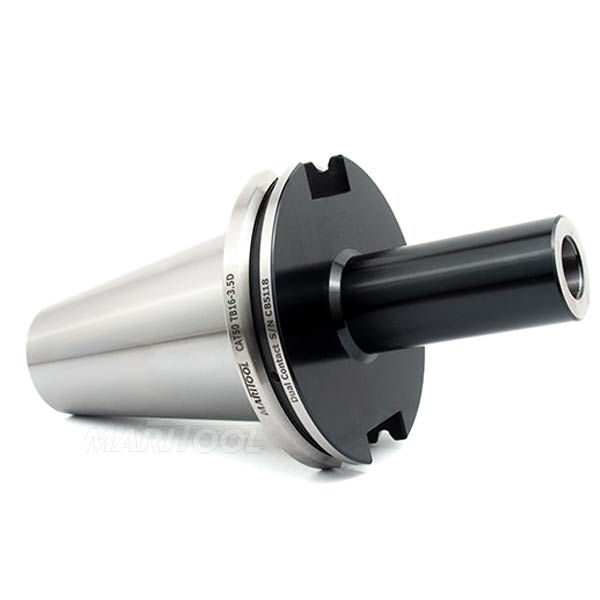

- MariTool Part# is CAT50-TB16-3.5D
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp. and is used only for identification purposes.
Compatible with BIG-PLUS® spindles, but not licensed.
