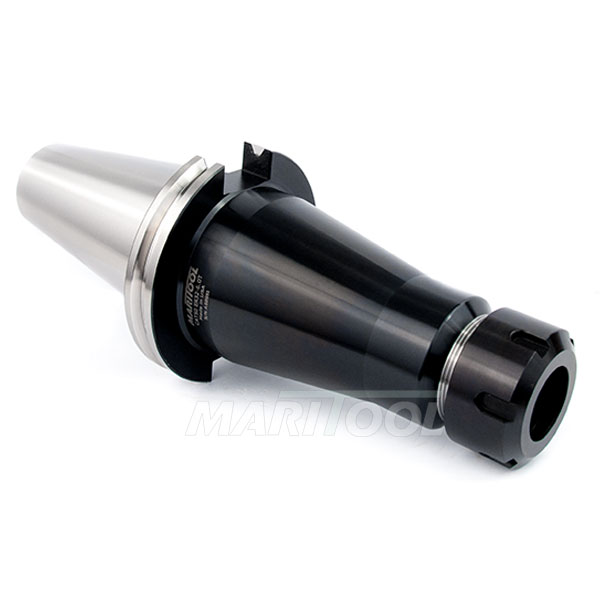

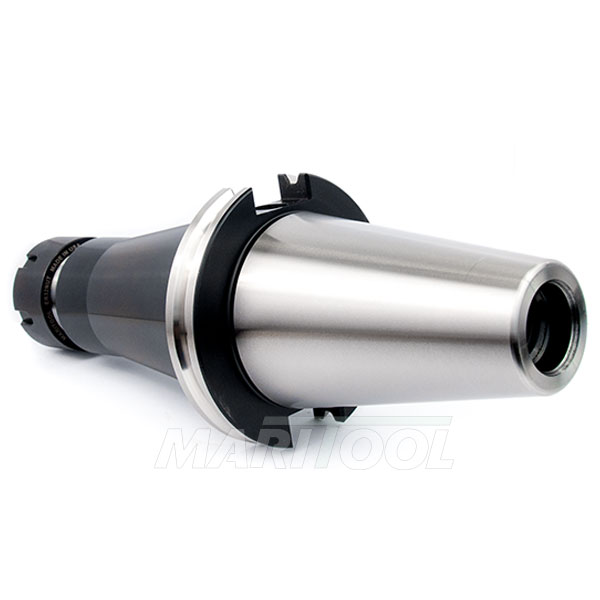

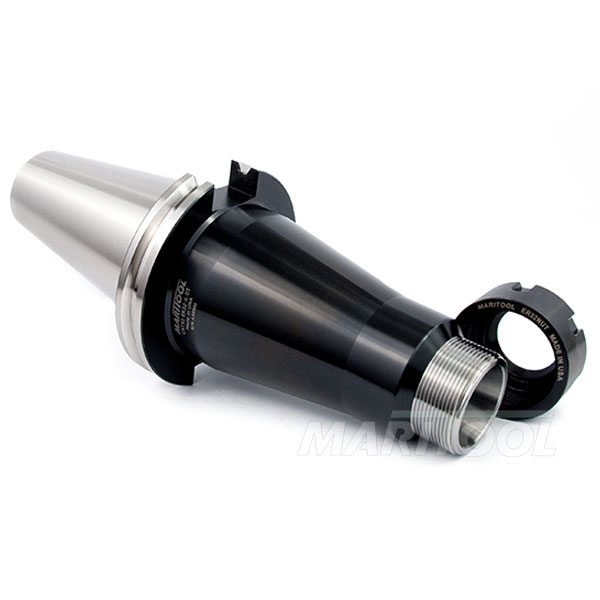

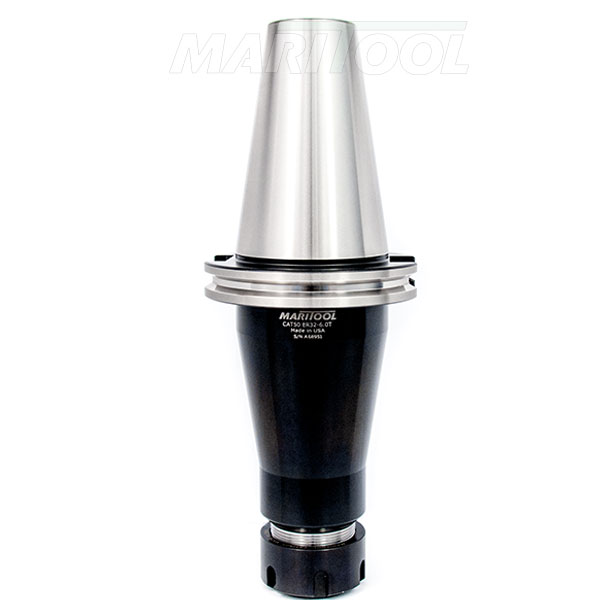

CAT50 ER32 6.0 TAPERED NOSE TOOL HOLDER $211.35
CAT50 ER32 6.0 TAPERED NOSE TOOL HOLDER
Click to enlarge

CAT50 ER32 6.0 TAPERED NOSE TOOL HOLDER
Click to enlarge 		CAT50 ER32 6.0 TAPERED NOSE TOOL HOLDER
Click to enlarge
CAT50 ER32 6.0 TAPERED NOSE TOOL HOLDER
Click to enlarge
Item No. CAT50-ER32-6.0T
Price: $211.35
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT50-ER32-6.0T
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Collet Chuck accepts all ER32 collets
  • Works on all CAT 50 machines
  • Threaded for stop screw type 2 (not included)
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 152.4mm (6.0 inches)
  • Concentricity is less than .0001 at collet face
  • Collet nut is included
  • Rear thread for pull stud is 1" X 8
  • MariTool Part# is CAT50-ER32-6.0
