CAT40-SSA25-3.0 Slitting Saw Arbor Holder $192.25

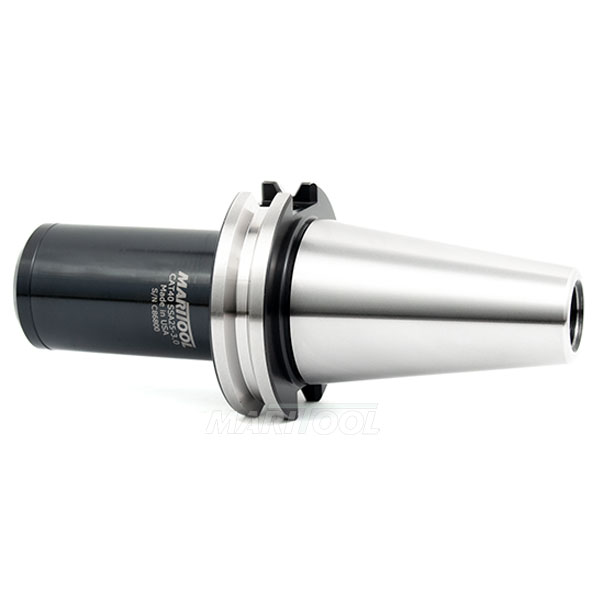

CAT40-SSA25-3.0 Slitting Saw Arbor Holder
Click to enlarge

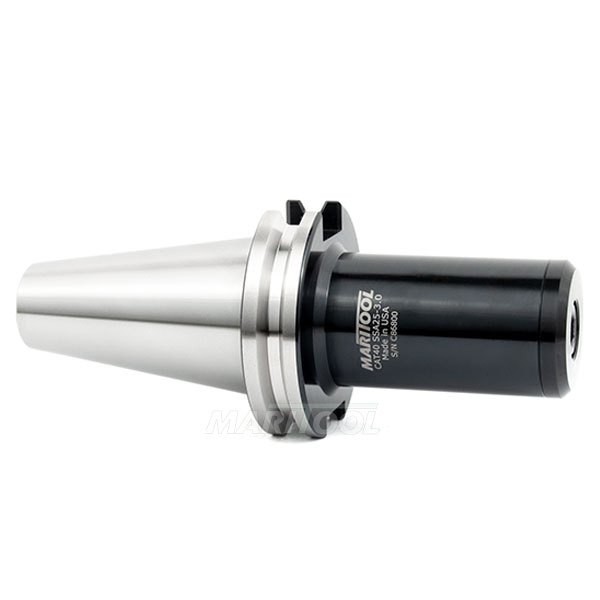

CAT40-SSA25-3.0 Slitting Saw Arbor Holder

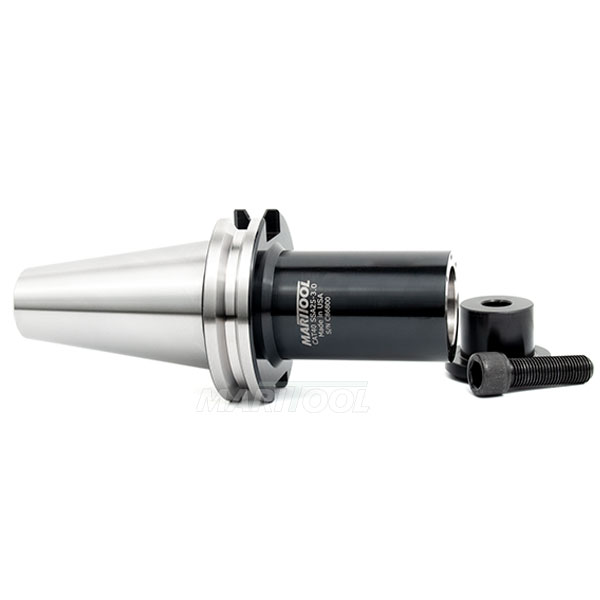

Click to enlarge 		CAT40-SSA25-3.0 Slitting Saw Arbor Holder
Click to enlarge

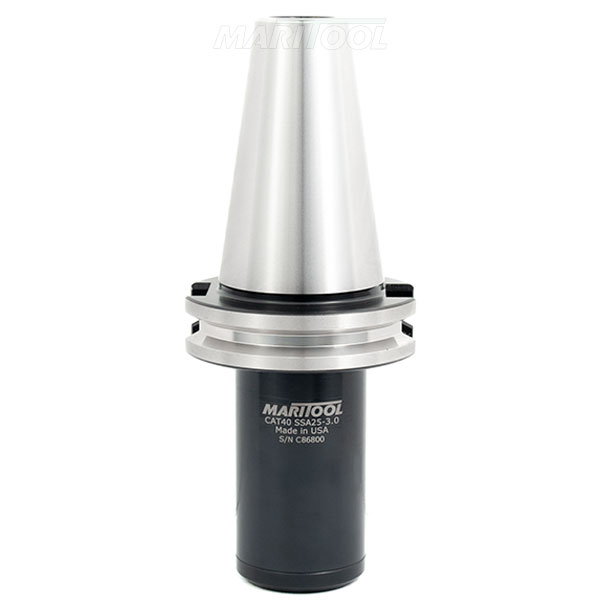

CAT40-SSA25-3.0 Slitting Saw Arbor Holder
Click to enlarge
Item No. CAT40-SSA25-3.0
Price: $192.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Keyless slitting saw holder for saws with 25mm arbor hole
  • Concentricity is less than .0001 at arbor hole
  • Balanced to G2.5 @20,000 rpms
  • Gage length is 3.0 inches
  • End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
  • Screw for cap is 3/8-24 X 1-1/4 long
  • Saw cap is 1/4 Inch thick and 25mm diameter boss is .700 long
  • Nose dia and saw cap is 1.417 Inches diameter
  • Replacement cap is available SSA25mm-cap
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-SSA25-3.0
Product Specifications
Arbor Diameter:  25mm
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  < .0001 at Arbor Hole
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Nose Diameter:  1.417
Rear Thread:  5/8-11
Taper:  CAT40
Weight:  2.8
