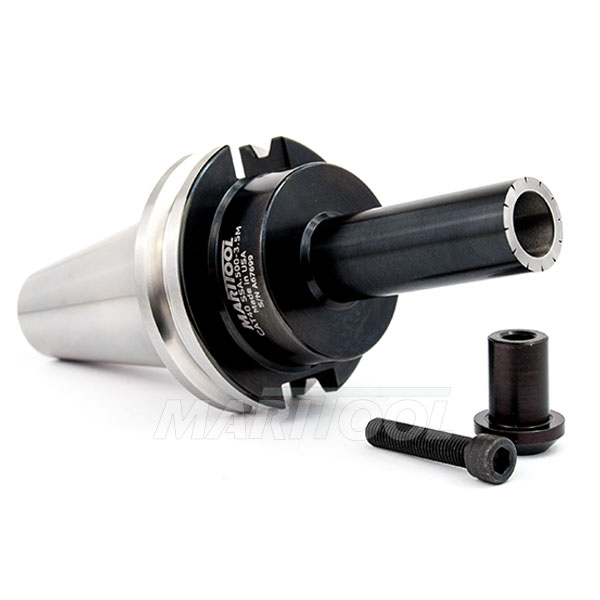

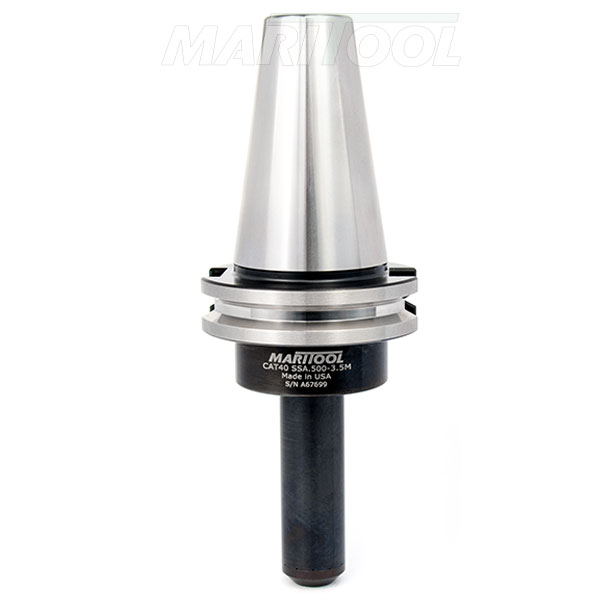

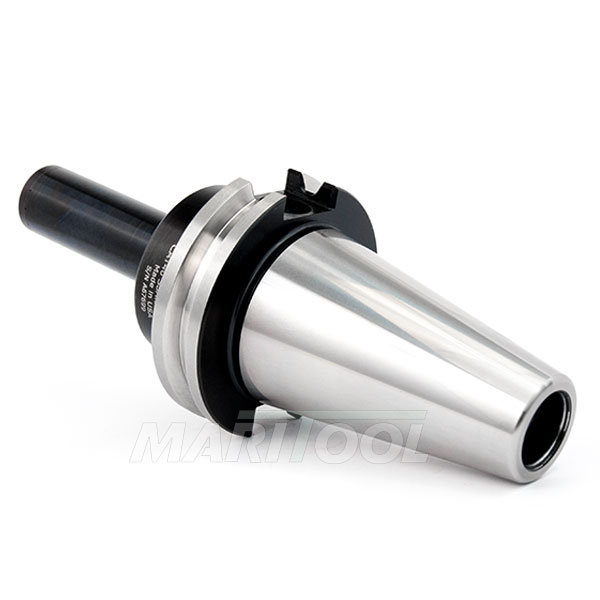

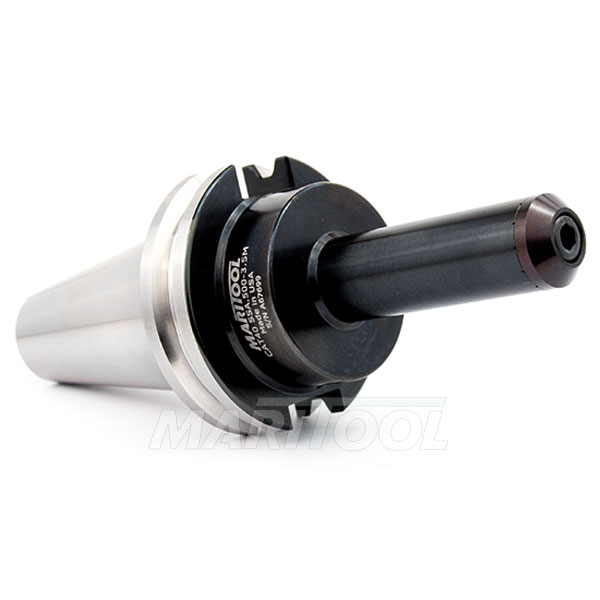

CAT40-SSA.500-3.5M Slim Nose Slitting Saw Arbor Holder $184.40
CAT40-SSA.500-3.5M Slim Nose Slitting Saw Arbor Holder
Click to enlarge

CAT40-SSA.500-3.5M Slim Nose Slitting Saw Arbor Holder
Click to enlarge 		CAT40-SSA.500-3.5M Slim Nose Slitting Saw Arbor Holder
Click to enlarge
CAT40-SSA.500-3.5M Slim Nose Slitting Saw Arbor Holder
Click to enlarge
Item No. CAT40-SSA.500-3.5M
Price: $184.40
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Available Downloads for CAT40-SSA.500-3.5M
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Keyless slitting saw holder, for saws with .500" arbor hole
  • Concentricity is less than .0001 at arbor hole
  • Balanced to G2.5 @20,000 rpms
  • Gage length is 3.5 inches
  • End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
  • Screw for cap is 1/4-28 X 1-1/4 long
  • Saw cap is 1/4 thick and .4999 diameter boss is .700 long
  • Nose dia and saw cap is .750 Inches diameter
  • Replacement cap is available SSA.500-cap-M
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-SSA.500-3.5M
Product Specifications
Arbor Diameter:  .500
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  < .0001 at Arbor Hole
Finish:  Black Oxide
Gage Length:  3.5
Material:  Hardened Alloy Steel
Nose Diameter:  .750
Rear Thread:  5/8-11
Taper:  CAT40
