CAT40 1.25-3.0 SIDE MILL ARBOR TOOL HOLDER $165.65

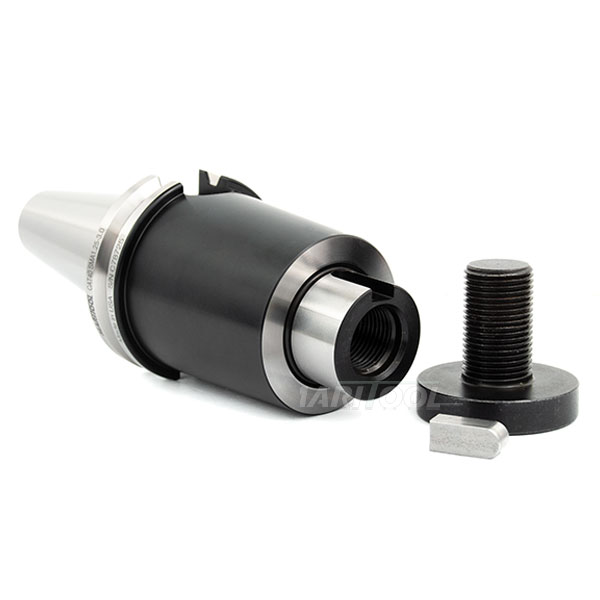

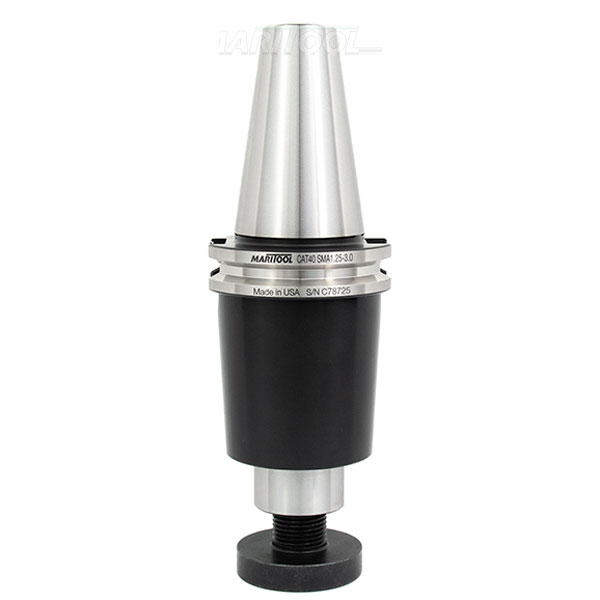

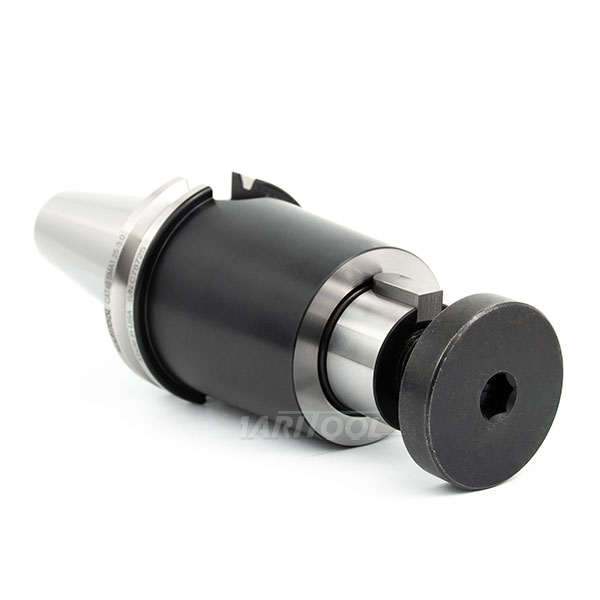

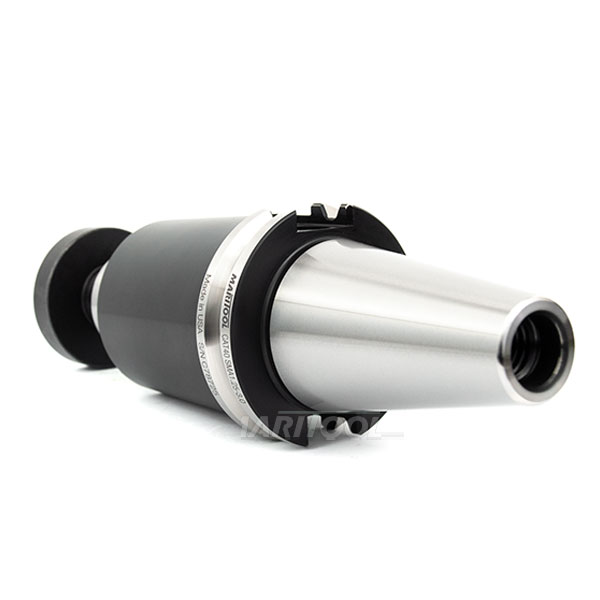

CAT40 1.25-3.0 SIDE MILL ARBOR TOOL HOLDER
Click to enlarge

CAT40 1.25-3.0 SIDE MILL ARBOR TOOL HOLDER
Click to enlarge 		CAT40 1.25-3.0 SIDE MILL ARBOR TOOL HOLDER
Click to enlarge
CAT40 1.25-3.0 SIDE MILL ARBOR TOOL HOLDER
Click to enlarge
Item No. CAT40-SMA1.25-3.0
Price: $165.65
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Arbor diameter is 1.25 inches
  • Gage length is 3.0 inches
  • Nose diameter is 2.0 Inches
  • Concentricity is less than .0002 at face and arbor
  • Made from hardened alloy steel
  • All critical surfaces precision ground
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Lock screw thread is 3/4-16
  • Width of removable drive key is .312 inches
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-SMA1.25-3.0
Product Specifications
Arbor Diameter:  1.25
Balance Spec:  G6.3 @ 8,000 rpms
Concentricity:  < .0002
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Nose Diameter:  2.0
Rear Thread:  5/8-11
Taper:  CAT40
Weight:  4.0 lbs
