CAT40 3/4 TAPERED NOSE SHRINK FIT TOOL HOLDER .750-4.5T $197.25

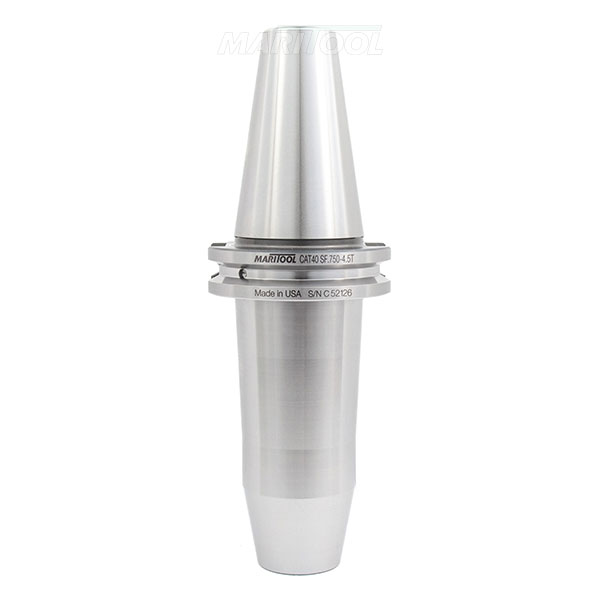

CAT40 3/4 TAPERED NOSE SHRINK FIT TOOL HOLDER .750-4.5T
Click to enlarge

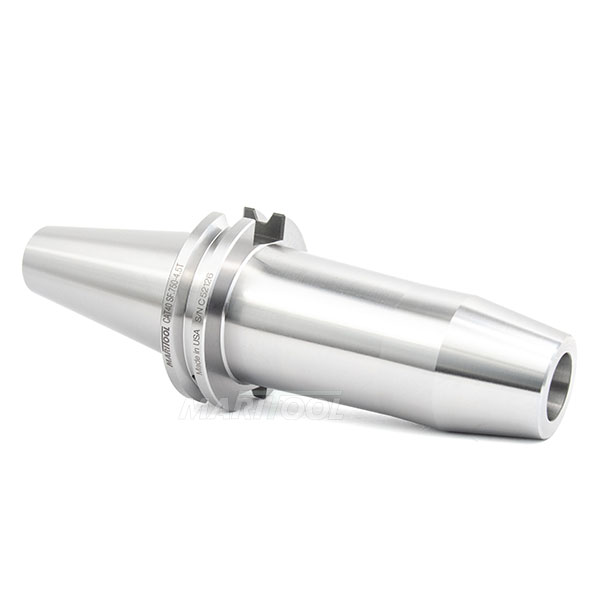

CAT40 3/4 TAPERED NOSE SHRINK FIT TOOL HOLDER .750-4.5T

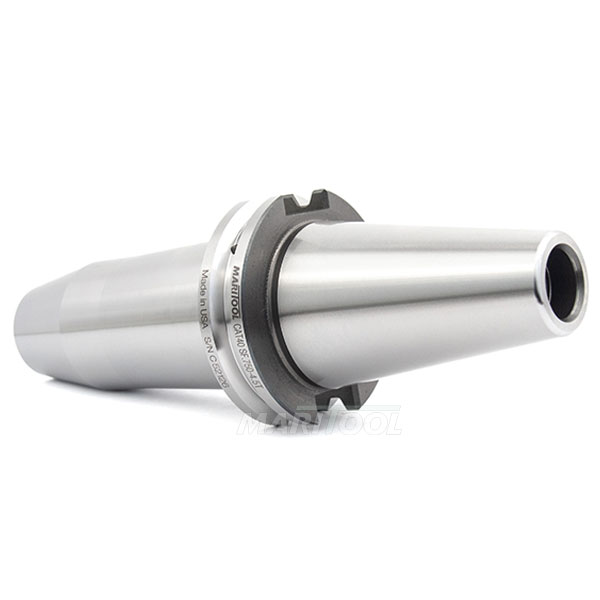

Click to enlarge 		CAT40 3/4 TAPERED NOSE SHRINK FIT TOOL HOLDER .750-4.5T
Click to enlarge
Item No. CAT40-SF.750-4.5T
Price: $197.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-SF.750-4.5T
STP file  DXF file  DWG file  PDF file
Product Info

View complete catalog page

  • Works on all CAT40 Machines
  • This Shrink Fit Tool Holder accepts all .750 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from H-13 alloy steel hardened to 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 4.5 inches
  • Nose diameter is 1.56 Inches
  • Max socket depth is 2.5 Inches
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is CAT40-SF.750-4.5T
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Gage Length:  4.5 Tapered
Material:  Hardened H-13 Alloy Steel
Nose Diameter:  1.56
Rear Thread:  5/8-11
Shank Size:  .750
Taper:  CAT40
