CAT40 1/8 SHRINK FIT TOOL HOLDER .125-3.5 $200.00

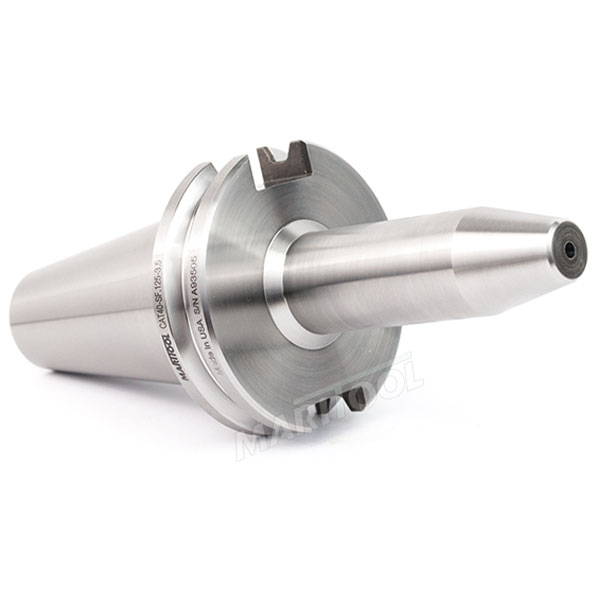

CAT40 1/8 SHRINK FIT TOOL HOLDER .125-3.5
Click to enlarge

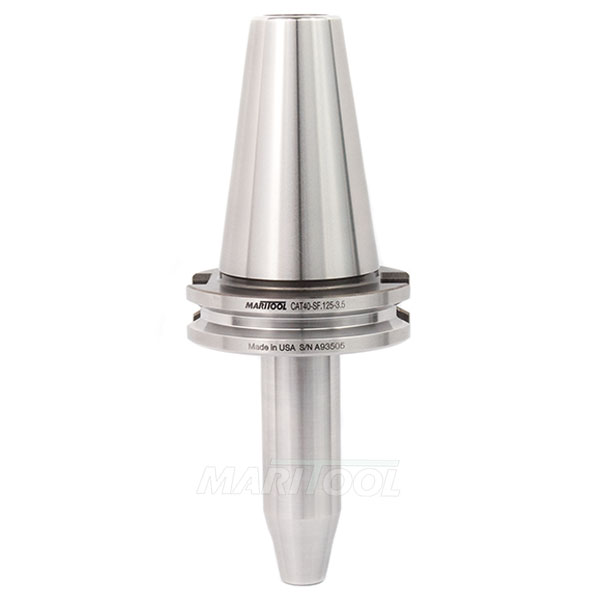

CAT40 1/8 SHRINK FIT TOOL HOLDER .125-3.5

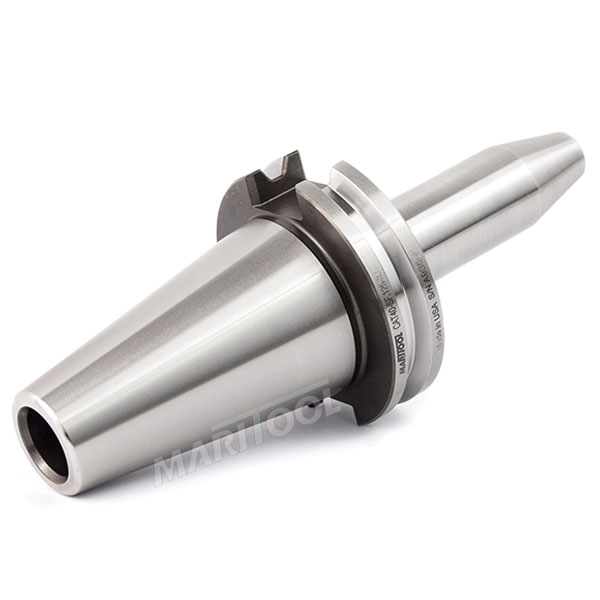

Click to enlarge 		CAT40 1/8 SHRINK FIT TOOL HOLDER .125-3.5
Click to enlarge
Item No. CAT40-SF.125-3.5
Price: $200.00
Shipping: Contact us
Quantity:

Please contact us for a Shipping Estimate
Available Downloads for CAT40-SF.125-3.5
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Works on all CAT40 Machines
  • This Shrink Fit Tool Holder accepts all .125 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from H-13 alloy steel hardened to 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.5 inches
  • Nose diameter is .870 Inches
  • Max socket depth is unrestricted
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is CAT40-SF.125-3.5
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Gage Length:  3.5
Material:  Hardened H-13 Alloy Steel
Nose Diameter:  .870
Rear Thread:  5/8-11
Shank Size:  .125
Taper:  CAT40
