CAT40 16-2.5 METRIC FACE MILL TOOL HOLDER $119.75

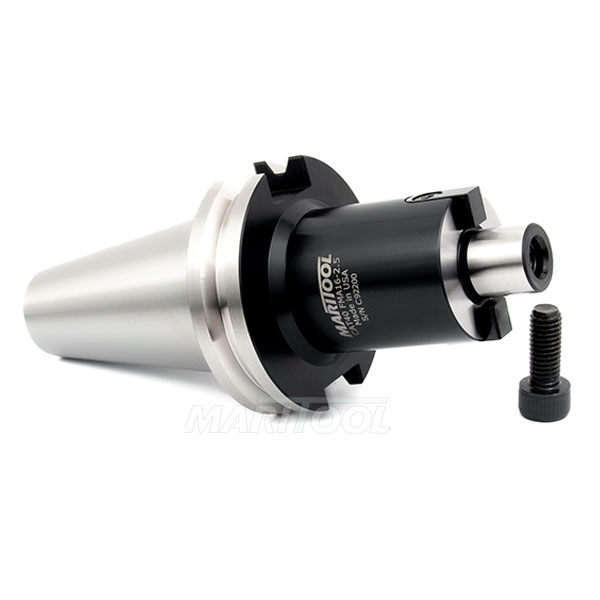

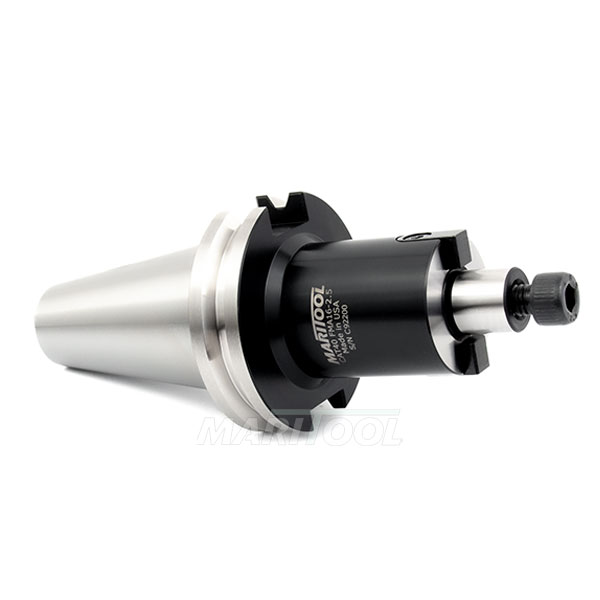

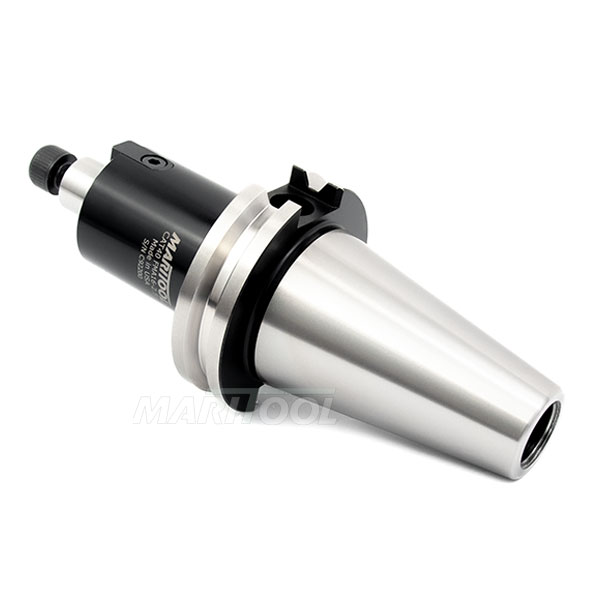

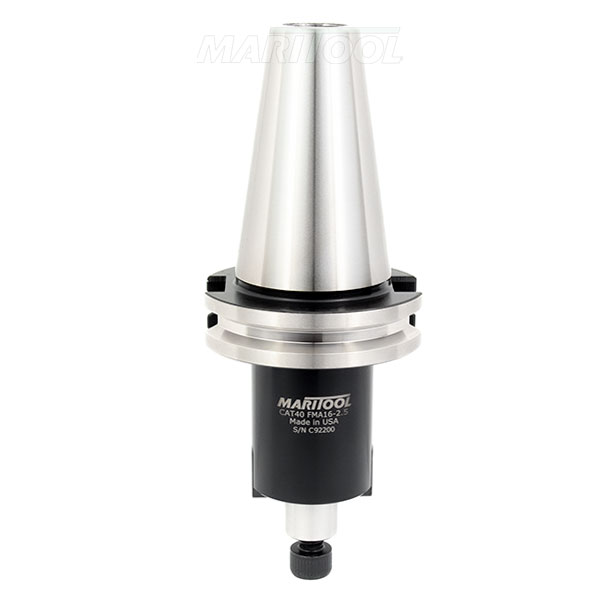

CAT40 16-2.5 METRIC FACE MILL TOOL HOLDER
Click to enlarge

CAT40 16-2.5 METRIC FACE MILL TOOL HOLDER
Click to enlarge 		CAT40 16-2.5 METRIC FACE MILL TOOL HOLDER
Click to enlarge
CAT40 16-2.5 METRIC FACE MILL TOOL HOLDER
Click to enlarge
Item No. CAT40-FMA16-2.5
Price: $119.75
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Product Info

View complete catalog page

  • Arbor diameter is 16mm
  • Made from hardened alloy steel
  • Concentricity is less than .0002 at face and arbor
  • All critical surfaces precision ground
  • Balanced to G2.5 at 20,000 rpms
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Gage length is 2.5 inches
  • Nose diameter is 1.4 Inches
  • Lock screw thread is M8-1.25
  • Includes M8-1.25x25 SHCS lock screw
  • Width of removable drive keys are .312 inches
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# isCAT40-FMA16-2.5
Product Specifications
Arbor Diameter:  16mm
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.5
Material:  Hardened Alloy Steel
Nose Diameter:  1.4
Rear Thread:  5/8-11
Taper:  CAT40
Weight:  2.4
