CAT40 .750-2.0 SLIM NOSE FACE MILL TOOL HOLDER $117.80

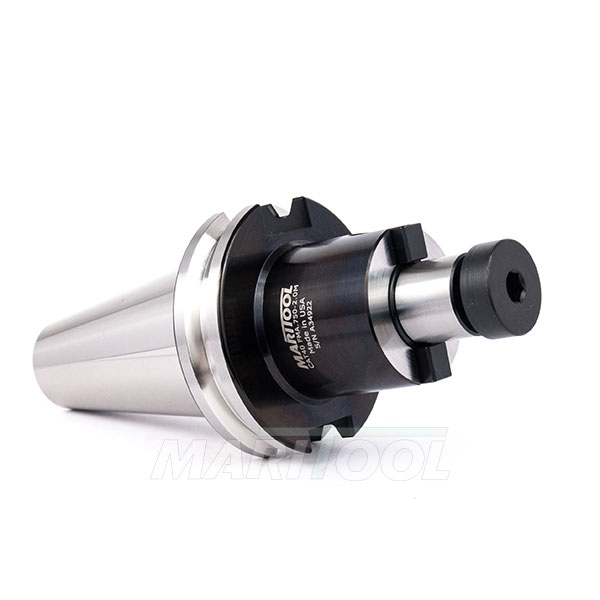

CAT40 .750-2.0 SLIM NOSE FACE MILL TOOL HOLDER
Click to enlarge

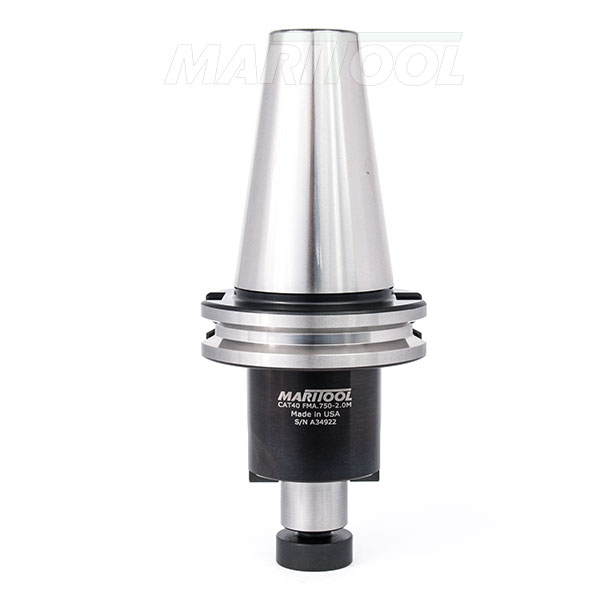

CAT40 .750-2.0 SLIM NOSE FACE MILL TOOL HOLDER
Click to enlarge 		CAT40 .750-2.0 SLIM NOSE FACE MILL TOOL HOLDER
Click to enlarge

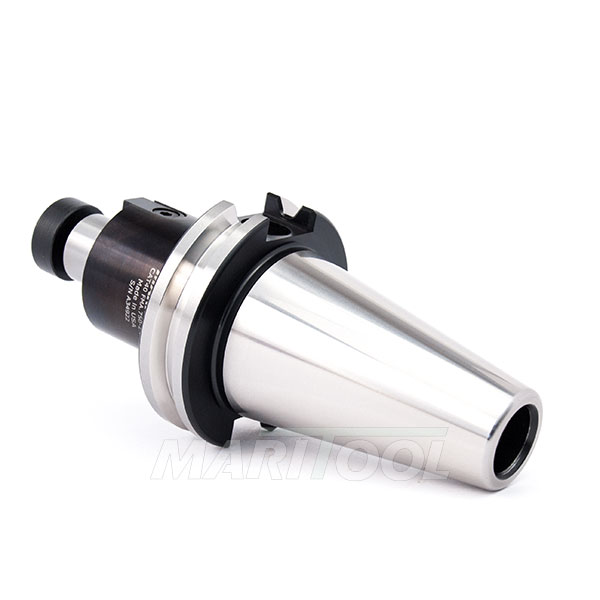

CAT40 .750-2.0 SLIM NOSE FACE MILL TOOL HOLDER
Click to enlarge
Item No. CAT40-FMA.750-2.0M
Price: $117.80
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-FMA.750-2.0M
DWG file  STP file  PDF file  DXF file
Product Info

View complete catalog page

  • Arbor diameter is .750 inches
  • Made from alloy steel hardened to 54 - 56rc
  • Concentricity is less than .0001 at face and arbor
  • All critical surfaces precision ground
  • Balanced to G2.5 at 20,000 rpms
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Gage length is 2.0 inches
  • Nose diameter is 1.48 Inches
  • Lock screw thread is 3/8-24

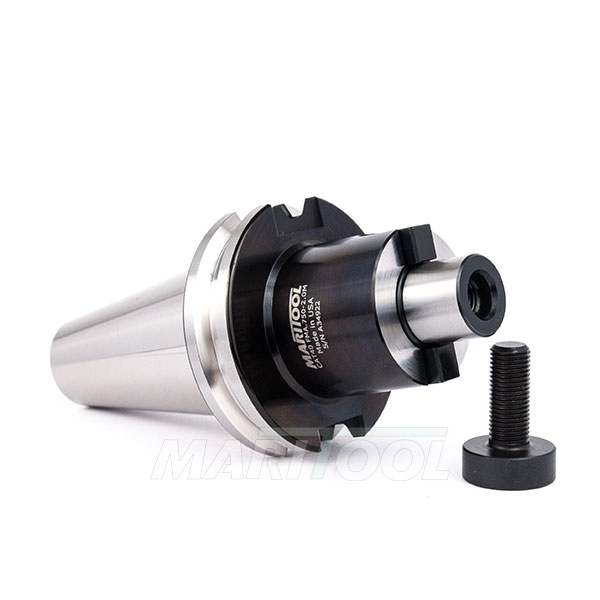

  • Includes large head 3/8-24 lock screw pictured and a standard 3/8-24 x 1.0 SHCS
  • Width of removable drive keys are .312 inches
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-FMA.750-2.0M
Product Specifications
Arbor Diameter:  .750
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.00
Material:  Hardened Alloy Steel
Nose Diameter:  1.48
Rear Thread:  5/8-11
Taper:  CAT40
