CAT40 1.0-3.0 FACE MILL TOOL HOLDER $139.15

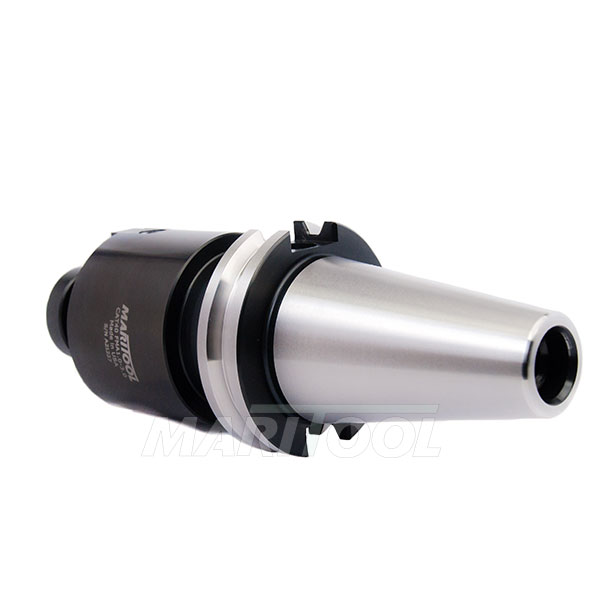

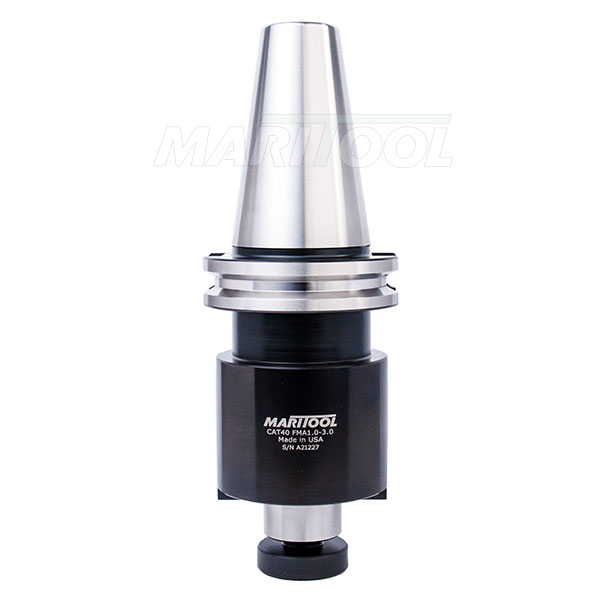

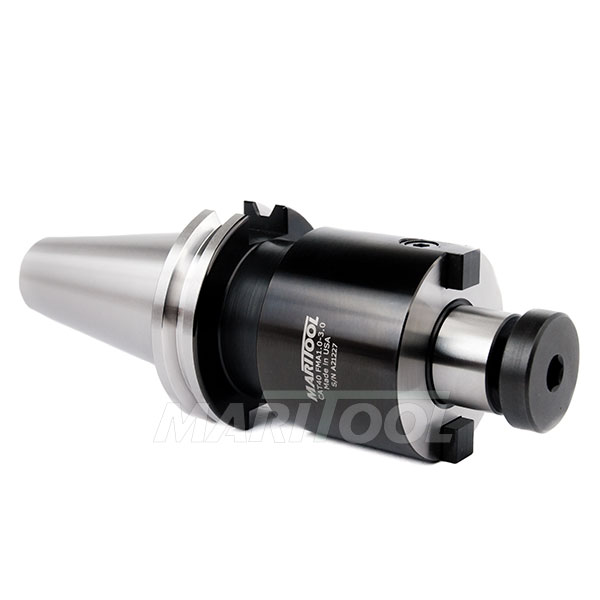

CAT40 1.0-3.0 FACE MILL TOOL HOLDER
Click to enlarge

CAT40 1.0-3.0 FACE MILL TOOL HOLDER
Click to enlarge 		CAT40 1.0-3.0 FACE MILL TOOL HOLDER
Click to enlarge
CAT40 1.0-3.0 FACE MILL TOOL HOLDER
Click to enlarge
Item No. CAT40-FMA1.0-3.0
Price: $139.15
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-FMA1.0-3.0
DWG file  STP file  DXF file  PDF file
Product Info

View complete catalog page

  • Arbor diameter is 1.00 inches
  • Gage length is 3.0 inches
  • Nose diameter is 2.18 Inches
  • Made from alloy steel hardened to 54 - 58rc
  • Concentricity is less than .0002 at face and arbor
  • All critical tool holder surfaces precision ground
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Lock screw thread is 1/2-20

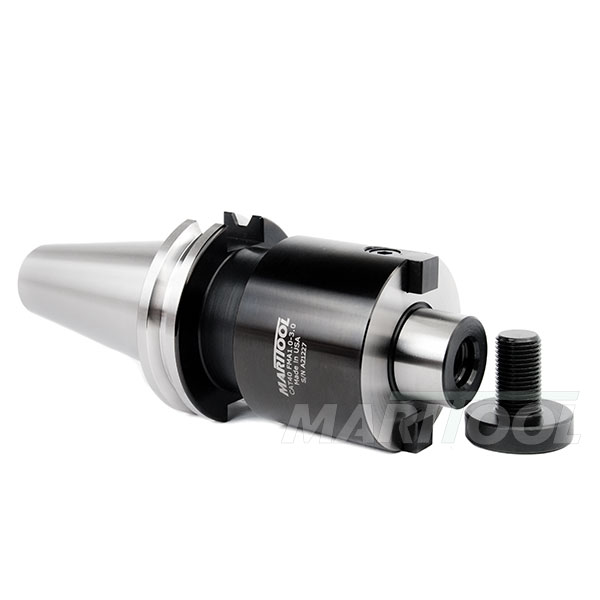

  • Includes large head 1/2-20 lock screw pictured and a standard 1/2-20 x 1.0 SHCS
  • Width of removable drive keys are .370 inches
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-FMA1.0-3.0
Product Specifications
Arbor Diameter:  1.00
Balance Spec:  G2.5 @ 20,000 rpms
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.00
Material:  Hardened Alloy Steel
Nose Diameter:  2.18
Rear Thread:  5/8-11
Taper:  CAT40
