CAT40 SK16 2.0 COLLET CHUCK TOOL HOLDER $137.20

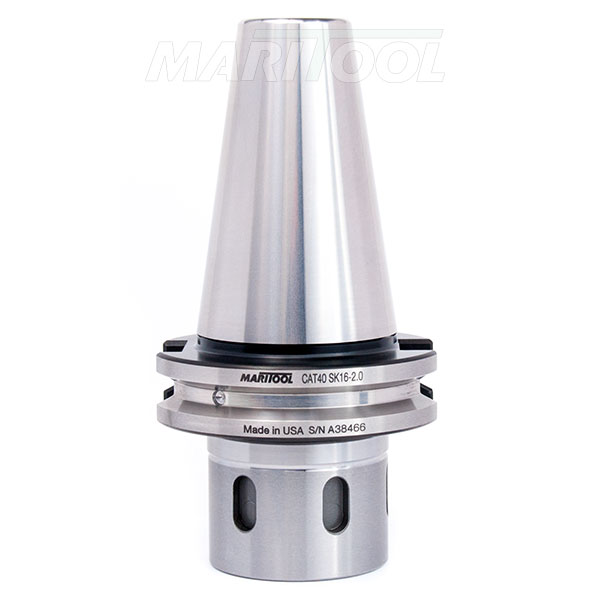

CAT40 SK16 2.0 COLLET CHUCK TOOL HOLDER
Click to enlarge

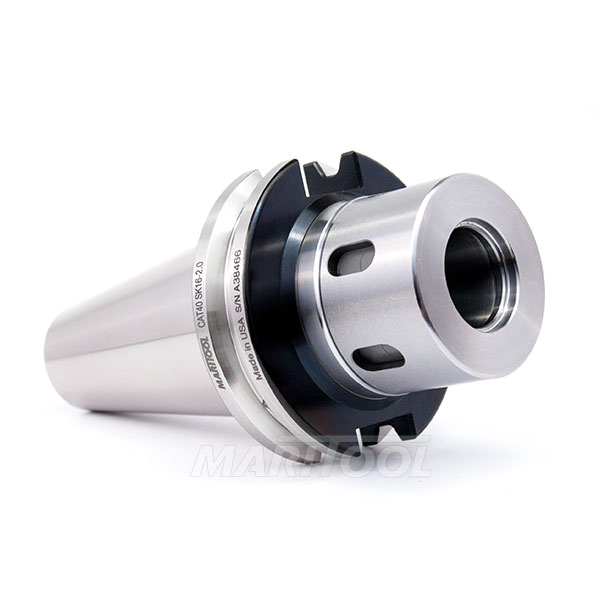

CAT40 SK16 2.0 COLLET CHUCK TOOL HOLDER

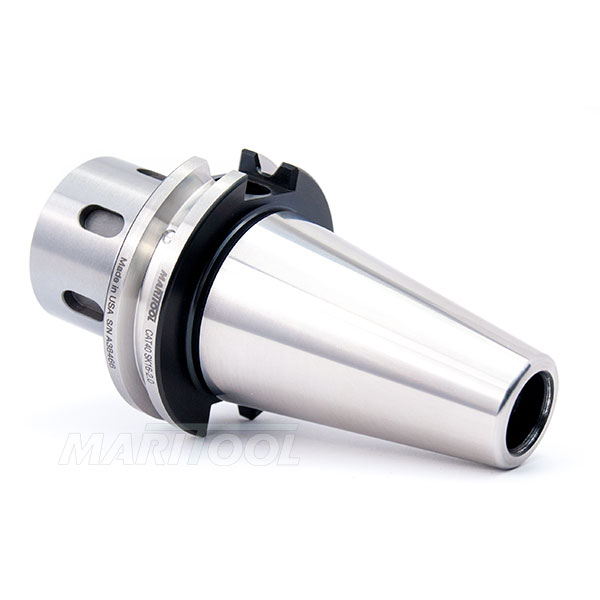

Click to enlarge 		CAT40 SK16 2.0 COLLET CHUCK TOOL HOLDER
Click to enlarge

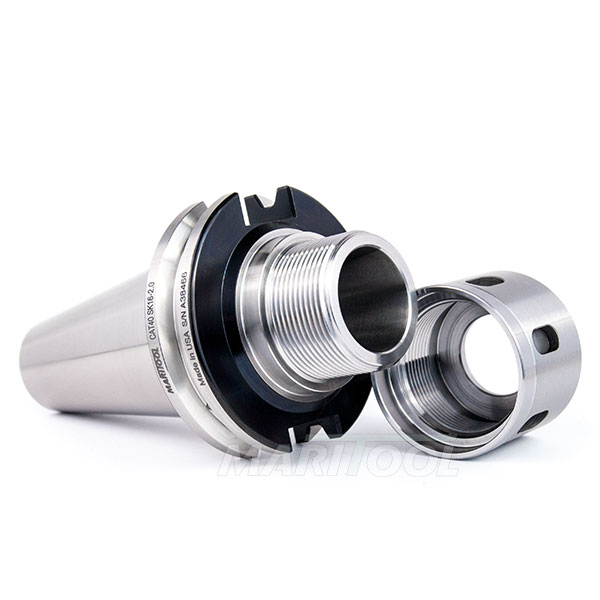

CAT40 SK16 2.0 COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-SK16-2.0
Price: $137.20
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-SK16-2.0
STP file  DWG file  DXF file  PDF file
Product Info

View complete catalog page

  • Torque Ratings for SK16 Collet Nuts can be found here
  • Collet Chuck accepts all SK16 collets
  • Works on all CAT 40 machines
  • Threaded for stop screw type 2 (not included)
  • All critical tool holder surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Tool Holder is balanced to G2.5 at 20,000 rpms
  • Gage length is 2.0 inches (50mm)
  • Concentricity is less than .0001 at collet face
  • Collet nut is included
  • Uses wrench part# ER25-Bwrench (not included)
  • Coolant thru capability
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-SK16-2.0
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .09-.630 inches
Collet Size:  SK16
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40
