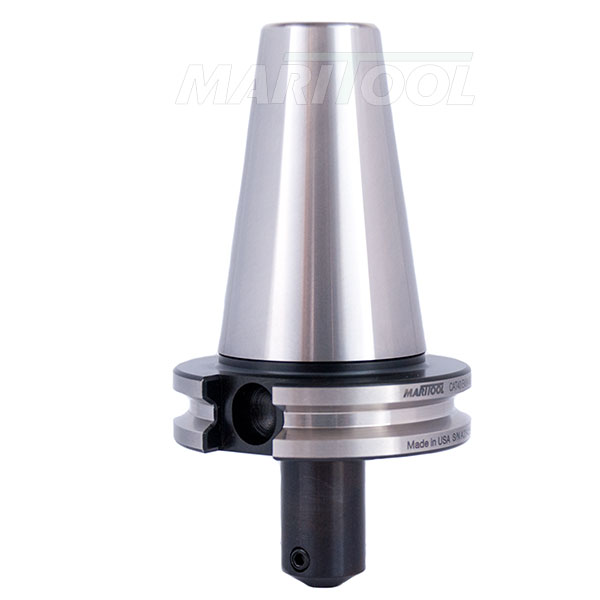

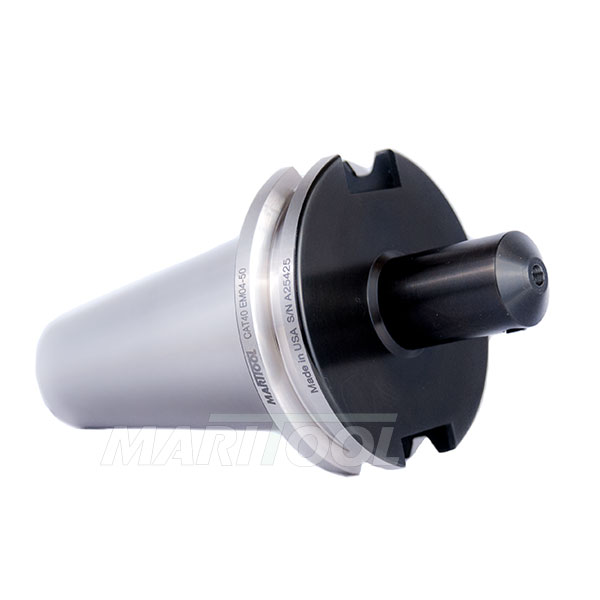

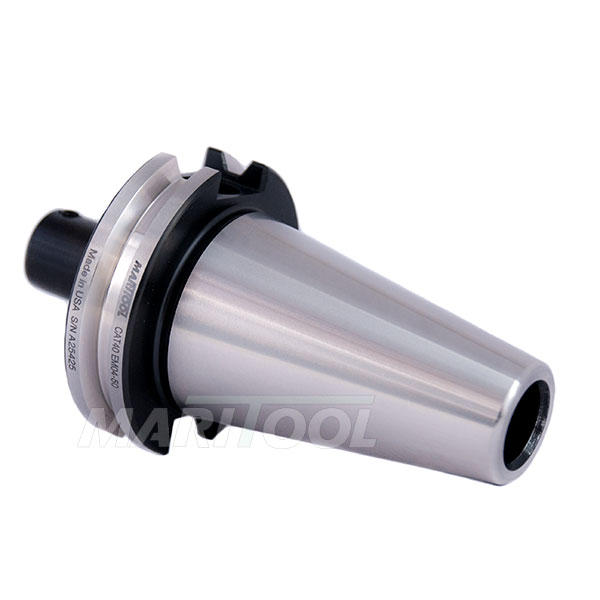

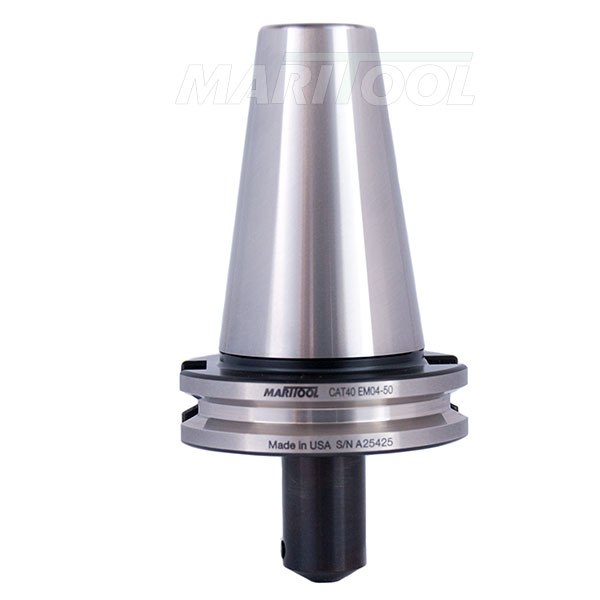

CAT40 4mm END MILL TOOL HOLDER 04-50 $99.65
CAT40 4mm END MILL TOOL HOLDER 04-50
Click to enlarge

CAT40 4mm END MILL TOOL HOLDER 04-50
Click to enlarge 		CAT40 4mm END MILL TOOL HOLDER 04-50
Click to enlarge
CAT40 4mm END MILL TOOL HOLDER 04-50
Click to enlarge
Item No. CAT40-EM04-50
Price: $99.65
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-EM04-50
DWG file  STP file  DXF file  PDF file
Product Info

View complete catalog page

  • This holder accepts all 4mm (.1575 inch) shank tooling
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Coolant thru capable
  • Gage length is 50mm (2.0 inches)
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-EM04-50
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Finish:  Black Oxide
Gage Length:  50mm
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Shank Size:  4mm
Taper:  CAT40
