Hydraulic Holders have the best dampening abilities of all holders resulting in....
- Minimal noise emissions
- Increased tool life
- Improved surface finish and less chatter
- Less chipping of sharp corner tooling

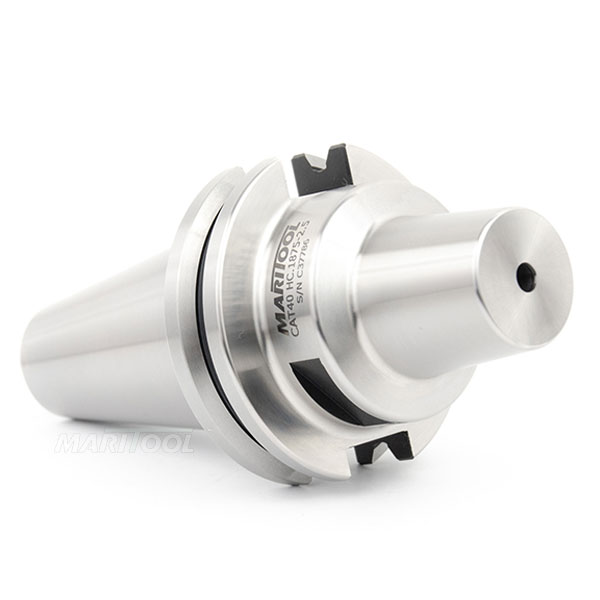

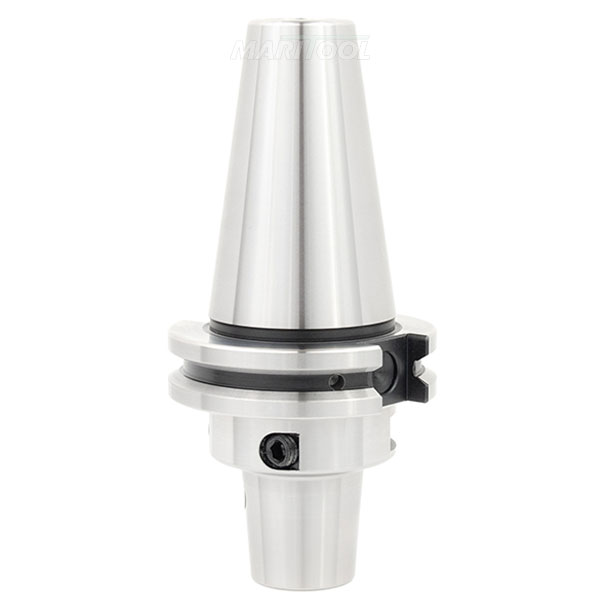

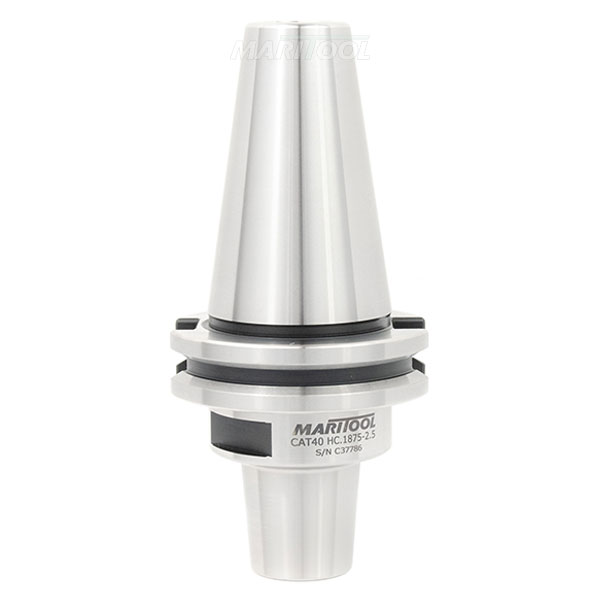

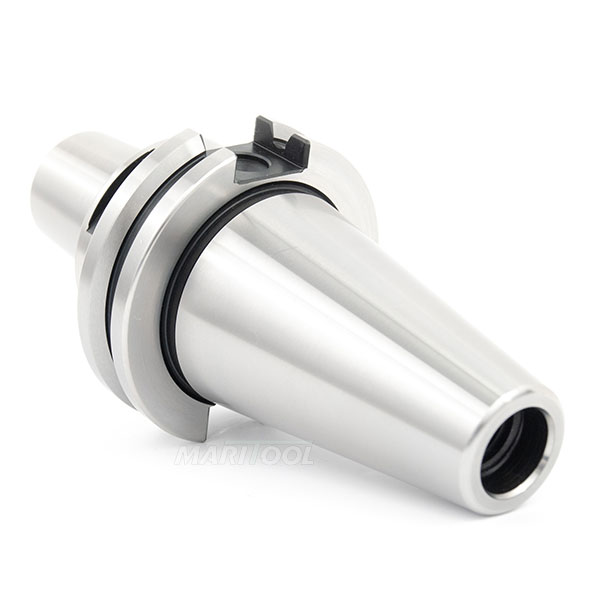

Product Details
- Works on all CAT40 Machines
- These holders are maintenance free
- Fast tool change, simply insert tool and tighten screw until it stops
- This Tool Holder has a thru hole, coolant thru capable
- Maximum operating temperature 120 deg Fahrenheit
- Super accurate .0001 TIR or less at 4x diameter
- Balanced to G2.5 @ 25,000 rpms
- For .1875 shank tooling only
- Unlimited shank depth, this holder does not have a rear stop
- Shank must be inserted min .500" deep for proper clamping
- 4mm allen key is not included but available here
- Gage length is 2.5 Inches
- View CAT40 Pull Studs
