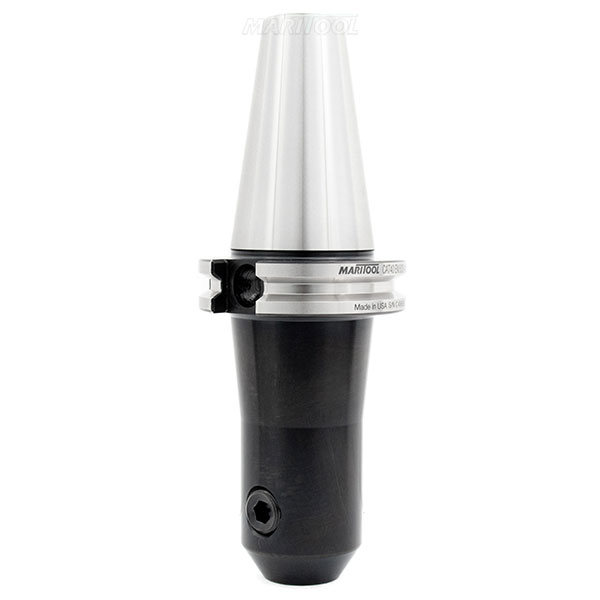

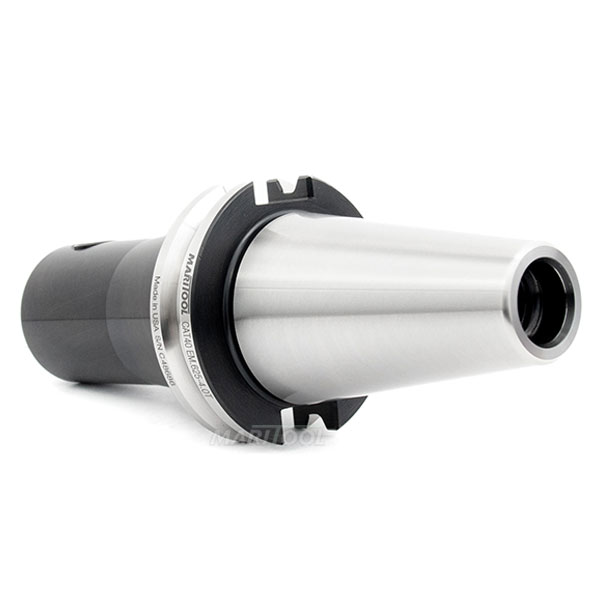

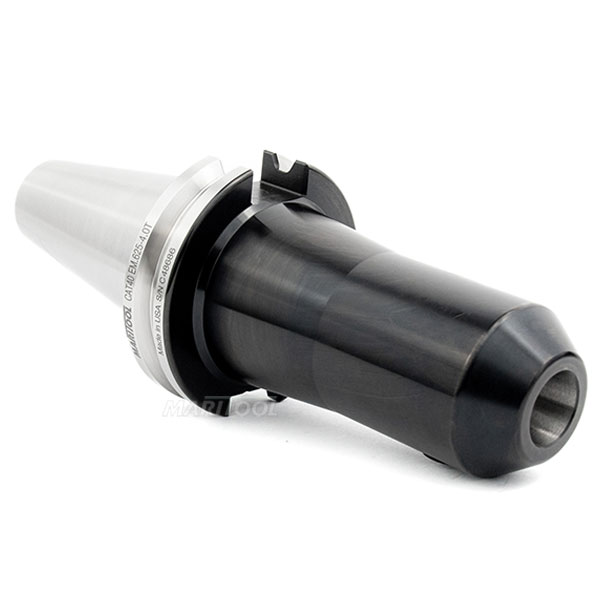

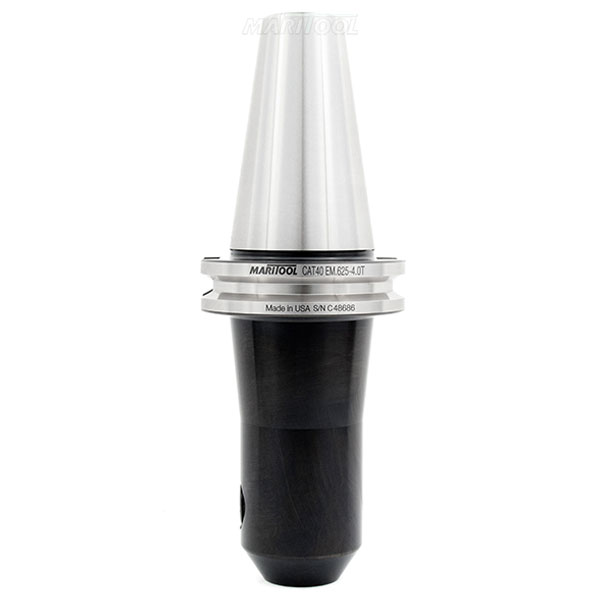

CAT40 5/8 TAPERED NOSE END MILL HOLDER .625-4.0T $100.55
CAT40 5/8 TAPERED NOSE END MILL HOLDER .625-4.0T
Click to enlarge


CAT40 5/8 TAPERED NOSE END MILL HOLDER .625-4.0T
Click to enlarge
CAT40 5/8 TAPERED NOSE END MILL HOLDER .625-4.0T
Click to enlarge
CAT40 5/8 TAPERED NOSE END MILL HOLDER .625-4.0T
Click to enlarge
Item No. CAT40-EM.625-4.0T
Price: $100.55
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.

Available Downloads for CAT40-EM.625-4.0T
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Works on all CAT 40 Machines
  • This tool holder accepts all .625 shank tooling
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 – 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 4.0 inches, Tapered
  • Nose diameter is 1.5 inches
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-EM.625-4.0T

Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Finish:  Black Oxide
Gage Length:  4.0 Tapered
Material:  Hardened Alloy Steel
Nose Diameter:  1.5
Rear Thread:  5/8-11
Shank Size:  .625
Taper:  CAT40
