CAT40 ER40 3.0 COLLET CHUCK TOOL HOLDER $134.15

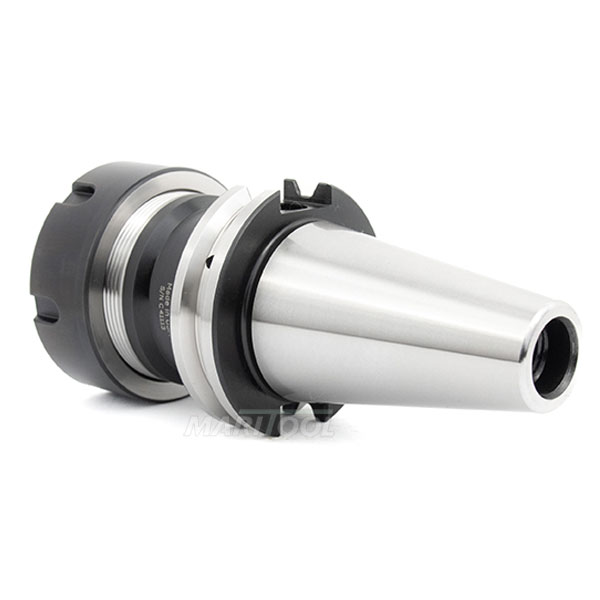

CAT40 ER40 3.0 COLLET CHUCK TOOL HOLDER
Click to enlarge

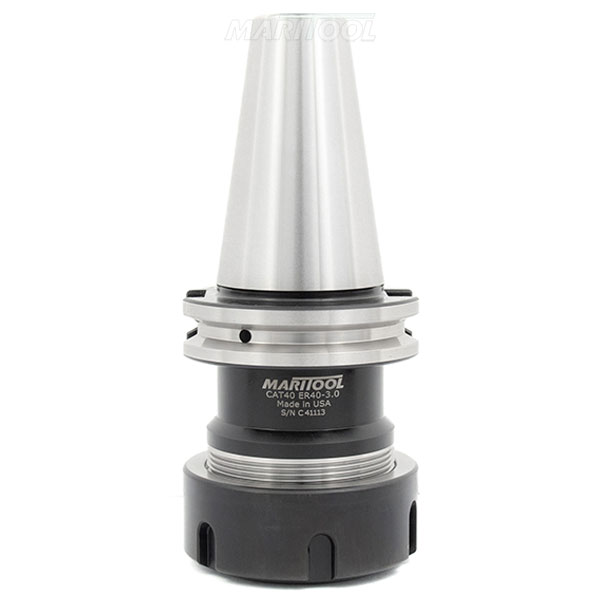

CAT40 ER40 3.0 COLLET CHUCK TOOL HOLDER

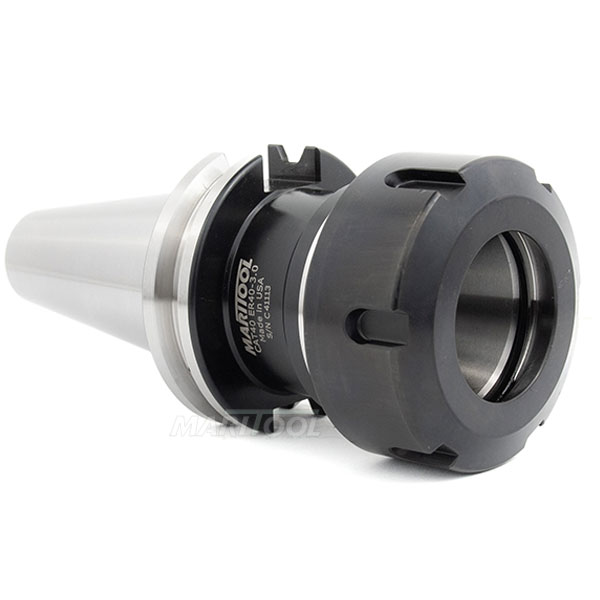

Click to enlarge 		CAT40 ER40 3.0 COLLET CHUCK TOOL HOLDER
Click to enlarge

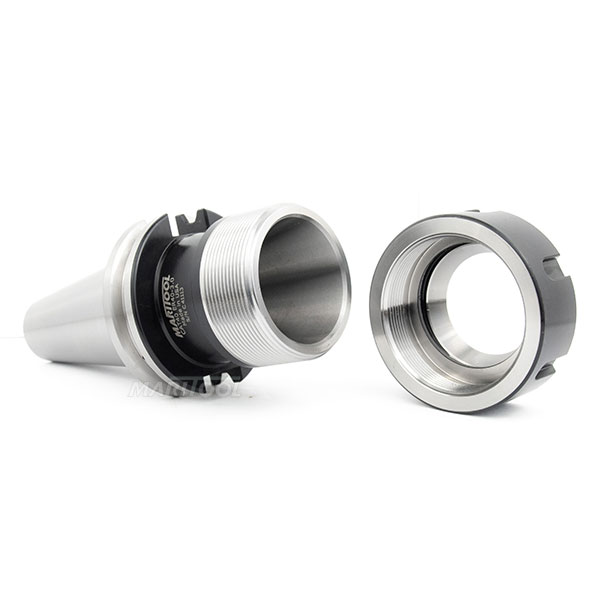

CAT40 ER40 3.0 COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-ER40-3.0
Price: $134.15
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-ER40-3.0
STP file  DWG file  DXF file  PDF file
Product Info

View complete catalog page

  • Tool Holder accepts all ER40 collets and works on all CAT 40 Machines
  • Threaded for stop screw type 2 (not included)
  • Made from alloy steel hardened to 54 - 56rc.
  • Balanced to G2.5 at 20,000 rpms
  • Concentricity is less than .0001 at collet face.
  • All critical tool holder surfaces precision ground.
  • Coolant through capability
  • Gage length 3.00 inches
  • Collet nut is included
  • Rear thread for pull stud is 5/8–11
  • MariTool Part# is CAT40ER40-3.0
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Grip Range:  .078-1.1875 inches
Collet Size:  ER 40
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40
