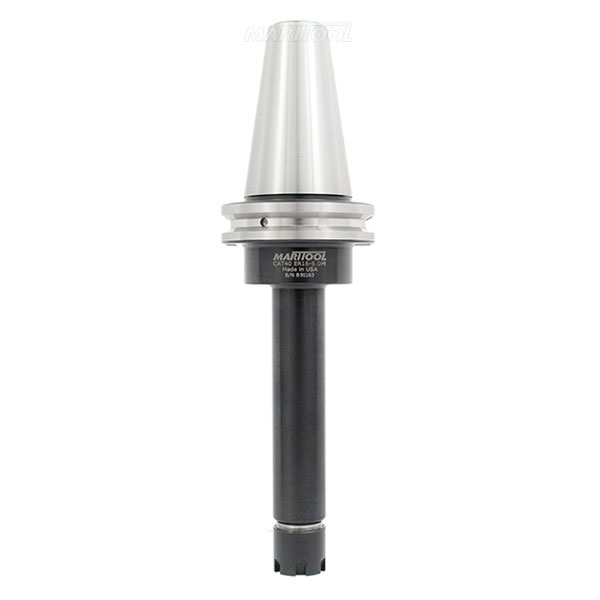

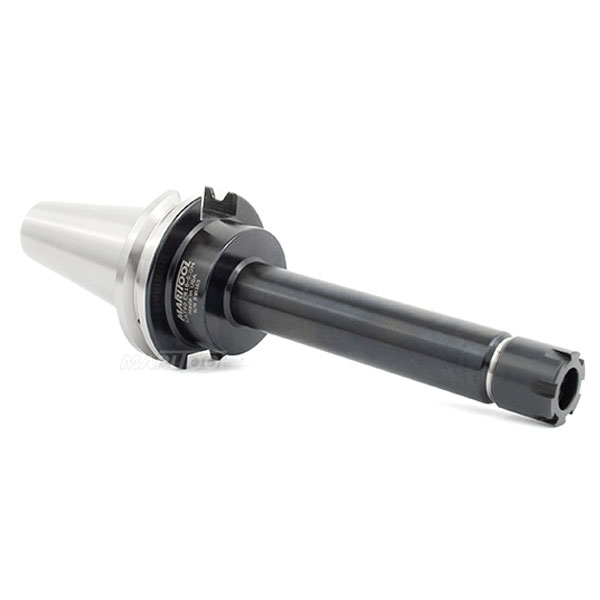

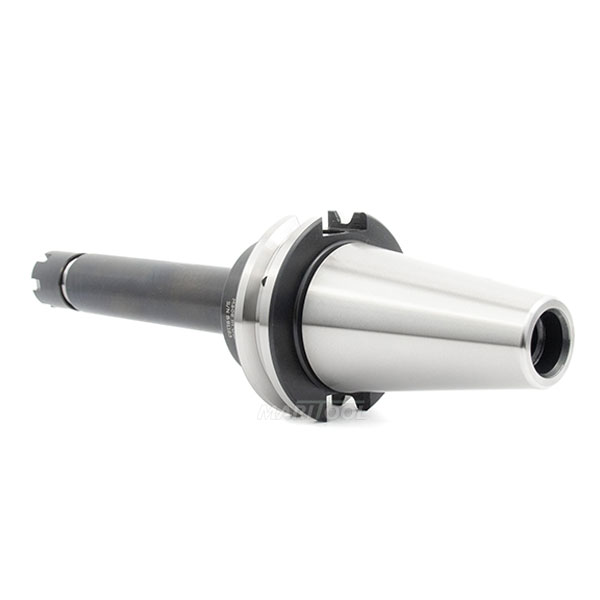

CAT40 ER16 6.0 MINI NUT COLLET CHUCK TOOL HOLDER
$173.65
Item No.
CAT40-ER16-6.0M
Price:
$173.65
Shipping:
Contact us
Quantity:
Add to Cart
Please
contact us
for a Shipping Estimate
Available Downloads for CAT40-ER16-6.0M
Product Info
View complete catalog page
Collet Chuck accepts all ER16 collets
Works on all CAT 40 machines
Threaded for
stop screw type 1
(not included)
All critical surfaces precision ground
Made from alloy steel hardened to 54 - 56rc
Balanced to G2.5 at 20,000 rpms
Gage length is 6.0 inches
Concentricity is less than .0002 at collet face
Rear thread for pull stud is 5/8—11

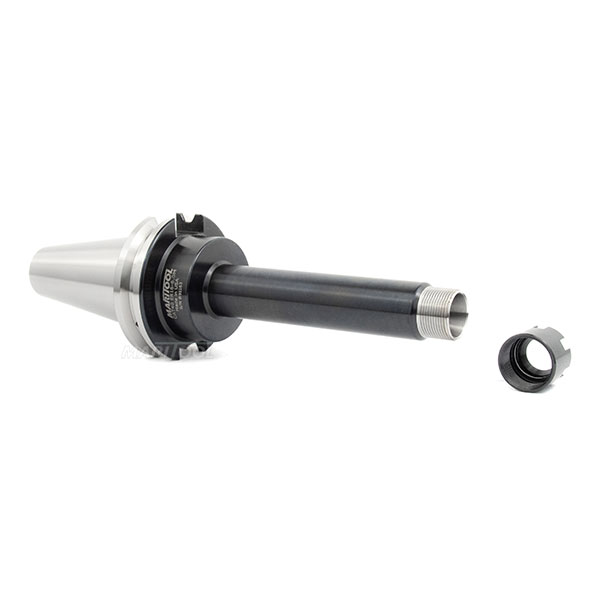

Collet nut is included
Mini Collet Nut is slimmer than standard collet nut
ER16 Mini Nut has an id thread of 19mm X 1.0 pitch. Outside diameter is .866 inches (22mm)
Must use
ER16M collet wrench
Coolant through capability
MariTool Part# is CAT40-ER16-6.0M
Product Specifications
Balance Spec:
G2.5 @ 20,000 rpms
Collet Grip Range:
.020-.4375 inches
Collet Nut:
ER16M
Collet Size:
ER 16
Concentricity:
< .0002 at Collet Face
Coolant Thru:
Yes
Finish:
Black Oxide
Gage Length:
6.0
Material:
Hardened Alloy Steel
Rear Thread:
5/8-11
Taper:
CAT40
