CAT40 TG100 3.0 DUAL CONTACT COLLET CHUCK TOOL HOLDER $165.85

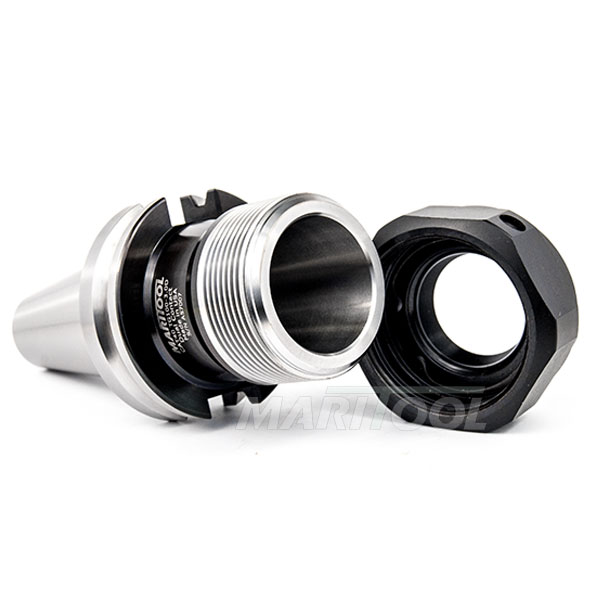

CAT40 TG100 3.0 DUAL CONTACT COLLET CHUCK TOOL HOLDER
Click to enlarge

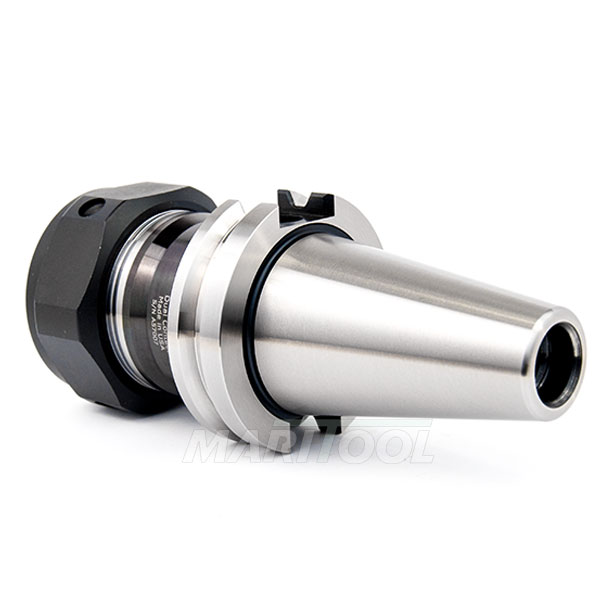

CAT40 TG100 3.0 DUAL CONTACT COLLET CHUCK TOOL HOLDER

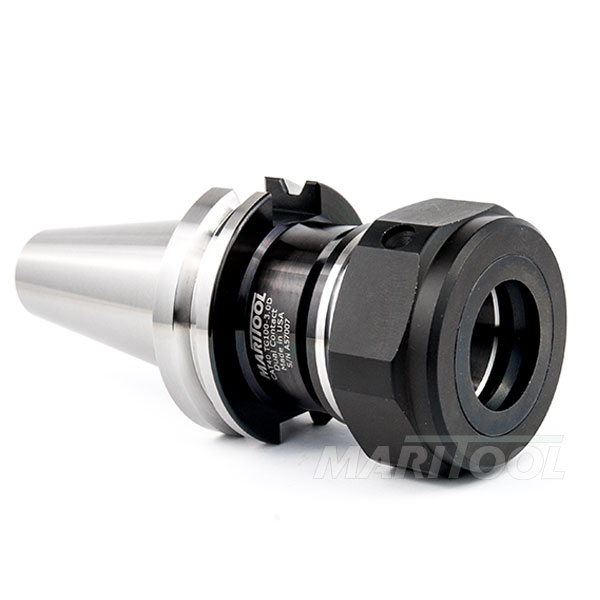

Click to enlarge 		CAT40 TG100 3.0 DUAL CONTACT COLLET CHUCK TOOL HOLDER
Click to enlarge

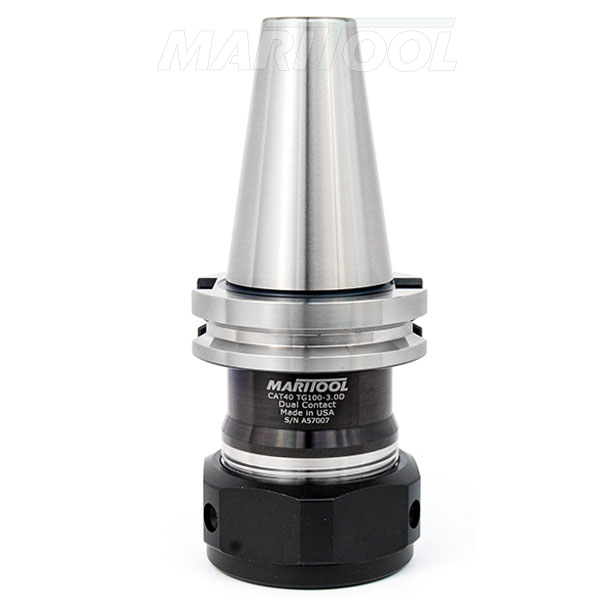

CAT40 TG100 3.0 DUAL CONTACT COLLET CHUCK TOOL HOLDER
Click to enlarge
Item No. CAT40-TG100-3.0D
Price: $165.85
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-TG100-3.0D
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Collet Chuck accepts all TG100 collets
  • Works on all CAT 40 machines with Dual Contact Spindles
  • Compatible with BIG-PLUS® spindles
  • Threaded for stop screw type 2 (not included)
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 - 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.00 inches
  • Collet nut is included
  • Coolant thru capability
  • Concentricity is less than .0001 at collet face
  • Rear thread for pull stud is 5/8—11
  • MariTool Part# is CAT40-TG100-3.0D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Collet Size:  TG100
Concentricity:  < .0001 at Collet Face
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  3.0
Material:  Hardened Alloy Steel
Rear Thread:  5/8-11
Taper:  CAT40 DUAL CONTACT
