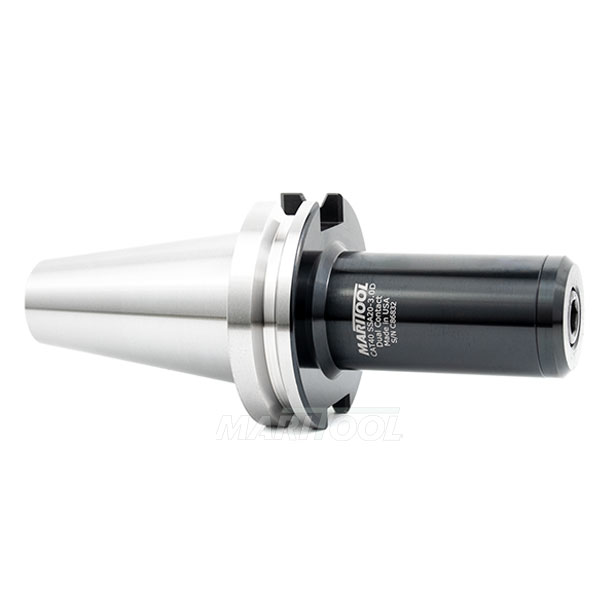

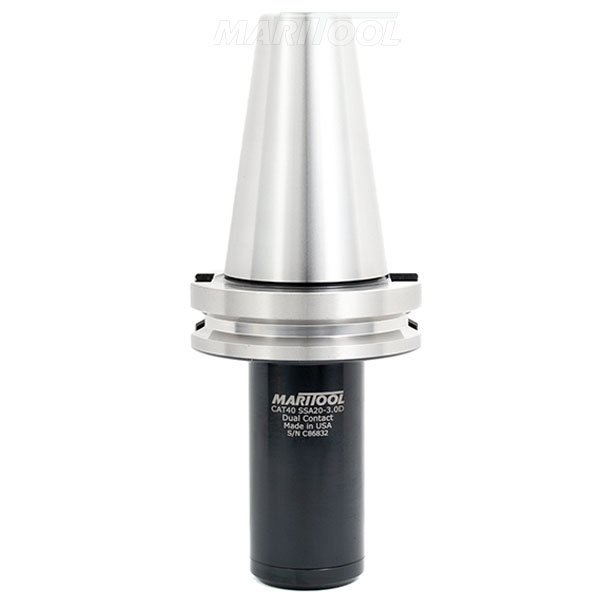

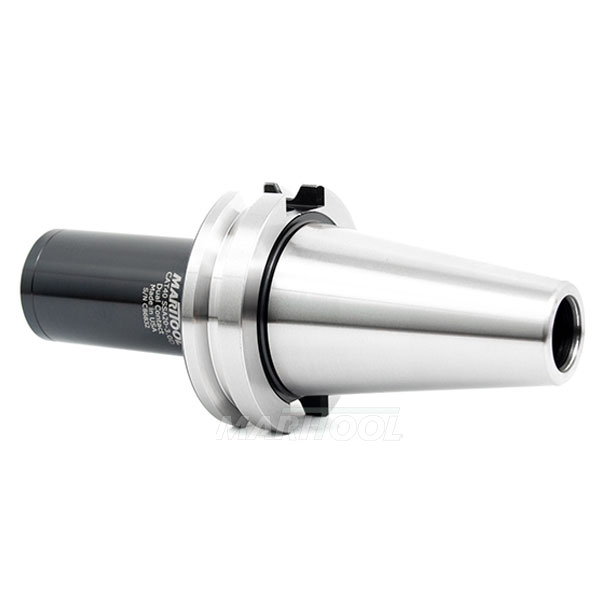

- Keyless slitting saw holder for saws with 20mm arbor hole
- Works on all CAT40 machines with Dual Contact spindles
- Compatible with BIG-PLUS® spindles
- Concentricity is less than .0001 at arbor hole
- Balanced to G2.5 @20,000 rpms
- Gage length is 3.0 inches

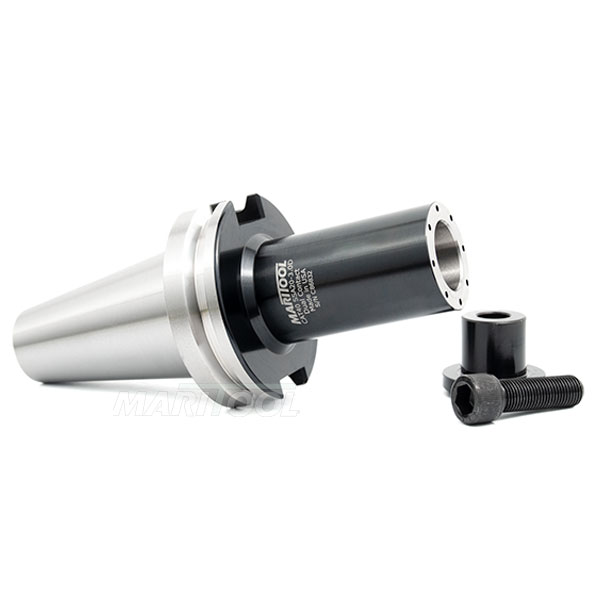

- End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
- Screw for cap is 3/8-24 X 1-1/4 long
- Saw cap is 1/4" thick and 20mm diameter boss is .700 long
- Nose dia and saw cap is 1.250 Inches diameter
- Replacement cap is available SSA20mm-cap
- Rear thread for pull stud is 5/8-11
- MariTool Part# is CAT40-SSA20-3.0D
*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
