CAT40 Dual Contact Slitting Saw Arbor .500-3.5 $222.35

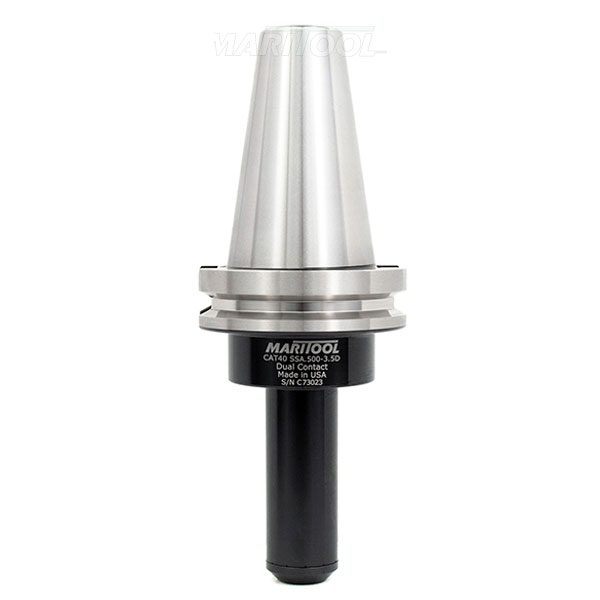

CAT40 Dual Contact Slitting Saw Arbor .500-3.5
Click to enlarge

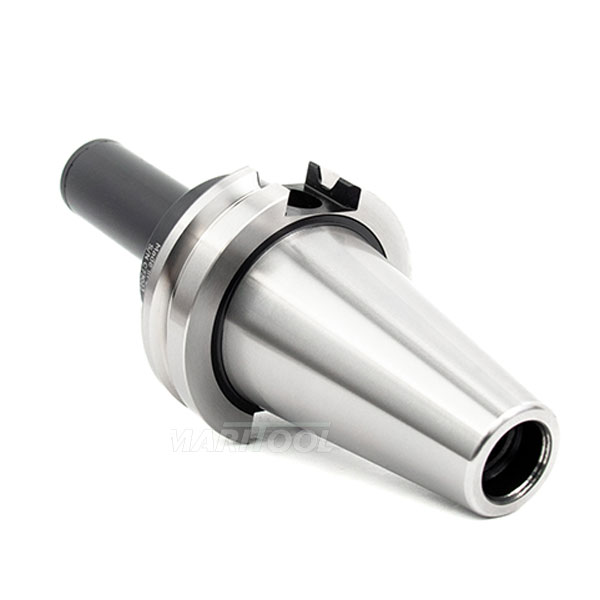

CAT40 Dual Contact Slitting Saw Arbor .500-3.5

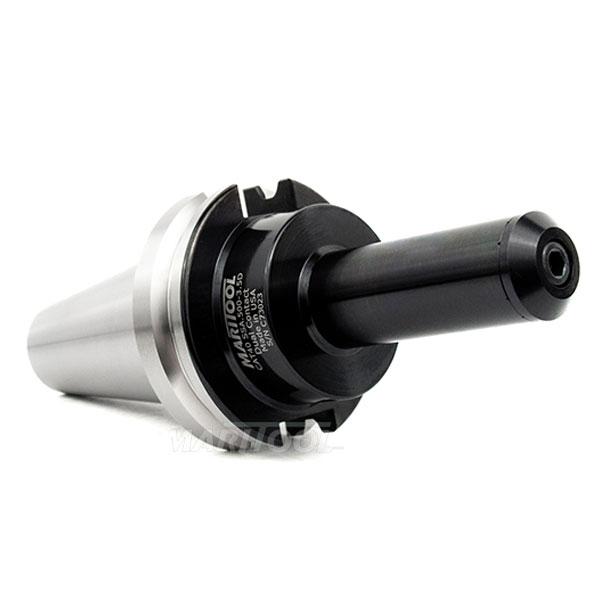

Click to enlarge 		CAT40 Dual Contact Slitting Saw Arbor .500-3.5
Click to enlarge
CAT40 Dual Contact Slitting Saw Arbor .500-3.5
Click to enlarge
Item No. CAT40-SSA.500-3.5D
Price: $222.35
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-SSA.500-3.5D
PDF file  STP file  DXF file  DWG file
Product Info

View complete catalog page

  • Keyless slitting saw holder, for saws with .500" arbor hole
  • Works on all CAT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • Concentricity is less than .0001 at arbor hole
  • Balanced to G2.5 @20,000 rpms
  • Gage length is 3.5 inches

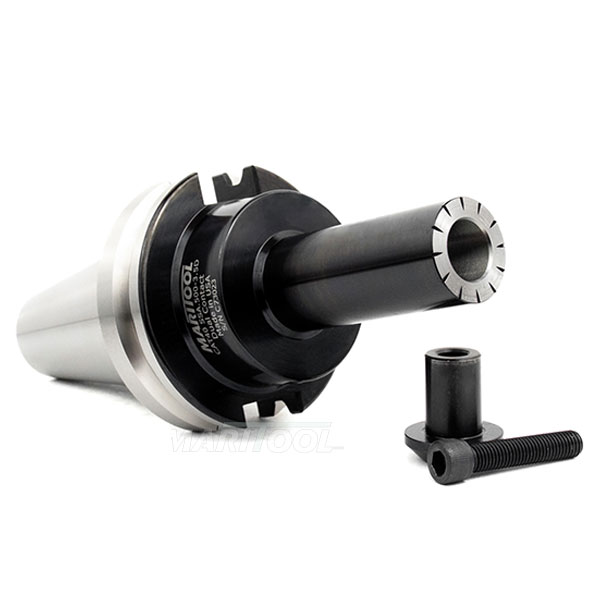

  • End of saw holder has small holes or grooves, this is for optionally applying loc tite to secure saw to holder. Cap must still be used and torqued
  • Screw for cap is 1/4-28 X 1-1/4 long
  • Saw cap is 1/4 thick and .4999 diameter boss is .700 long
  • Nose dia and saw cap is .875 Inches diameter
  • Replacement cap is available SSA.500-cap
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-SSA.500-3.5D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Arbor Diameter:  .500
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  < .0001 at Arbor Hole
Finish:  Black Oxide
Gage Length:  3.5
Material:  Hardened Alloy Steel
Nose Diameter:  .875
Rear Thread:  5/8-11
Taper:  CAT40 DUAL CONTACT
