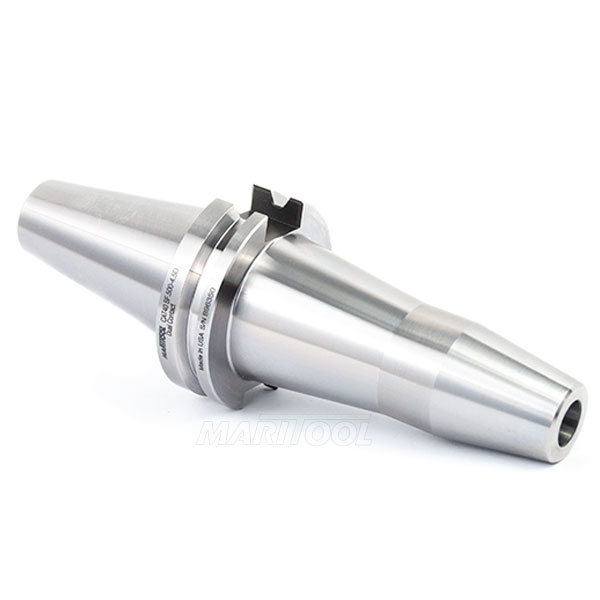

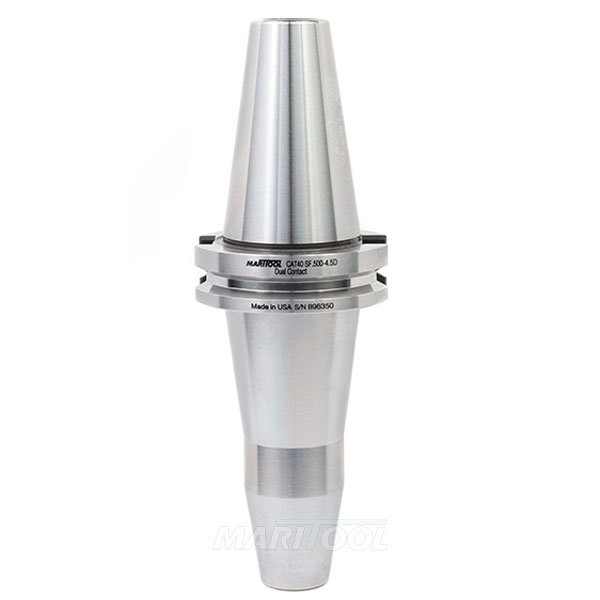

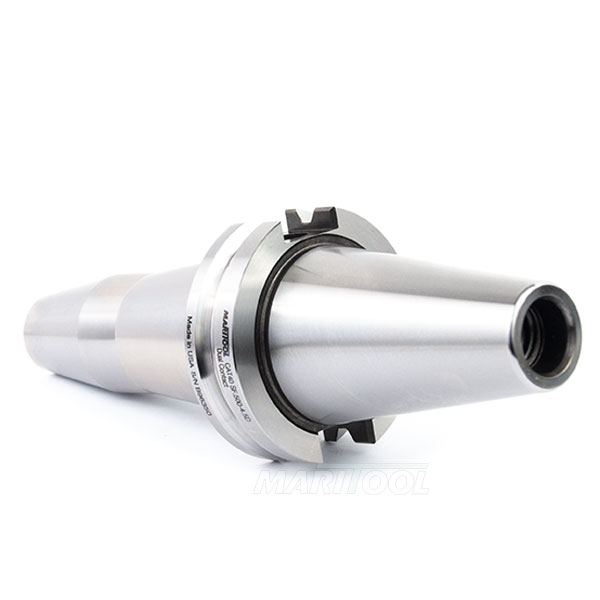

CAT40 1/2 DUAL CONTACT TAPERED NOSE SHRINK FIT TOOL HOLDER .500-4.5 $227.25
CAT40 1/2 DUAL CONTACT TAPERED NOSE SHRINK FIT TOOL HOLDER .500-4.5
Click to enlarge

CAT40 1/2 DUAL CONTACT TAPERED NOSE SHRINK FIT TOOL HOLDER .500-4.5
Click to enlarge 		CAT40 1/2 DUAL CONTACT TAPERED NOSE SHRINK FIT TOOL HOLDER .500-4.5
Click to enlarge
Item No. CAT40-SF.500-4.5DT
Price: $227.25
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-SF.500-4.5DT
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Works on all CAT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • This Shrink Fit Tool Holder accepts all .500 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from H-13 alloy steel hardened to 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 4.5 inches
  • Nose diameter is 1.3 Inches
  • Max socket depth is unrestricted
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0002
  • Rear thread for pull stud is 5/8-11
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is CAT40-SF.500-4.5DT

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0002
Gage Length:  4.5 Tapered
Material:  Hardened H-13 Alloy Steel
Nose Diameter:  1.3
Rear Thread:  5/8-11
Shank Size:  .500
Taper:  CAT40 DUAL CONTACT
