CAT40 1/4 DUAL CONTACT SHRINK FIT TOOL HOLDER .250-3.5 $225.35

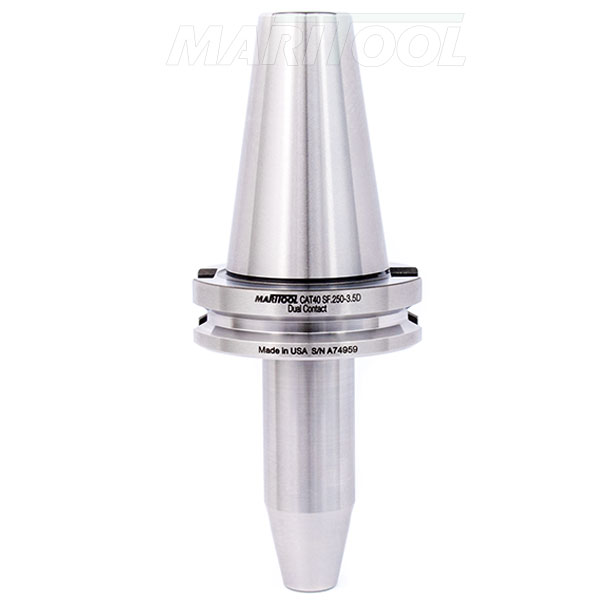

CAT40 1/4 DUAL CONTACT SHRINK FIT TOOL HOLDER .250-3.5
Click to enlarge

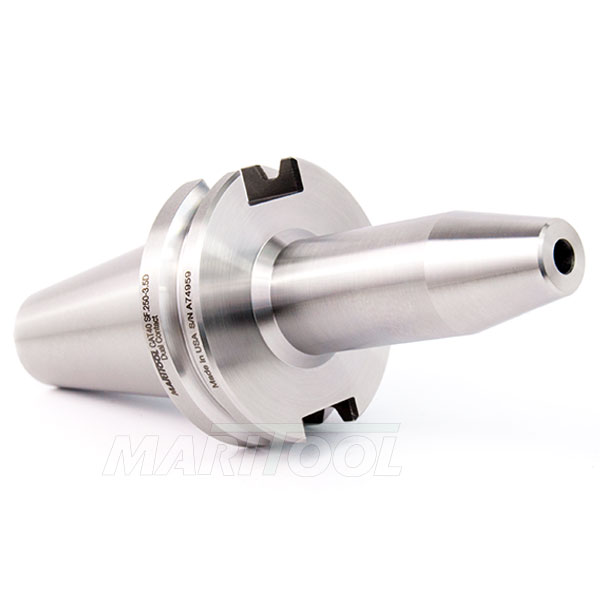

CAT40 1/4 DUAL CONTACT SHRINK FIT TOOL HOLDER .250-3.5

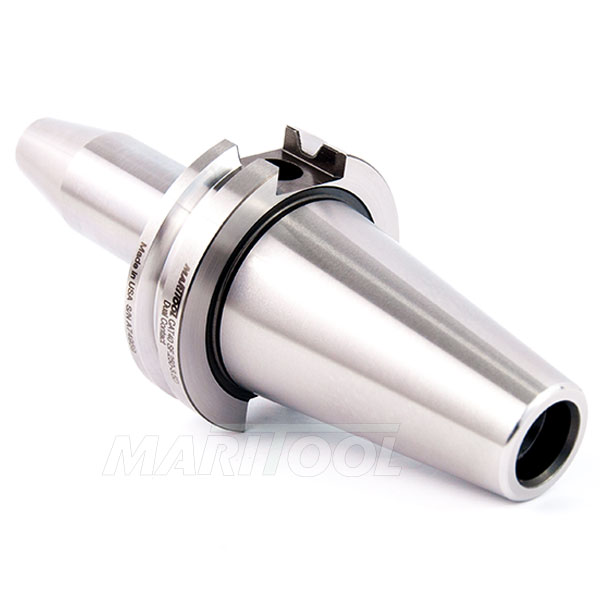

Click to enlarge 		CAT40 1/4 DUAL CONTACT SHRINK FIT TOOL HOLDER .250-3.5
Click to enlarge
Item No. CAT40-SF.250-3.5D
Price: $225.35
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-SF.250-3.5D
DWG file  DXF file  STP file  PDF file
Product Info

View complete catalog page

  • Works on all CAT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • This Shrink Fit Tool Holder accepts all .250 shank tooling
  • All critical tool holder surfaces precision ground
  • Made from H-13 alloy steel hardened to 56rc
  • Balanced to G2.5 at 20,000 rpms
  • Gage length is 3.5 inches
  • Nose diameter is 1.0 Inches
  • Max socket depth is unrestricted
  • Tool holder is coolant thru compatible
  • Concentricity is less than .0001
  • Rear thread for pull stud is 5/8-11
  • Read more about Shrink Fit Tool Holders Here
  • MariTool Part# is CAT40-SF.250-3.5D

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  .0001
Gage Length:  3.5
Material:  Hardened H-13 Alloy Steel
Nose Diameter:  1.0
Rear Thread:  5/8-11
Shank Size:  .250
Taper:  CAT40 DUAL CONTACT
