CAT40 1.0-2.0 SLIM NOSE DUAL CONTACT FACE MILL TOOL HOLDER $170.50

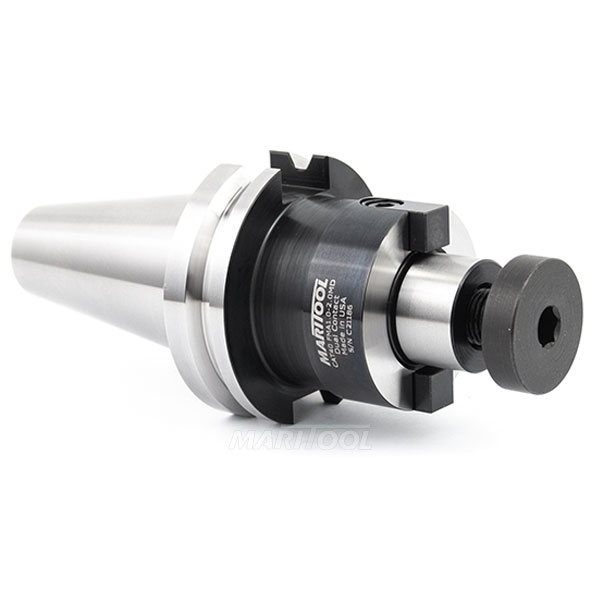

CAT40 1.0-2.0 SLIM NOSE DUAL CONTACT FACE MILL TOOL HOLDER
Click to enlarge

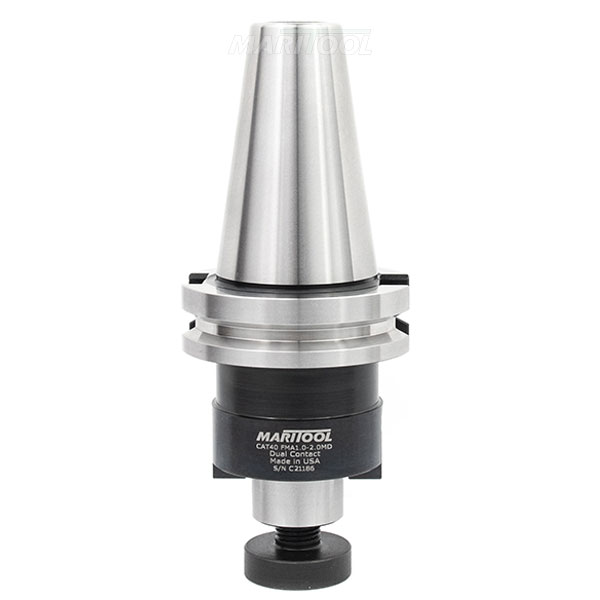

CAT40 1.0-2.0 SLIM NOSE DUAL CONTACT FACE MILL TOOL HOLDER

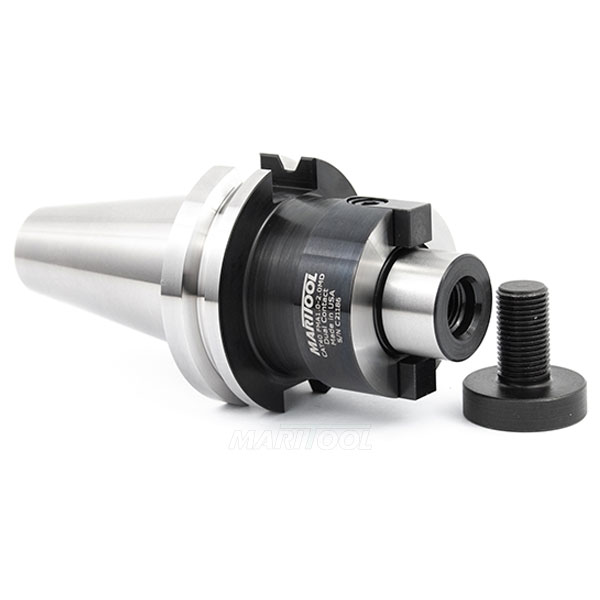

Click to enlarge 		CAT40 1.0-2.0 SLIM NOSE DUAL CONTACT FACE MILL TOOL HOLDER
Click to enlarge

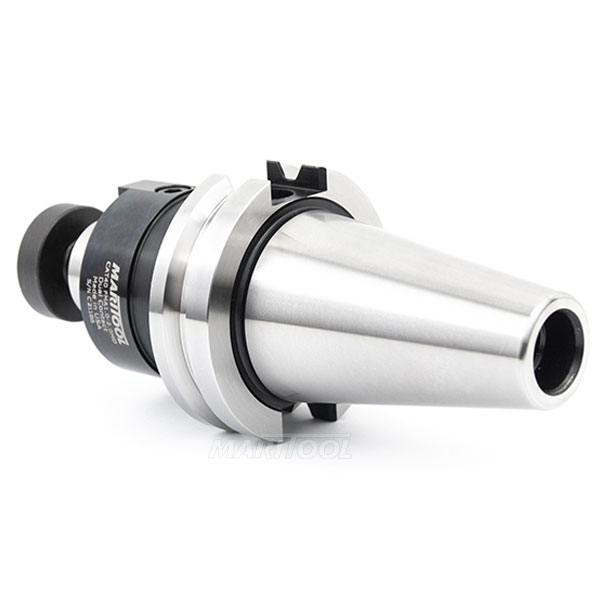

CAT40 1.0-2.0 SLIM NOSE DUAL CONTACT FACE MILL TOOL HOLDER
Click to enlarge
Item No. CAT40-FMA1.0-2.0MD
Price: $170.50
Shipping: In Stock - Ships Same Day *
Quantity:

* Same Day Shipping is only available on orders placed Monday - Friday before 4 P.M. Central Time.
Available Downloads for CAT40-FMA1.0-2.0MD
DWG file  DXF file  PDF file  STP file
Product Info

View complete catalog page

  • Works on all CAT40 machines with Dual Contact spindles
  • Compatible with BIG-PLUS® spindles
  • Arbor diameter is 1.0 inches
  • Made from alloy steel hardened to 54 - 56rc
  • Concentricity is less than .0002 at face and arbor
  • All critical tool holder surfaces precision ground
  • Tool holder is coolant thru (coolant thru arbor screw not supplied). Read more here Shell Mill Holder FAQ
  • Gage length is 2.0 inches
  • Nose diameter is 1.85 Inches
  • Included lock screw is 1/4-28 x 3/4 SHCS
  • Width of removable drive keys are .370 inches
  • Rear thread for pull stud is 5/8-11
  • MariTool Part# is CAT40-FMA1.0-2.0MD

*BIG-PLUS® is a trademark of Daishowa Seiki Kabushiki Kaisha; Big Daishowa Seiki Co., Ltd., Corp.
Compatible with BIG-PLUS® spindles, but not licensed.
Product Specifications
Arbor Diameter:  1.0
Balance Spec:  G2.5 @ 20,000 rpms
Concentricity:  < .0002
Coolant Thru:  Yes
Finish:  Black Oxide
Gage Length:  2.0
Material:  Hardened Alloy Steel
Nose Diameter:  1.85
Rear Thread:  5/8-11
Taper:  CAT40 DUAL CONTACT
